Godox KNOWLED MS60R Instruction Manual page 59

NP-F Battery Adapter Plate MS60NPA
1.Important Note: Please make sure the load capacity of the separately purchased battery is
no less than 70W, so that the fixture operates normally in high brightness mode. Or you can
reduce the brightness output of the fixture to reduce the battery load and avoid triggering
the automatic shutdown due to overloading.

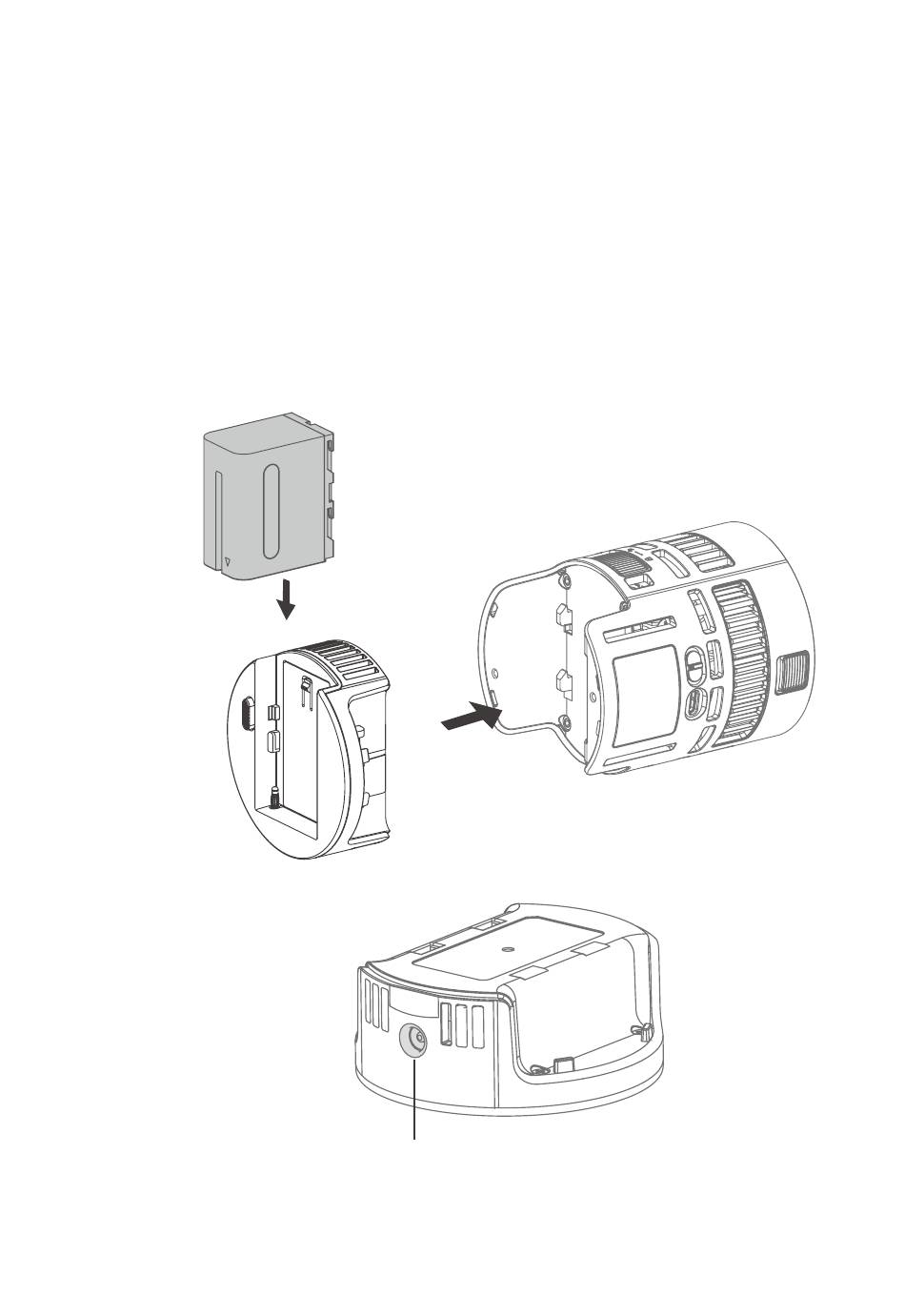

2. Align the light body with the metal contacts at both ends of the plate, insert the plate into
the slot and press it down, the battery disassemble pusher will automatically lock with a
"click", and the plate is installed.
3. Press and hold the battery disassemble pusher, then pull the plate out to disassemble it.
4. The DC port on the adapter plate can be connected to 14.8V V-mount battery through
optional adapter cable, which enables v-mount battery power supply.
②
①
DC port
58
