Godox KNOWLED MS60R Instruction Manual page 57

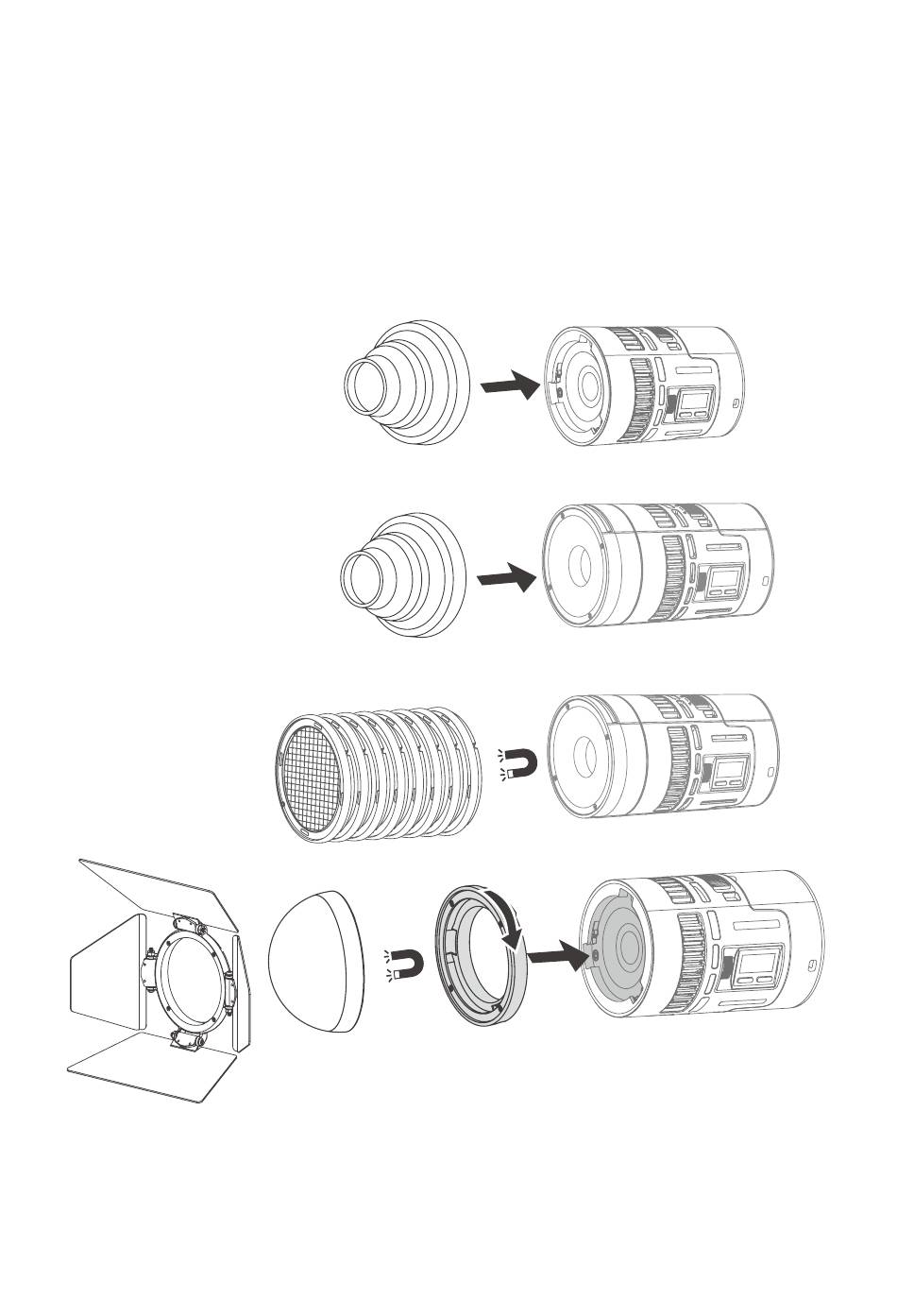

Magnet Kit MK
1. The snoot and slides need to be collocated with the lens reflector. The snoot can also be
inserted onto the locking pusher of bare light.
2. The four-way barndoor and hemispherical diffuser need to be collocated with the
magnetic adapter ring.
3. Align the magnetic adapter ring with the mount on the light head, insert and rotate
clockwise until the locking pusher is automatically locked, then the magnetic adapter ring is
properly installed.
②
①
③
56
