Godox KNOWLED MS60R Instruction Manual page 58

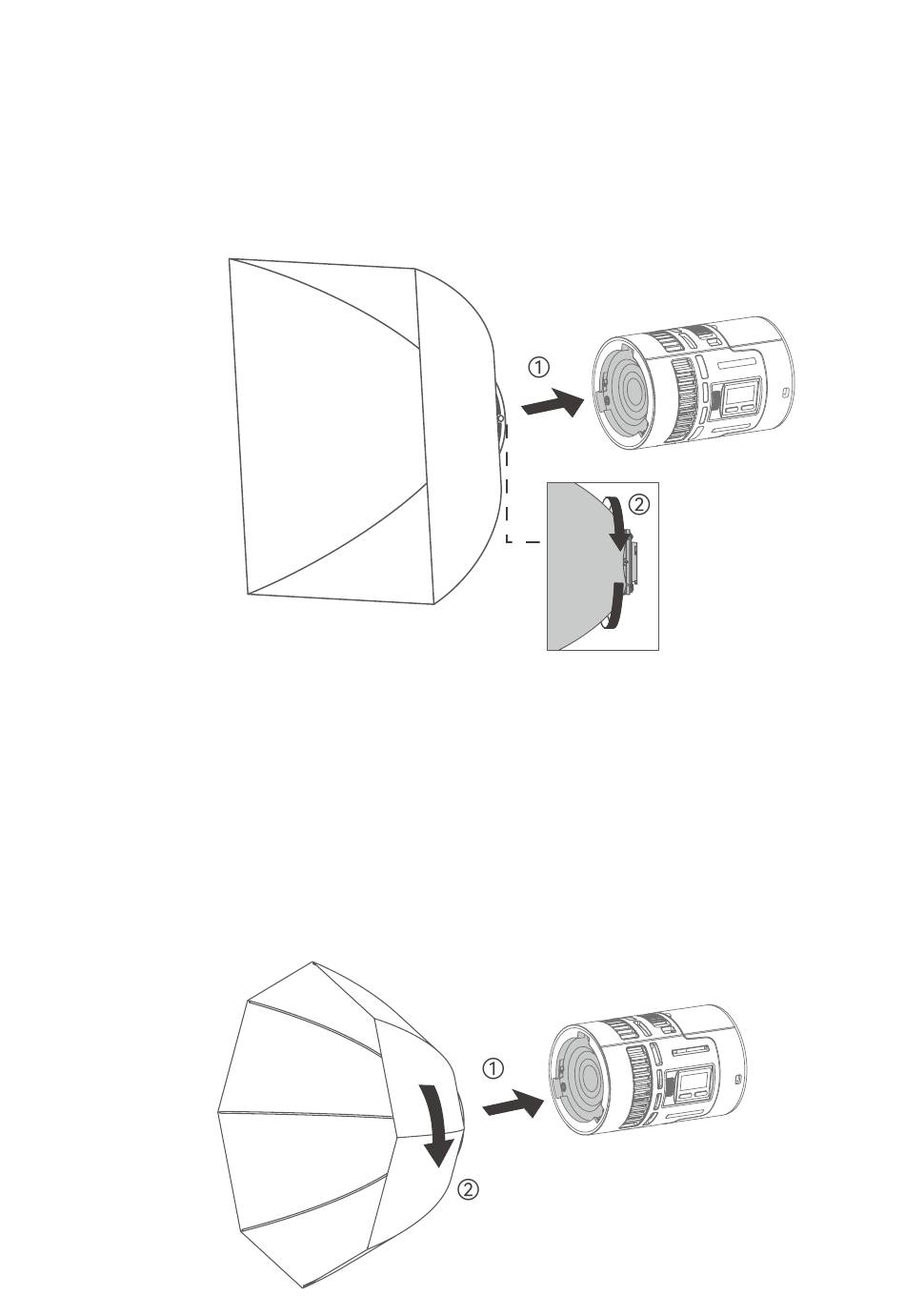

Rectangular Softbox SS11
1. Install the rectangular softbox SS11 on the mount adapter first, the inner sides have
velcros to paste on the outer white cloth and grid.
2. Align the assembled SS11 with the light head mount and insert it, rotate clockwise to
complete the installation.
3. To disassemble, press and hold the mount locking pusher, and rotate SS11 anticlockwise.
Parabolic Softbox SP1
1. Install the parabolic softbox SP1 on the mount adapter first, the inner sides have velcros
to paste on the outer white cloth and grid.
2. Align the assembled SP1 with the light head mount and insert it, rotate clockwise to
complete the installation.
3. To disassemble, press and hold the mount locking pusher, and rotate SP1 anticlockwise.
57
