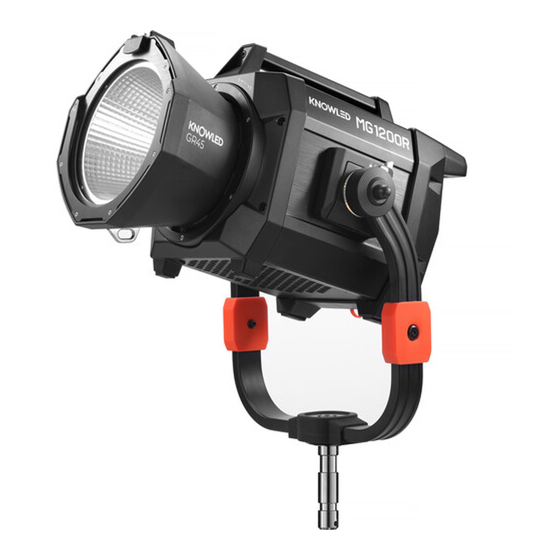

Godox KNOWLED MG1200R Instruction Manual

Godox KNOWLED MG1200R Instruction Manual

Full-color led light

Advertisement

Quick Links

说明书版本: V1.1
控制器固件版本: V1.00
Wechat
Official Account
神牛微信公众号
深圳市神牛摄影器材有限公司
地址:深圳市宝安区福海街道塘尾社区耀川工业园厂房 2 栋
电话:0755-29609320(8062) 传真:0755-25723423 邮箱:godox@godox. com
GODOX Photo Equipment Co., Ltd.
Add.: Building 2, Yaochuan Industrial ZoneTangwei Community, Fuhai Street, Bao'an District, Shenzhen
518103, China
Tel: +86-755-29609320(8062)
www.godox.com
Made in China | 705-MG120R-06
Instruction Manual Version: V1.1
Controller Firmware Version: V1.00
Fax: +86-755-25723423
E-mail: godox@godox.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KNOWLED MG1200R and is the answer not in the manual?

Questions and answers

Summary of Contents for Godox KNOWLED MG1200R

  • Page 1 Controller Firmware Version: V1.00 Wechat Official Account 神牛微信公众号 深圳市神牛摄影器材有限公司 地址:深圳市宝安区福海街道塘尾社区耀川工业园厂房 2 栋 电话:0755-29609320(8062) 传真:0755-25723423 邮箱:godox@godox. com GODOX Photo Equipment Co., Ltd. Add.: Building 2, Yaochuan Industrial ZoneTangwei Community, Fuhai Street, Bao'an District, Shenzhen 518103, China Tel: +86-755-29609320(8062) Fax: +86-755-25723423 E-mail: godox@godox.com www.godox.com...
  • Page 2 诺力全彩 LED 影视灯 KNOWLED Full-color LED Light 使用手册 Instruction Manual...
  • Page 3 重要的安全说明及注意事项 首先作为最基本原则:本产品为专业灯光布景设备,应由专业灯光师使用或在专业人士指导 下使用。使用时必须始终遵循基本的安全预防措施,具体安全预防措施如下: 使用前必须阅读并理解产品说明书。 专业灯具,禁止儿童使用。当儿童靠近时,家长或陪护人必须密切监督,以免儿童因碰 撞灯具或私用灯具造成人身伤害。 本灯具并非普通照明灯具,不可用于普通照明,任何有过眼部损伤或眼部敏感的人群均 应避免使用本灯具。 灯具点亮时,必须小心使用,禁止接触高温部件,如 LED 灯珠,以免造成灼伤。 灯具点亮时,任何情况下均禁止直视灯珠。应该在专业灯光师指导下使用强光,任何情 况下避免长时间处于强光环境,如引起眼睛不适,请及时关闭灯具,暂停使用,请及时 就医。 倘灯珠损坏或因热变形,应停止使用,并及时联系制造商、服务代理商或合格的维修人 员更换灯珠,以免发生意外。 本产品仅适用于 -20℃ ~45℃工作温度环境下使用。 请勿使用损坏的设备或设备配件,待专业维修人员检查维修,确认设备正常方可使用。 在使用过程中,如果本产品由于跌落、受到挤压或遭受强烈冲击而造成外壳破裂的,请 勿继续使用,以免因接触到内部电子元件而受到电击伤害。 如需要延长线,请使用额定电流≥该设备额定电流的延长线。如延长线额定电流小于该 设备,可能导致过热。 部分产品电源线较长,请合理放置电源线,使其处于安全位置。避免电源线接触过热物 体表面、避免放置不当导致拉扯损坏或绊倒现场人员。请使用本厂原装电源线,如使用 非本厂电源线导致产品损坏,概不在本厂维修范围内。 在清洁和维修之前,请务必从电源插座上拔下该设备插头。不使用时,禁止拉扯电源线 以将设备插头从电源插座中拔出。正常断电,应是用手抓住该设备插头两端,将插头从 电源插座中拔出。此设备需连接到接地插座中。 请勿私自拆卸产品,如产品出现故障,须由本公司或授权的维修人员进行检查维修。 存放本设备之前,请确保设备已完全冷却。存放时,将电源线从设备上拔出。设备应放 置于设备便携包内或通风干燥处。 请勿将设备放置在酒精、汽油等易燃易挥发的溶剂附近。 本厂不推荐的产品附件,请勿使用,以免导致火灾、触电或人身伤害。 清洁本设备时,请勿用湿布擦拭,请用干布,软布擦拭设备污垢。 设备使用前,请注意将保护罩取下。 本产品已通过 ROHS,CE 和 FCC 认证,请参考相关国家标准使用和操作。 安全说明依据本厂严格测试制定,设备设计和规格如有变更,恕不另行通知。客户可以...
  • Page 4 上神牛官网查看最新的电子版说明,了解产品最新资讯。 部分产品内置锂电池。此类产品请使用专用的充电器进行充电,并且按正确的操作说明, 在规定的电压、温度范围内使用。 部分产品使用电池供电。此类产品请勿使用说明书中未指定的任何电池、电源或附件。 请将电池和其他附件置于儿童及婴幼儿无法触及之处。如果儿童或婴幼儿吞下电池或附 件,请立刻就医。如果电池漏液、变色、变形、冒烟或发出异味,请立刻将其取出。在 取出过程中请小心,以免烫伤。如果继续使用,可能会引起火灾、触电或皮肤烫伤。请 勿使用任何变形或改造过的电池。请勿拆卸或改造本产品或电池。请勿加热电池或焊接 电池。请勿让电池与火或水接触。请勿让电池受到强烈的外力撞击。请勿将电池的正负 端错误插入,或将新旧电池或不同类型的电池混合使用。 —年保修期,消耗品电池、适配器、电源线等配件不在此保修范围内。 经发现,擅自检修设备,将取消一年保修期,维修需要收取相关费用。 对于不规范操作引起的机器故障不在保修范围内。 保存这些说明 请勿直视光源...
  • Page 5 前言 感谢您购买神牛产品。 神牛全新推出全彩 LED 影视灯 MG1200R,强劲功率,输入高达 1600W,最高输出可达 1500W;支持 100V-240V 供电,可在全球范围内使用;全彩 RGBW 模式可让不同光色随着 主题变化而打造相应氛围,拥有超高亮度、灯体与控制器分离、千分级亮度调节、IP54 级防 水防尘、4 种调光曲线、1800K-10000K 色温、多种无线控制等诸多特性;适用于大型摄影棚、 影视基地、演播室、户外外景、大型实地场等拍摄场景。 主要特点 4 种调光曲线:线性、S 曲线、指数、对数。 ● 1500W 超强输出功率,真正的千分级调节,能从 100%完美平滑调光至 0%。 ● 宽广色温,调节范围:1800K-10000K。 ● 多种智能控制方式,DMX512 控台控制 /LumenRadio CRMX 控制 / 蓝牙 APP 控制 / 以太网 ●...
  • Page 6 部件名称 灯体 1. 提手 1 2. 提手 2 3. DC 输入接口 4. U 型支架 5. 快装装置 6. 卡口推制 7. 方向调节把手 8. 挂线装置 9. ACC 接口 10. 神牛 G 卡口...
  • Page 7 控制器 1. 开关按键 2. 离机遥控器接口 3. DC 输出接口 4. 彩屏 5. PRESET 按键 6. LOCK 按键 7. MENU 按键 8. MODE 按键 9. 调节旋钮 10. LED 状态灯 PRESET LOCK MENU MODE 11. DMX OUT 接口 12. DMX IN 接口 13. USB-A 接口 14.
  • Page 8 MG1200R 物料清单 控制器 ×1 保护盖 ×1 灯体 ×1 反光罩 GR45 ×1 控制器固定件 ×1 U 架 ×1 说明书 ×1 DMX 模式表 ×1 绑线绳 ×1 安全绳 ×1 直流电源线 ×1 交流电源线 ×1...
  • Page 9 MG1200R K1 物料清单 控制器 ×1 保护盖 ×1 灯体 ×1 反光罩 GR45 ×1 控制器固定件 ×1 U 架 ×1 说明书 ×1 DMX 模式表 ×1 绑线绳 ×1 安全绳 ×1 直流电源线 ×1 交流电源线 ×1...
  • Page 10 收纳包 ×1 MG1200R K2 物料清单 灯体 ×1 控制器 ×1 保护盖 ×1...
  • Page 11 反光罩 GR45 ×1 控制器固定件 ×1 U 架 ×1 说明书 ×1 DMX 模式表 ×1 绑线绳 ×1 安全绳 ×1 直流电源线 ×1 交流电源线 ×1 收纳箱 ×1...
  • Page 12 MG1200R K3 物料清单 控制器 ×1 保护盖 ×1 灯体 ×1 反光罩 GR45 ×1 控制器固定件 ×1 U 架 ×1 说明书 ×1 DMX 模式表 ×1 绑线绳 ×1 安全绳 ×1 直流电源线 ×1 交流电源线 ×1...
  • Page 13 航空箱 ×1 温馨提示: 说明书中线图均为示意图, 仅供参考。 由于产品不断更新与升级, 产品实物与线图可能存在差异, 请 以实物为准。 可另购附件 反光罩 GR15、 反光罩 GR30、 反光罩 GR60、 菲涅尔镜头 GF14...
  • Page 14 安装与拆卸 1. 安装 U 型支架 1.1 将灯具放于平面上, 散热面朝上。 1.2 按住快装装置按钮, 拨开扳手。 1.3 将 U 型支架两端对准快装装置插入, 接 1.4 将灯具安装在滚轮灯架上, 锁紧滚轮灯 着将两边扳手锁紧, 听到“咔”一声即表示安装 架的固定旋钮。 完毕。 注: 滚轮灯架不包含在标配内, 需另购。 该灯具重量大, 安装需小心谨慎, 以免造成人身伤害。...
  • Page 15 2. 拆卸 U 型支架 2.1 握住灯具的 U 型架, 将灯具从滚轮 2.2 按 住快装装 置 按钮, 拨开扳手, 即 灯架上取下来放在平面上。 可将 U 型支架取出。 3. 安装 / 拆卸灯头保护罩 3.1 将灯头保护罩对准灯头卡口, 顺时针旋 3.2 按住卡口推制, 逆时针旋转即可取 转即可安装完毕。 下灯头保护罩。...
  • Page 16 4. 安装 / 拆卸反光罩 4.1 将反光罩对准灯头卡口插入后顺时针旋转 4.2 按住卡口推制, 逆时针旋转即可取下灯头反 即可安装完毕。 光罩。 5. 将控制器安装到灯架上 ② ③ 将控制器固定件把手拧松后插入灯架杆, 顺时针旋转把手锁定固定件, 最后将控制器快装装置对准固 定件卡槽插入即可。...
  • Page 17 6. 连接 DMX 512 控制台 DMX512 注: 仅展示连接 DMX 512 控制台方式, 控制台需另购。 连接多台 供电 AC 100-240V 严禁通电时插拔电源线或连接线, 以免造成意外。...
  • Page 18 开关机 接通电源, 短按控制器开关按键, 实现开机或关 机。 PRESET LOCK MENU MODE 模式界面 MODE MODE 旋转调节旋钮可任意选择图示中的 6 种模式, 选中其中一个模式, 短按调节旋钮可进入该模 式进行具体设置。 CCT 模式 短按 MODE 按键进入模式选择, 选中 CCT 后短 按调节旋钮进入该模式, 可选亮度 / 色温 / 绿品 10000 GM。 通过短按并旋转调节旋钮设置参数值, 顺 时针旋转递增参数值, 逆时针旋转递减参数值。 亮度范围: 0%~ 100% 色温范围:...
  • Page 19 HSI 模式 短按 MODE 按键进入模式选择, 选中 HSI 后短 按调节旋钮进入该模式, 可选亮度 / 色相 / 饱和 度。通 过短按并旋转调节旋钮设置参数值, 顺 时针旋转递增参数值, 逆时针旋转递减参数值。 亮度范围: 0%~ 100% 色相范围: 0°~ 360° 饱和度范围: 0% ~ 100% RGBW 模式 短按 MODE 按键进入模式选择, 选中 RGBW 后 短按调节旋钮进入该模式, 可选亮度 / 红光 / 绿 光...
  • Page 20 GEL 模式 短按 MODE 按键进入模式选择, 选中 GEL 后短 按调节旋钮进入该模式, 可选亮度 / 色片类型 / L-GEL 色片组类型 / 颜色选择 / 色温 / 色相 / 饱和度。 通过短按并旋转调节旋钮设置参数值, 顺时针 旋转递增参数值, 逆时针旋转递减参数值。 5600K 亮度范围: 0%~ 100% 色片类型: R-GEL / L-GEL 色片组类型 (R-GEL) COR. / CAL. / SPC. / CINE. 色片组类型...
  • Page 21 FX 模式 短按 MODE 按键进入模式选择, 选中 FX 后短按调节旋钮进入该模式, 可选光效有 14 类: 闪光灯 / 雷闪电 / 多云 / 坏灯泡 / 电视机 / 蜡烛 / 火 / 烟花 / 爆炸 / 焊接 / 警车 /SOS/ 彩光循环 / 派对。 通过 短按并旋转调节旋钮设置某个光效的参数值, 顺时针旋转递增参数值, 逆时针旋转递减参数值。 1.
  • Page 22 5. 电视机 此光效模拟电视机或屏幕的光线效果, 常用于营造出一种冷淡、 机械或数字化的氛围。 亮度: 0% -100% (以 0.1%为增量) 开关: 开启 / 关闭 颜色: CCT/HSI 速度: 1-100 6. 蜡烛 此光效模拟蜡烛的光线效果, 常用于营造出一种柔和、 温暖、 闪烁的氛围。 亮度: 0% -100% (以 0.1%为增量) 开关: 开启 / 关闭 速度: 1-100 7. 火 此光效模拟火焰的光线效果, 常用于营造出一种明亮、 热烈、 闪烁氛围。 亮度:...
  • Page 23 10. 焊接 此光效模拟焊接的光线效果, 常用于营造出一种炽热、 机械的氛围。 亮度: 0% -100% (以 0.1%为增量) 开关: 开启 / 关闭 颜色: CCT/HSI 色温 / 色相: 1800K-10000K/0-360° 速度: 1-100 11. 警车 此光效模拟警车灯光的闪烁效果, 常用于营造紧张、 追逐或紧张氛围。 亮度: 0% -100% (以 0.1%为增量) 开关: 开启 / 关闭 颜色: 红 + 蓝、 红、 蓝、 蓝 + 白、 蓝 + 黄、 黄、 红 + 白 + 蓝、 红 + 黄 + 蓝 模式:...
  • Page 24 菜单设置 短按 MENU 按键进入菜单设置, 旋转调节旋钮 选择图示中任意一项, 短按调节旋钮进入该项 的具体设置。 附件识别 平滑度 平滑 V1.00 版本与升级 恢复出厂设置 灯具信息 MG1200R 1.DMX 短 按调节 旋钮 进 入 DMX 设 置界面。旋转 调节 旋钮选择地址 /DMX 模式 /RDM 状态 /DMX 丢 失状态 / 终止开关 / 增强通 道。短 按调节旋钮 进入选项设置,...
  • Page 25 注: 使用 DMX/RDM 控制台控制灯具, 可参照附件《MG1200R DMX 模式表》 。 电子版可登录官网 https://www.godox.com.cn 下载。...
  • Page 26 短按调节旋钮进入 CRMX 设置界面。 旋转调节旋钮选择 CRMX 开关 / 模式。 短按调节旋钮进入选项 设置, 通过旋转调节旋钮完成选项设置。 选项设置完毕, 短按调节按钮可退出选项设置, 短按 MENU 按键返回上一级。 注: 选择发射模式 / 接收模式前, 先进行复位。 CRMX 发射模式界面 CRMX 接收模式界面 扫描二维码即可下载“Godox KNOWLED”app 3. 蓝牙 短按调节旋钮进入蓝牙设置界面。旋转调节旋 钮选择蓝牙开关 / 蓝牙重置, 短按调节旋钮进 入设置, 通过旋转调节旋钮完成设置。 设置完毕, 短按 MENU 按键返回上一级。...
  • Page 27 扫描二维码即可下载 “Godox Light” 手机 app (安卓和苹果系统都可以使用) 。 注: 首个移动设备 (手机或平板电脑) 可直接使用 APP 操控灯体。 更换其他移动设备时, 灯体需进行蓝 牙重置方可正常使用 APP。 注: APP 需升级至 V3,0 以上版本。 4. 以太网 短按调节旋钮进入以太网设置界面。旋转调节 旋钮至网络模式, 短按调节旋钮进入网络模式 DHCP 设 置界面,旋 转 调 节 旋 钮 选 择 DHCP/Art-Net 192 168 1 102 2.x/Art-Net 10.x/ 手动。...
  • Page 28 5.Art-Net&sACN 短按调节旋钮进入 Art-Net & sACN 协议设置。 短按并旋转调节旋钮设置参数值, 如下表所示。 6. 附件识别 附件识别 短按调节旋钮进入附件识别设置界面。 短按调 节旋钮后旋转调节旋钮选择开启 / 关闭。 设置 附件识别 开启 完毕, 短按 MENU 按键返回上一级。 注: 附件识别开启后, 附件未安装到位, 灯具不会亮。...
  • Page 29 7. 调光曲线 短按调节旋钮进入调光曲线设置。旋转调节旋 钮选择线性、 S 曲线、 指数、 对数。 设置完毕, 短 按调节旋钮 / 短按 MENU 按键返回上一级。 指数 对数 8. 平滑度 短按调节旋钮进入平滑度设置。 旋转调节旋钮选择 平滑度 默认、 平滑、 平滑关, 设置完毕, 短按 MENU 按键返 回上一级。 默认 平滑 平滑关 平滑度 备注 默认 亮度数据进行基础平滑处理, 实现平滑调光, 缩短响应时间 平滑度 亮度数据进行平滑处理,...
  • Page 30 10. 色域空间 7. 控制模式 色域空间 短 按 调 节 旋 钮 进 入色 域 空 间 设 置 界 面。短 按 原始色域 调 节 旋 钮 后 依 次 可 选 原 始 色 域、校 色 色 域、 色域空间 Rec.709、 DCI-P3, 旋转并短按调节旋钮选定, 校色色域...
  • Page 31 14. 版本与升级 短按调节旋钮进入版本与升级界面, 在此界面 可查看灯具固件版本及升级固件提示。查看完 毕, 短按 MENU 按键返回上一级。 15. 恢复出厂设置 短按调节旋钮进入恢复出厂设置界面。旋转调 节旋钮选择确定 / 取消, 短按调节旋钮完成设置。 恢复出厂设置 恢复出厂设置, 亮度值自动变为 100%且重启。 16. 灯具信息 灯具信息 短按调节旋钮进入灯具信息, 在此界面可查看 灯具型号、 UID 号、 固件版本、 灯头温度等信息。 MG1200R 查看完毕, 短按 MENU 按键返回上一级。 085500000001 锁定设置 灯具信息 短按 LOCK 按键, 屏幕出现 〈 〉...
  • Page 32 入预设 组设 置, 通 过 旋转 调节旋钮 选择 保存 / 取消, 最后短按调节旋钮完成设置。 设置完毕, 预设 2 短按 MODE 按键回到主界面。 预设 3 预设 4 升级详情 4.7% 1. 在官网 (https://www.godox.com.cn/firmware-continuous-light) 4.7% 下载新固件到 U 盘上。 4.7% 2. 在关机的状态下, 将存有新固件的 U 盘插入 Type-A USB 端口。 4.7% 3. 开机, MG1200R 影视灯自动进入升级界面。 4. 升级完毕自动跳回主界面。...
  • Page 33 照度数据 (常规模式) 色温 测试条件 照度单位 1500 裸灯 29000 9700 4830 2960 带反光罩 2690 GR15(15° ) 带反光罩 13000 4470 2340 1450 1210 GR30(30° ) 1800K 6090 2200 1210 带反光罩 GR45(45° ) 3450 1340 带反光罩 GR60(60° ) 菲涅尔镜头 16300 5520 2570 1360 1510 GF14( 聚光...
  • Page 34 色温 测试条件 照度单位 5440 2280 1340 裸灯 105000 35500 17600 10700 带反光罩 9750 3300 1640 GR15(15° ) 带反光罩 48000 16400 8390 5290 4460 1520 GR30(30° ) 4300K 22100 8040 4300 2760 带反光罩 GR45(45° ) 2050 12400 4760 2680 1800 带反光罩 1150 GR60(60°...
  • Page 35 色温 测试条件 照度单位 4570 1910 1130 裸灯 89400 29900 14800 9040 带反光罩 8300 2780 1370 GR15(15° ) 带反光罩 40400 13800 7010 4450 3760 1280 GR30(30° ) 8500K 18600 6780 3630 2380 带反光罩 GR45(45° ) 1730 10500 4020 2260 1510 带反光罩 GR60(60°...
  • Page 36 色温 测试条件 照度单位 裸灯 带反光罩 14800 4900 2460 1500 GR15(15° ) 1380 带反光罩 6620 2280 1190 GR30(30° ) R( 红光 ) 带反光罩 3090 1120 GR45(45° ) 带反光罩 1780 GR60(60° ) 菲涅尔镜头 8320 2800 1330 GF14( 聚光 ) 菲涅尔镜头 2670 1040 GF14( 泛光...
  • Page 37 照度数据 (高速模式) 色温 测试条件 照度单位 1360 裸灯 23900 8370 4330 2530 带反光罩 2220 GR15(15° ) 11900 4250 2170 1310 带反光罩 1100 GR30(30° ) 1800K 5460 2070 1100 带反光罩 GR45(45° ) 3140 1210 带反光罩 GR60(60° ) 菲涅尔镜头 14600 4960 2470 1320 1360 GF14( 聚光...
  • Page 38 色温 测试条件 照度单位 6300 2680 1500 裸灯 带反光罩 122000 41900 21100 12700 11300 3890 1960 1180 GR15(15° ) 56100 19000 9870 6060 带反光罩 GR30(30° ) 5210 1770 4300K 25300 9330 4970 3140 带反光罩 2350 GR45(45° ) 带反光罩 14500 5540 3010 1950 1350 GR60(60°...
  • Page 39 色温 测试条件 照度单位 4610 1940 1150 裸灯 带反光罩 90400 31000 15600 9370 8400 2880 1450 GR15(15° ) 41100 14100 7200 4580 带反光罩 GR30(30° ) 3820 1310 8500K 18800 6900 3660 2410 带反光罩 1750 GR45(45° ) 带反光罩 10600 4080 2290 1530 GR60(60°...
  • Page 40 色温 测试条件 照度单位 裸灯 带反光罩 14800 4890 2440 1450 GR15(15° ) 1380 带反光罩 6690 2420 1230 GR30(30° ) R( 红光 ) 带反光罩 3070 1140 GR45(45° ) 带反光罩 1780 GR60(60° ) 菲涅尔镜头 8360 2820 1410 GF14( 聚光 ) 菲涅尔镜头 2650 1050 GF14( 泛光...
  • Page 41 规格参数 MG1200R 型号 100V-240V~60/50Hz 供电 1600W 输入功率 1800-10000K 色温 0% -100% 调光范围 线性 /S 曲线 / 指数 / 对数 调光曲线 14 类 FX 光效 ≥ 96 (2800-10000K) 平均 CRI ≥ 95 (2800-10000K) 平均 TLCI IP54 灯体 / 控制器防水等级 DMX 512 光控台控制, 支持 RDM 协议 /LumenRadio CRMX 控制方式...
  • Page 42 Safety Instructions and Attentions First of all, as the most basic principle: This product is a professional lighting set equipment and should be used by professional lighting engineers or under the guidance of professionals. Basic safety attentions must always be followed during use, as follows: 1.Before use, please read and understand these instructions and attentions.
  • Page 43 20.The safety instructions are formulated according to the strict testing of the factory, and the design and specifications of the equipment are subject to change without prior notice. For latest product information, please check the GODOX website and view latest electronic instruction.
  • Page 44: Main Features

    Warning Thank you for purchasing! MG1200R is Godox's latest and greatest full-color LED light ever, with the following powerful features and functions: input power of 1600W and max.output power of 1500W, support 100V-240V power supply, full-color RGB mode, ultra-high and thousand-bit adjustable brightness, separated design of light body and controller, protection grade of IP54, four dimming curves, wide CCT range from 1800K to 10000K, various wireless controlling methods, and etc.
  • Page 45: Name Of Parts

    Name of Parts Light Body 1. Handle 1 2. Handle 2 3. DC Input Port 4. U-type Bracket 5. Quick Install Device 6. Mount Locking Pusher 7. Direction Adjust Handle 8. Cable Hanging Device 9. ACC Port 10. Godox Mount...
  • Page 46 Controller 1. Power Switch 2. Remove Controller Port 3. DC Output Port 4. Display 5. PRESET Button 6. LOCK Button 7. MENU Button 8. MODE Button 9. Select Dial 10. LED Status Indicator 11. DMX OUT Port 12. DMX IN Port PRESET LOCK MENU...
  • Page 47 What’s Inside MG1200R Light Body × 1 Controller × 1 Protection Cover × 1 Reflector GR45 × 1 Controller Mounting Device × 1 U-type Bracket × 1 Instruction DMX Mode Manual × 1 Specification × 1 Tying Rope × 1 Safety Rope ×...
  • Page 48 What’s Inside MG1200R K1 Light Body × 1 Controller × 1 Protection Cover × 1 Reflector GR45 × 1 Controller Mounting Device × 1 U-type Bracket × 1 Instruction DMX Mode Manual × 1 Specification × 1 Tying Rope × 1 Safety Rope ×...
  • Page 49 Storage Bag × 1 What’s Inside MG1200R K2 Light Body × 1 Controller × 1 Protection Cover × 1...
  • Page 50 Reflector GR45 × 1 Controller Mounting Device × 1 U-type Bracket × 1 Instruction DMX Mode Manual × 1 Specification × 1 Tying Rope × 1 Safety Rope × 1 DC Power Cord × 1 AC Power Cord × 1 Carry Case ×...
  • Page 51 What’s Inside MG1200R K3 Light Body × 1 Controller × 1 Protection Cover × 1 Reflector GR45 × 1 Controller Mounting Device × 1 U-type Bracket × 1 Instruction DMX Mode Manual × 1 Specification × 1 Tying Rope × 1 Safety Rope ×...
  • Page 52: Separately Sold Accessories

    Flight Case × 1 Note: Due to continuous updates and upgrades of the products, there may be differences between the actual products and the pictures. Therefore, the pictures are for reference only, products to prevail in kind. Separately Sold Accessories Reflector GR15, Reflector GR30, Reflector GR60, Frensel Lens GF14...
  • Page 53: Installation And Disassembly

    Installation and Disassembly 1. Installing the U-type Bracket 1.1 Place the light on a flat surface with the 1.2 Press down the quick install device button heat dissipation side upward. and remove the wrench. 1.4 Install the light on the roller stand and lock 1.3 Align both ends of the U-type bracket with the fixing knob on the roller stand.
  • Page 54 2. Disassembly the U-type Bracket 2.1 Hold the handle of the light and remove 2.2 Press and hold the quick install device it from the roller stand then place it on a flat button and release the wrench to remove the surface.
  • Page 55 4. Installation/Disassembly the Reflector 4.1 Align the reflector with the mount, insert 4.2 Press and hold the mount locking pusher and then rotate clockwise to install. and rotate counterclockwise to remove the light protection cover. Note: Make sure to insert after aligning with the mount.
  • Page 56: Power Supply

    6. Connect to DMX 512 Controller DMX512 Multi-connection Note: The DMX 512 controller is sold separately. Power Supply AC 100-240V Do not plug or unplug the power cable or connecting cable when the power is turned on, otherwise injuries may occur.
  • Page 57: Power Switch

    Power Switch Short press the power switch on the controller after connected to power source to turn on or off the device. PRESET LOCK MENU MODE Mode Selection MODE MODE Rotate the select dial in mode interface to choose among the following 6 modes, short press the select dial can enter the desired mode setting interface.
  • Page 58: Hsi Mode

    HSI Mode Short press the MODE button to enter mode selection, rotate and press the select dial to select HSI mode, in which you can adjust the DIM/HUE/SAT. Rotate the select dial clockwise to increase the parameters, while rotate anticlockwise to decrease the parameters.
  • Page 59 GEL Mode Short press the MODE button to enter mode selection, rotate and press the select dial to L-GEL select GEL mode, in which you can adjust the DIM/gel type/gel group type/color/CCT/ HUT/SAT. Rotate the select dial clockwise to increase the parameters, while rotate 5600K anticlockwise to decrease the parameters.
  • Page 60 FX Mode Short press the MODE button to enter mode selection, rotate and press the select dial to select FX mode, in which you can choose among the 14 effects (flash, lightning, cloudy, broken bulb, TV, candle, fire, firework, explosion, welding, cop car, SOS, RGB cycle, party) and adjust their respective parameters.
  • Page 61 4. Broken Bulb This effect simulates the effect of a broken bulb and is often used to create a dim atmosphere. DIM: 0% -100% (in 0.1% increment) Switch: Turn on/off the effect Color: CCT/HSI CCT/HUE: 1800K-10000K/0-360° Speed: 1-100 5. TV This effect simulates the effect of light from a television or screen and is often used to create a cold, mechanical or digital atmosphere.
  • Page 62 9. Explosion This effect simulates the effect of light from explosion and is often used to create a bright, fierce, shimmering atmosphere. DIM: 0% -100% (in 0.1% increment) Switch: Turn on/off the effect Color: CCT/HSI CCT/HUE: 1800K-10000K/0-360° Trigger: Auto/Manual Embers: 1-100 Speed:...
  • Page 63 13. RGB Cycle This effect simulates the effect cycle and change of colorful lights and is often used to create a fantasy, sci-fi atmosphere. DIM: 0% -100% (in 0.1% increment) Switch: Turn on/off the effect SAT: 0%-100% Speed: 1-100 14. Party This effect simulates the effect of colorful lights, flashes and laser, and is often used to create a carnival, fun, high energetic atmosphere.
  • Page 64: Menu Settings

    Menu Settings Short press the MENU button to enter menu settings, rotate the select dial to select among the following options: DMX, CRMX, Bluetooth,network settings, Art-Net & sACN, optics recognition, dimming curves, smoothing, control mode, color space, fan, display, language, version &...
  • Page 65 Turn off DMX terminal Extend DMX Turn on extend DMX channels Channels Turn off extend DMX channels Note: Please refer to the "MG1200R DMX Mode Specification" to control the device by DMX/RDM. The electronic version can be downloaded from the official website https://www.godox.com.
  • Page 66 Output power value = 11dBm (only adjustable in transmitter mode) 16dBm Output power value = 16dBm (only adjustable in transmitter mode) 20dBm Output power value = 20dBm (only adjustable in transmitter mode) Reset Restore to factory settings Reset Scan the QR code to download “Godox KNOWLED”app...
  • Page 67: Network Settings

    Reset rotate to adjust settings. Finally, short press the MENU button to return to the previous menu. Scan the QR code to download the "Godox Light" smartphone app (can be used in Android and Apple). Note: The app can be used directly on the firstly installed device (smartphone or iPad).
  • Page 68: Art-Net & Sacn

    5. Art-Net & sACN Short press the select dial to enter Art-Net & sACN setting interface. Rotate and short press the select dial to select options among auto, Art-Net, sACN and off, then other level 2 options are available to adjust. Finally, short press the MENU button to return to the previous menu.
  • Page 69: Dimming Curves

    6. Optics Recognition Optics Recognition Short press the select dial to enter optics Optics Recognition recognition setting interface. Rotate and short press the select dial to turn on or off the function. Finally, short press the MENU button to return to the previous menu. Note: The light will not be lightened if the optics is not correctly installed even optics recognition function is turned on.
  • Page 70: Control Mode

    Smoothing Note Default The brightness data is basically smoothed to achieve smooth dimming and shorten the response time. Smooth The brightness data is smoothed to achieve ultra-smooth dimming with a slow response time. No smoothing of brightness data, fastest response time. 9.
  • Page 71: Version & Upgrade

    11. Fan Short press the select dial to enter fan setting interface. Rotate and short press the select dial to choose among auto, medium, high and off. Finally, short press the MENU button to return to the previous menu. 12. Display Short press the select dial to enter display setting interface.
  • Page 72: Factory Reset

    15. Factory Reset Short press the select dial to enter factory reset setting interface. Rotate and short press the select dial to select yes or no. The brightness value will turn to 100% and reboot automatically after factory reset. 16. Fixture Info Short press the select dial to enter fixture info Fixture Info setting interface to check model, UID , firmware...
  • Page 73: Preset Setting

    Preset 3 Preset 4 Software Upgrade 1. Download the new firmware to the U disk from official websit(https://www.godox . com/firmware-continuous-light). 2. Turn off the device. Insert the U disk with new firmware into the Type-A USB port. 3. Turn on the device, and it will automatically enter the upgrading interface.
  • Page 74 Illuminance Data(Normal Mode) Condition Unit Bare Light 1500 With Reflector 29000 9700 4830 2960 GR15 (15°) 2690 With Reflector 13000 4470 2340 1450 GR30 (30°) 1210 1800K With Reflector 6090 2200 1210 GR45 (45°) With Reflector 3450 1340 GR60 (60°) With Frensel Lens 16300 5520...
  • Page 75 Condition Unit Bare Light 5440 2280 1340 With Reflector GR15 105000 35500 17600 10700 (15°) 9750 3300 1640 With Reflector GR30 48000 16400 8390 5290 (30°) 4460 1520 4300K With Reflector GR45 22100 8040 4300 2760 (45°) 2050 With Reflector GR60 12400 4760 2680...
  • Page 76 Condition Unit Bare Light 4570 1910 1130 With Reflector GR15 89400 29900 14800 9040 (15°) 8300 2780 1370 With Reflector GR30 40400 13800 7010 4450 (30°) 3760 1280 With Reflector GR45 8500K 18600 6780 3630 2380 (45°) 1730 With Reflector GR60 10500 4020 2260...
  • Page 77 Condition Unit Bare Light With Reflector GR15 14800 4900 2460 1500 (15°) 1380 With Reflector GR30 6620 2280 1190 (30°) With Reflector GR45 3090 1120 (45°) With Reflector GR60 1780 (60°) With Frensel Lens 8320 2800 1330 GF14 (Spot) With Frensel Lens 2670 1040 GF14 (Flood)
  • Page 78 Illuminance Data ( High-speed Mode ) Condition Unit Bare Light 1360 With Reflector 23900 8370 4330 2530 GR15 (15°) 2220 With Reflector 11900 4250 2170 1310 GR30 (30°) 1100 1800K With Reflector 5460 2070 1100 GR45 (45°) With Reflector 3140 1210 GR60 (60°) With Frensel Lens...
  • Page 79 Condition Unit Bare Light 6300 2680 1500 With Reflector GR15 122000 41900 21100 12700 (15°) 11300 3890 1960 1180 With Reflector GR30 56100 19000 9870 6060 (30°) 5210 1770 4300K With Reflector GR45 25300 9330 4970 3140 (45°) 2350 With Reflector GR60 14500 5540 3010...
  • Page 80 Condition Unit Bare Light 4610 1940 1150 With Reflector GR15 90400 31000 15600 9370 (15°) 8400 2880 1450 With Reflector GR30 41100 14100 7200 4580 (30°) 3820 1310 With Reflector GR45 8500K 18800 6900 3660 2410 (45°) 1750 With Reflector GR60 10600 4080 2290...
  • Page 81 Condition Unit Bare Light With Reflector GR15 14800 4890 2440 1450 (15°) 1380 With Reflector GR30 6690 2420 1230 (30°) With Reflector GR45 3070 1140 (45°) With Reflector GR60 1780 (60°) With Frensel Lens 8360 2820 1410 GF14 (Spot) With Frensel Lens 2650 1050 GF14 (Flood)
  • Page 82: Technical Data

    Technical Data Model MG1200R Power Supply 100V-240V~60/50Hz Input Power 1600W 1800-10000K Brightness Range 0% -100% Dimming Curves linear, S-curve, exponential, logarithmic FX Modes Average CRI ≥96(2800-10000K) Average TLCI ≥95(2800-10000K) Waterproof Grade of Light IP54 Body/Controller Controlling Methods DMX 512 Control(support RDM protocol) /LumenRadio CRMX Control /Bluetooth APP Control /Ethernet (support Art-Net &...
  • Page 83: Fcc Statement

    Maximum EIRP Power: 5dBm(BT) / 5dBm(CRMX) Declaration of Conformity GODOX Photo Equipment Co.,Ltd. hereby declares that this equipment are in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. In accordance with Article 10(2) and Article 10(10), this product is allowed to be used in all EU member states.For more information of DoC, Please click this web link: https://www.godox.com/eu-declaration-of-conformity/...
  • Page 84 产品保修 尊敬的用户, 本保修卡是申请保修服务的重要凭证, 请您配合销售商填写并妥善保管, 谢谢! 产品信息 型号 产品条码 用户信息 姓名 联系电话 通信地址 销售商信息 名称 联系电话 通信地址 销售日期 备注 注: 此表应由销售商盖章确认。 产品信息 本文件适用于相关 《产品保修信息》 ( 见后面说明 ) 所列产品, 其他非属此范围的产品或部件 ( 如促销品、 赠品及其他出厂后附加的部件等 ) 不在此保修承诺内。 保修期 产品及部件的相应保修期按相关的 《产品保修信息》执行。 保修期自产品首次购买日起算, 购买日以 购买产品时保修卡登记日期为准。 如何获得保修服务 您可直接与产品销售商或授权服务机构联系,...
  • Page 85 不适用保修情況 如产品存在下列情况, 本文件项下的保证和服务将不适用 : ①产品或部件超过相应保修期; ②错误 或不适当使用、 维护或保管导致的故障或损坏, 如: 不当搬运; 非按产品合理预期用途使用; 不当插 拨外接设备; 跌落或外力挤压; 接触或暴露于不适当温度、 溶剂、 酸碱、 水浸或潮湿环境; ③由非神 牛授权机构或人员安装、 修理、 更改、 添加或拆卸造成的故障或损坏; ④产品或部件原有识别信息被 修改变更或除去; ⑤无有效保修卡; ⑥使用非合法授权、 非标准或非公开发行的软件造成的故障或 损坏; ⑦因不可抗力或意外事件造成的故障或损坏; ⑧其他非因产品本身质量问题导致的故障或损 坏。 遇上述情况, 您应向相关责任方寻求解决, 神牛对此不承担任何责任。 因非在保修期或保修范围 内的部件、 附件或软件导致产品不能正常使用的, 不是保修范围内的故障。 产品使用过程中正常的脱 色,...
  • Page 86: Warranty

    If maintenance service is needed, you can directly contact the product distributor or authorized service institutions. You can also contact the Godox after-sale service call and we will offer you service. When applying for maintenance service, you should provide valid warranty card. If you...
  • Page 87 Breakage or damage that could not be attributed to the product itself. Once met these situations above, you should seek solutions from the related responsible parties and Godox assumes no responsibility. The damage caused by parts, accessories and software that beyond the warranty period or scope is not included in our maintenance scope.

This manual is also suitable for:

Knowled mg1200r k1Knowled mg1200r k2Knowled mg1200r k3
