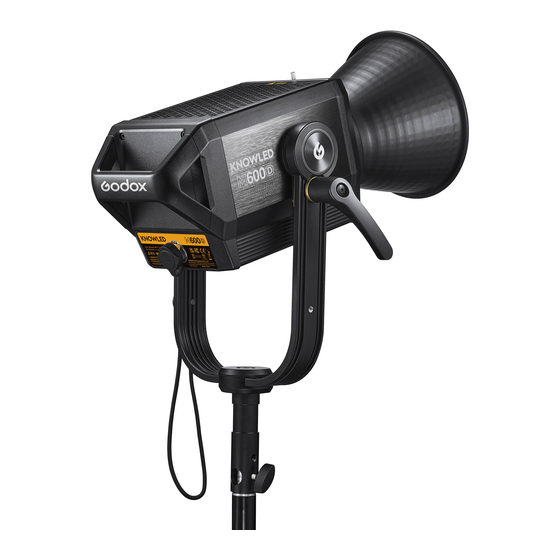

Knowled M600D Daylight LED Light
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Knowled M600D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Godox Knowled M600D

Summary of Contents for Godox Knowled M600D

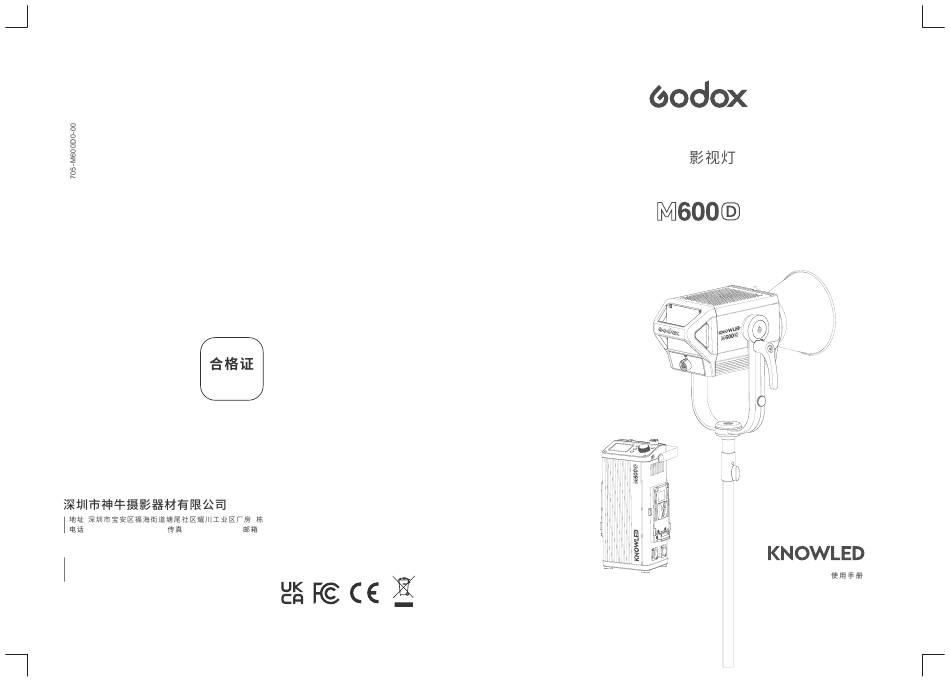

  • Page 1 Knowled M600D Daylight LED Light QC PASS : 0755-29609320(8062) : 0755-25723423 : godox@godox.com GODOX Photo Equipment Co., Ltd. Add: Building 2, Yaochuan Industrial Zone, Tangwei Community, Fuhai Street, Bao’an District, Shenzhen 518103, China Tel: +86-755-29609320(8062) Fax: +86-755-25723423 E-mail: godox@godox.com Instruction Manual godox.com...
  • Page 2 M600D 600W /DMX512 /2.4G DC INPUT CRI 96 TLCI 97 AC 110V~220V 14.8V 26V DMX OUT DMX IN Type-A USB DC OUTPUT MENU MENU AC INPUT DC 48V - 01 - - 02 -...
  • Page 3 RC-A6 CH/GR DC INPUT DC OUTPUT RFT-19 *1 CB34 *1 M600D-CL *1 - 03 - - 04 -...
  • Page 4 M600D-CL DMX 360° - - - - - - 1. AC AC100V-240V - 05 - - 06 -...
  • Page 5 2. V < > MENU 14.8V 26V V 0 -100 2.4G - 07 - - 08 -...
  • Page 6 3.3 DMX <MENU> OFF/1-512 地址 运行 码 模式 0-51 52-255 DMX*(100/255) 取整数 DMX*(100/255) 取整数 0-100%亮度 0-100%亮度 DMX*( /255) DMX=160, =160*8/255=5 MAC:6659 0-85 86-171 172-255 GodoxLight APP( 注:首个移动设备(手机或平板电脑)可直接使用APP 换其他移动设 (Reset) , - 09 - - 10 -...
  • Page 7 English 1 2 3 V 0.07 - 11 - - 12 -...
  • Page 8 < > - 13 - - 14 -...
  • Page 9 14.8V( 14.8V( 26V( 14.8V+26V 26V( 100％ 14.8V( 25％ 14.8V( 50％ 26V( 100％ 14.8V+26V 26V( 14.8V( 14.8V( 26V( 14.8V+26V 14.8V( 26V( 14.8V( 26V( 14.8V+26V 26V( 26V 270Wh 10.5Ah 14.8V 260Wh 17Ah - 15 - - 16 -...
  • Page 10 M600D 2.USB - 17 - - 18 -...
  • Page 11 M600D 740W AC100-240V/10A DC48V/15A 80V/7.5A 14.8V, 150Wh / 26V, 260Wh 1~32 : CMIIT ID:2020DP13510 0~9 A~F 1~99 5600K TLCI -10~40 4 12 DMX512 2.4G 23800 lux 3070(lux) 1440(lux) 2210(fc) 285(fc) 133(fc) 2.4G 164000 lux 15700 lux 5720 lux 15200(fc) 1460(fc) 532(fc) 447.3*242.8*152.9mm 332.4*121.6*179.2mm...

  • Page 12: Important Safety Instructions

    When using your photographic equipment, basic safety precautions should Thank you for purchasing! Godox M600D is a LED Light product with superior performance. It has a separation design of light always be followed, including the following: body and controller, high power, thousand-bit brightness adjustment and various dimming curves 1.

  • Page 13: What's In The Box

    Name of Body Light Body Remote Control (Separately Sold Accessory) Light Body Sticker Bowens Mount Power Switch Button CH/GR Button Mount Fixing SET Setting Button Pusher Reduction Button Increase Button LED Bead RST- Reset Mark Battery Compartment (Press Reduction Button and Increase Button simultaneously to reset) Handle Direction...

  • Page 14: Separately Sold Accessories

    Separately Sold Accessories 2. Mounted on the tripod Better shooting effects and using experience matched with following accessories: RC-A6 Remote Control and Safety Wire Rope. Adjust the light body to a proper angle, rotate the screw of sleeve knob to install the light body on the tripod, then rotate the screw of sleeve knob to fix the light body on the tripod.

  • Page 15: Ac Power Supply

    Connected to DMX Controller 2.V-mount battery power supply The Connection operation diagram of Controller M600D-CL and DMX Controller is as follows: - - - - - - Multi-connected Note: The light can be supplied by 14.8V or 26V V-mount battery. Only the side with yellow battery removal button supports unilateral charging, one with.

  • Page 16: Menu Setting

    Controller Operation Instruction 1. Turn On/Off 3. Menu Setting Press the controller < > Button for 1 Short press < MENU > Menu Button to enter the menu interface, displayed in order with Wireless Control, Bluetooth, DMX Mode, Fan Mode, Dimming Curve, Screen second after connecting to the power Brightness, Language, Restore Factory Setting, Version &...
  • Page 17 For more smartphone APP operations, 3.4 Fan Mode please open the "help" in “GodoxLight”APP Turn the SET adjustment knob on the to gain detailed guidance. Fan Setting interface to choose Cooling Mode, Off Mode, Low-Speed Cooling Note: the APP can be used directly on the Mode, High-Speed Cooling Mode.
  • Page 18 4. Light Effect Setting 3.7 Language Turn the SET adjustment knob on the Short press < > button to enter FX Light Effect interface, turn the SET Language Setting interface to choose adjustment knob to choose flash, lightning, broken bulb or TV scenes. English or Simplified Chinese.

  • Page 19: Status Description

    Status Description Long Term Use Switch from AC Power Supply to V-Mount Battery Power Supply 1.Do not cut off the power immediately 3. Unplug the power cord and install V-mount battery then turn on the product. when the product is turned off after a long period of operation.
  • Page 20 Maximum Brightness in Different States CCT mode: Maximum Brightness (%) in Auto Cooling Mode or High-Speed Cooling Mode when CCT mode: Maximum Brightness (%) in different Fan Mode when supplied by AC power supplied by V-mount battery Fan Mode linear S-curve exponential logarithmic...
  • Page 21 1.Download the new firmware to the U disk from the official website This product, except consumables e.g. adapter and power cable, is supported with a (http://www.godox.com.cn/Downloads.html). one-year warranty. 2. Turn off the M600D LED light. Insert the U disk with new firmware into the USB Maintenance of the light must be performed by our authorized maintenance department upgrade port.

  • Page 22: Technical Data

    Declaration of Conformity： receiver is connected. GODOX Photo Equipment Co,Ltd. hereby declares that the This equipment are in compliance - Consult the dealer or an experienced radio/TV technician for help. with the essential requirements and other relevant provisions of EU Directive 2014/53/EU.
  • Page 23 0755-29609320-8062...

  • Page 24: Warranty

    If maintenance service is needed, you can directly contact the product distributor or and safe-keep it. Thank you! authorized service institutions. You can also contact the Godox after-sale service call Product Model Product Code Number and we will offer you service.
