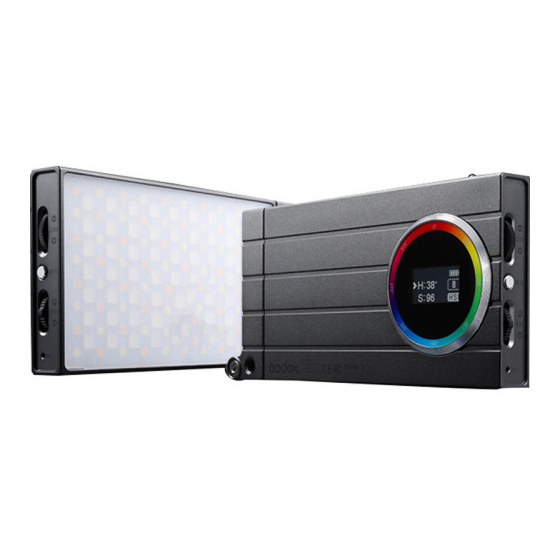

Godox M1 Instruction Manual

Rgb mini creative light
Hide thumbs

Advertisement

Quick Links

GODOX Photo Equipment Co., Ltd.
地址/Add: 深
2
Building 2, Yaochuan Industrial Zone, Tangwei Community, Fuhai Street, Bao'an District, Shenzhen, China
电话/Tel: +86-755-29609320(8062)
传真/Fax: +86-755-25723423
http://www.godox.com
705-M10000-00
邮箱/E-mail: godox@godox.com
Made In China
Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the M1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Godox M1

Summary of Contents for Godox M1

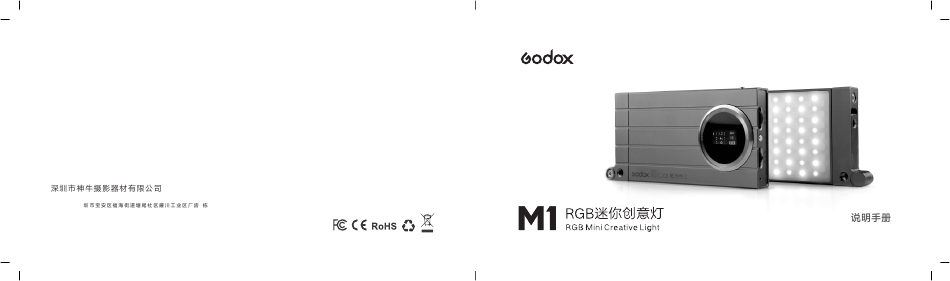

  • Page 1 GODOX Photo Equipment Co., Ltd. 地址/Add: 深 Building 2, Yaochuan Industrial Zone, Tangwei Community, Fuhai Street, Bao’an District, Shenzhen, China 电话/Tel: +86-755-29609320(8062) 传真/Fax: +86-755-25723423 邮箱/E-mail: godox@godox.com http://www.godox.com 705-M10000-00 Made In China Instruction Manual...
  • Page 2 - 01 - - 02 -...
  • Page 3 此使用说明书中的操作步骤假定相机和闪光灯的电源开关已开启。 参考页码由(第**页)表示。 此使用说明书中使用以下警告符号： 　　该“小心”符号表示避免出现拍摄问题的警告。 　　该“注意”符号提供补充信息。 - 03 - - 04 -...
  • Page 4 04. Type-C USB 05. MIC 08. FN 11 10 - 05 - - 06 -...
  • Page 5 2 Type-C USB 1.1. 5V/2A - 07 - - 08 -...
  • Page 6 0 100% 1.2. >8500K 0 >1: >2500K 100 >H:354 100 I 100 S:99 >H:360 100 0 360° 1.3. MIC S:99 0-100 H:354 100 >S:100 0 100% >8500K 100 >H:354 100 2500K 8500K S:99 - 09 - - 10 -...
  • Page 7 4. FX 序号 显示 场景 显示Ⅰ 显示Ⅱ 显示Ⅲ 1 15 0 100% 显示 场景 显示Ⅰ 显示Ⅱ 显示Ⅲ 序号 (60s) - 11 - - 12 -...
  • Page 8 360° 270° - 13 - - 14 -...
  • Page 9 5V2A/18W QC3.0(5V3A,9V2A,12V1.5A) 2500K 8500K 0%~100% 0 360° 1700 100% TLCI 360° 270° 2410mAh (100% -10~40 145*70*15mm 240g - 15 - - 16 -...
  • Page 10 - 17 - - 18 -...

  • Page 11: Forward

    Always keep this product dry. Do not use in rain or in damp conditions. RGB Mini Creative Light M1 can ajust its color temperatures and change different colors. It can easily achieve creative light Do not disassemble. Should repairs become necessary, this product must be sent to an authorized maintenance center.

  • Page 12: Table Of Contents

    Contents Forward Warning Body Included Items Battery Operation Technical Data Heat Protection Function Maintenance - 21 - - 22 -...

  • Page 13: Body

    Body 10. Display Screen 01. LED Beads 11. Color Circle 02. Diffuser 12. Multifunctional Bracket 03. 1/4 Mounting Socket 13. Main Axis of Bracket 04. Type-C USB Charging Port 14. Inside Axis of Bracket 05. MIC Hole 06. Power Switch 07.

  • Page 14: Included Items

    Cautions Included Items 1. No over 24 hours' continuous charging. 2. Store in dry, cool, ventilated places. 3. Do not put aside or into fire. 4. Dead batteries should be disposed according to local regulations. 5. Please charge the battery to approx. 60% before being placed for long time. 6.
  • Page 15 1.2 Mode Selection: Bicolor mode/Colorful mode/Situational special effects mode 2.2 Light brightness adjustment: turn the light brightness select dial from Press MOD button to switch different modes: CCT displayed on the screen means bicolor mode, HIS displayed on the 0 to 100%. >8500K 0 screen means colorful mode and FX means situational special effects mode.
  • Page 16 4. FX Situational Special Effects Mode(40 kinds) No. Display Situation DisplayⅠ DisplayⅡ DisplayⅢ 4.1 Turn the FN multifunctional select dial to choose different special effects modes from 1 to 15. Candle Discontinuous Frequent Sustainable And the modes will display circularly. Fire Firewood Campfire...
  • Page 17 5. Multifunctional Bracket 5.3 Using method: 5.1 Main axis: the rotation angle is 360°. 360° 1. On the table 2. On the light stand 3. Handheld 4. Cold shoe connection 5. Hang 5.2 Inside axis: the rotation anlge is 270° . Note: The bracket may be loose after thousands of rotation.
  • Page 18 Technical Data Model Model Charger(separately sold) 5V2A/18W QC3.0(5V3A,9V2A,12V1.5A) Duration (continuous output Approx. 150 Minutes Power Max. 13W in 100% full power) Color temperature range 2500K～8500K Operation temperature -10~40℃ Light brightness range 0%~100% Dimension 145*70*15mm RGB Color gamut 0～360°(full colors) Net weight 240g 100% Illuminance(LUX) Max.
  • Page 19 FCC statement Maintenance This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. - Shut down the device immediately should abnormal operation be detected. A. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not - Avoid sudden impacts and the product should be dedusted regularly.
