INSTALLING OPTIONAL STORAGE DEVICES

This subsection describes optional storage device installation procedures.

Device Slots

The system unit contains six storage device slots:
n
one standard 3 1/2-inch accessible device slot that contains the standard 1.0-inch
high 1.44-MB diskette drive
n
three 5 1/4-inch accessible device slots for 1.6-inch high devices (one slot
contains the standard IDE CD-ROM reader in hard disk configurations)
n
two internal 3 1/2-inch device slots for 1.6-inch or 1.0-inch high devices (one slot
contains the standard IDE or SCSI-2 hard disk in hard disk configurations)
You can install accessible storage devices such as a diskette drive or tape drive with a
5 1/4-inch form factor (frame) in the 5 1/4-inch slots.
Figure Section 3-14 shows the location the accessible storage device slots.

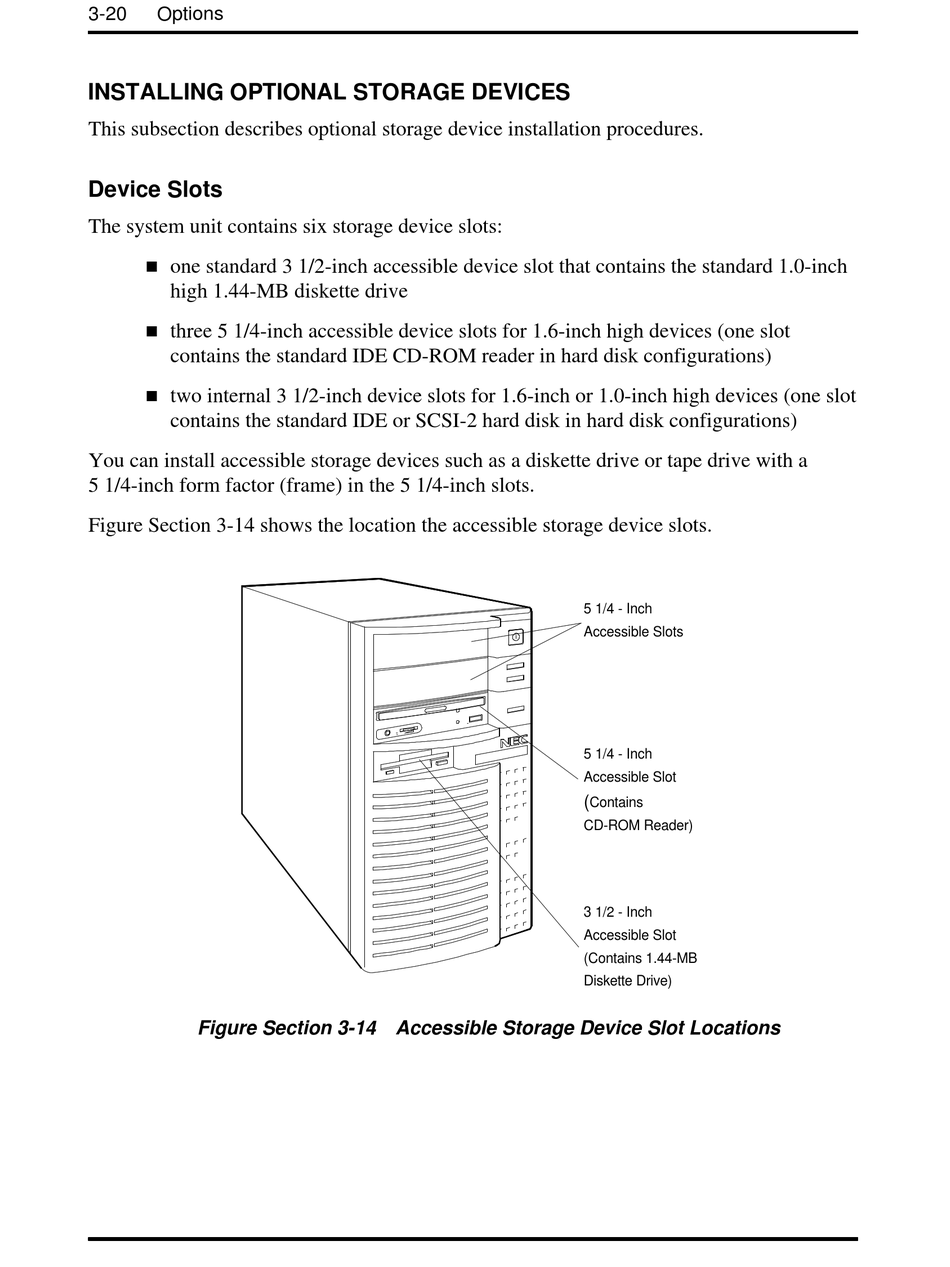

Figure Section 3-14 Accessible Storage Device Slot Locations
5 1/4 - Inch
Accessible Slots
5 1/4 - Inch
Accessible Slot
(
Contains
CD-ROM Reader)
3 1/2 - Inch
Accessible Slot
(Contains 1.44-MB
Diskette Drive)
