Page 13: Preface
P90E and Image P100E computer systems. It also provides hardware and interface information for users who need an overview of the computer system design. The manual is written for NEC-trained customer engineers, system analysts, service center personnel, and dealers. The manual is organized as follows: Section 1, Technical Information, provides an overview of the computer features, hardware design, interface ports and internal devices.
Page 14: Abbreviations
xvii Abbreviations ampere DMAC DMA controller alternating current disk operating system advanced technology DRAM dynamic RAM (IBM PC) data terminal equipment Bulletin Board System error checking and correction binary-coded decimal Enhanced Graphics Adapter BIOS Customized Utility EISA Extended Industry Standard BIOS basic input/output system Architecture...
Page 15 xviii Abbreviations In Service register programmable input/output input/output pixel picture element integrated peripheral controller PLCC plastic lead chip carrier inches per second phase lock loop interrupt request peak-to-peak kilo (1024) programmable peripheral interface kilo (1000) PCI-to-PCI Bridge kilobyte PROM programmable ROM kilogram quad flat pack kilohertz...
Page 16 Abbreviations...
Page 17: Section 1 Technical Information
Section 1 Technical Information ® This section provides an overview of the Image P90E and Image P100E enhanced ® minitower computers. These computers use Intel Pentium™ microprocessors in a PCI/EISA bus architecture designed for workstation environments. Basic hardware includes a system unit, keyboard, and mouse. External interface connectors are located in the rear of the system unit and are identified in Section 2, Setup and Operation.
Page 18: System Board
Technical Information System Unit Mouse Keyboard Power Cord Figure Section 1-1 Image P90E and Image P100E System Unit Components System Board The system board contains the computer’s processing and peripheral control circuitry, as well as the sockets for connecting memory and peripheral devices. Features of the system board are listed as follows.
Page 19: Pci Local Bus
Technical Information support for memory expansion board containing a minimum of 16 megabytes (MB) of dynamic random access memory (DRAM) in single processor configurations 8-slot memory expansion board accepts 36-bit, 70-nano second (ns) single- inline memory modules (SIMMs) memory expandable to a maximum of 256 MB of DRAM using either 1-MB x 36 bit, 2-MB x 36 bit, 4-MB x 36 bit, or 8-MB x 36 bit, 70 ns SIMMs mounted in the 8-slot memory expansion board (see Section 3 for memory expansion procedures)
Page 20 Technical Information one Small Computer System Interface (SCSI) connector supporting up to five internal and 7 external devices (hard disk drives, tape back-up drives, and CD ROM readers) using the PCI local bus Fast SCSI-2 host adapter supports a synchronous data transfer rate of 10 MB per second, which is twice as fast as the regular SCSI supports asynchronous data transfer rates up to 5 MB per second supports the common command set (CSS) for compatibility...
Page 21: Chipset
Technical Information external connectors providing an interface for the following external devices: video graphics array (VGA)-compatible monitor ® personal system/2 (PS/2 )-style mouse PS/2-style keyboard PS/2, Enhanced Parallel Port (EPP) and enhanced capabilities port (ECP) are supported for the parallel printer two buffered serial ports Table Section 1-1 lists the major chips on the system board.
Page 22 Technical Information Chipset The Image P90E and Image P100E computers use the Intel Neptune II chipset, which consists of the PCI cache and memory controller (PCMC), two local bus accelerators (LBXs), the PCI EISA bridge component (PCEB), and the EISA system component (ESC). Together these five chips control the cache memory, the EISA bus, the BIOS Flash ROM, the keyboard controller, and the I/O controller.
Page 23: Pci-Eisa Bridge Component
Technical Information PCI-EISA Bridge Component (PCEB) The PCEB is one of the two chips that connect the PCI bus to to the EISA bus. The PCEB translates bus protocols from EISA to PCI and vice versa. Extensive buffering of both the PCI and EISA interface allows for concurrent operations.
Page 24: Host Bus
Technical Information Figure Section 1-2 Component Block Diagram Host Bus The host bus consists of a 32-bit address bus (A<31..0>), a 64-bit data bus (D<63..0>), and control circuitry. The host bus interfaces the processor to the PCI cache and memory controller (PCMC), the local bus accelerators (LBXs), and the secondary (L2) cache.
Page 25: Pci Bus
Technical Information PCI Bus The PCI bus consists of a multiplexed address and data bus (AD<31..0>) and control circuitry. The PCI bus allows industry-standard PCI option boards to interface to the system. The PCMC and LBXs link the PCI bus to the host bus, and PCI EISA bridge component (PCEB) links the PCI bus to the EISA bus.
Page 26: Secondary Cache
1-10 Technical Information The dual processor upgrade option is installed in a 320-pin PGA, zero-insertion-force (ZIF) socket on the system board. Secondary Cache The 16-KB primary cache (8 KB data and 8 KB instruction) is integrated into the processor. The system board also provides 256 KB of 9-ns, synchronous secondary cache memory that is external to the processor.
Page 27 128K granularity for ROM reads and 64K granularity for flashing. NEC Port 0C12h bits 6 and 7 map each of the four 64K byte chunks of the ROM to the FXXXX range. ACU access is controlled by the system BIOS code and is generally not accessible in ISA space.
Page 28: On-Board Peripherals
1-12 Technical Information Flash ROM programming is supported only in the 0F0000h – 0FFFFh area. The system and Video BIOS area of the Flash ROM (upper 64 KB) can be erased, programmed, and verified normally with the RPG0 bit set low (to 0). To erase, program, and verify the SCSI BIOS and ACU area (lower 64 bits) the RPG0 bit must be set high (to 1).
Page 29: Real-Time Clock (Rtc)
The I/O ports implemented by the system I/O controller are not listed. Refer to the SMC FDC37C665 data sheets for a detailed description of the system I/O controller ports. In addition, keyboard controller registers (with the exception of the keyboard status register) are documented in the NEC PS/2 Style Keyboard Controller release notes.
Page 30 1-14 Technical Information Table Section 1-4 I/O Addresss Map Address (Hex) I/O Device Name Location Access 0000-000F DMA controller 1 (channel 0-3) 0010-0018 EMS registers 0020-0021 Interrupt controller 1 0022-0023 ESC configuration index registers 0040-0043 System Timer 1 0048-004B System Timer 2 0060-006E (even) Keyboard control Keyboard controller 0060-006E (odd)
Page 31: Nec Proprietary Ports
The ESC is programmed to drive the GPCS0* output active when a read or write is done to I/O 0C40h, 0C41h, 0C42h, or 0C43h. NEC ports are accessed by gating GPCS0* with the lower two bits of the address bus. The following paragraphs describe the NEC proprietary...
Page 32 1-16 Technical Information NEC port 0C10h AEN3 AEN2 AEN1 VCLOCK AEN6 AEN5 AEN4 VDATA_IN/ VDATA_OUT AEN1 Off (R/W) Disables AEN1 Enables AEN1 AEN2 Off (R/W) Disables AEN2 Enables AEN2 AEN3 Off (R/W) Disables AEN3 Enables AEN3 AEN4 Off (R/W) Disables AEN4...
Page 33 Technical Information 1-17 NEC port 0C11h ECP DMA 1st Serial 1st Serial 2nd Serial Parallel Port 2nd Serial Enable Select Used Port IRQ Port Port IRQ IRQ Select Port Select Enable Select Enable Not used ECP DMA Select (3 or 1) (R/W)
Page 34 1-18 Technical Information Flash Flash Password Floppy Port RPG1 RPG0 Lock Enable Lock Write Off 0: Flash Enable (R/W) Disables flash (default) Enables flash 1: Flash Lock (R/W) Enables flash (default) Disables the ability to flash BIOS until machine has power cycled off and on 2: Port Lock (R/W) Enables writing to port 0C12h Disables the ability to write to port 0C12h until machine has power cycled off...
Page 35 0, 1 Second 65 KB of the 256 KB ROM accessible from F0000 to FFFFF 1, 0 Third 64 KB of the 256 KB ROM accessible from F0000 to FFFFF 1, 1 Highest 64 KB of the 256 KB ROM accessible from F0000 to FFFFF NEC port 0C13h Not used Cache...
Page 36: Keyboard Controller Ports
1-20 Technical Information 5, 6, and 7: Cache module present bits (Read only) Bits 7, 6, 5: 0, 0, 0 equals 512 KB synchronous 1, 0, 0 equals 256 KB synchronous 1, 0, 1 equals 256 KB asynchronous 1, 1, 1 equals no cache All other combinations have no meaning Keyboard Controller Ports The 87C42 has a command/status port at I/O address 64h and a read/write register at...
Page 37: System Memory
Technical Information 1-21 Bit 4 Keyboard/Auxiliary inhibit switch When this bit is set, it indicates that the keyboard and auxiliary device are not inhibited. The keyboard controller sets bit to 0 when security mode is active. Bit 5 Auxiliary buffer full When this bit is set, it indicates that data received from the auxiliary device is present in the output buffer.
Page 38: Interrupt Controller
1-22 Technical Information Interrupt Controller The interrupt controller is implemented on the EISA system component (ESC) and operates as an interrupt manager for the entire system environment. The controller accepts requests from peripherals, issues interrupt requests to the processor, resolves interrupt priorities, and provides vectors for the processor to determine which interrupt routine to execute.
Page 39: Video Controller
Technical Information 1-23 Video Controller The Tseng W32P PCI graphics controller is a PCI local bus video controller that delivers a 32-bit PCI-bus interface with the CPU. It features a graphic user interface (GUI) accelerator, and advanced features for imaging and multimedia markets. Multimedia and imaging are enhanced through the inclusion of an unique Image Memory Access (IMA) port that allows direct access to the frame buffer at high speed.
Page 40 1-24 Technical Information EISA expansion slot connector pin assignments are provided in Appendix B. ISA Expansion Board EISA Expansion Board Tab Notch EISA Connector Figure Section 1-3 EISA Connector Various DMA cycle types are needed to cover the speed and complex requirements of different applications.
Page 41 Technical Information 1-25 Table Section 1-6 DMA Cycles and Compatible DMA Devices DMA Cycle Transfer Compatible Rate (MB/s) DMA Devices Compatible 8-bit All ISA 16-bit All ISA Type A 8-bit Most ISA 16-bit Most ISA 32-bit EISA only Type B 8-bit Some ISA 16-bit...
Page 42: Pci Auto Configuration
1-26 Technical Information PCI Local Bus The industry-standard PCI-bus is a highly-integrated I/O interface that offers the highest performance local bus available for the Pentium processor. The PCI-bus supports burst modes that send large chunks of data across the bus, allowing fast displays of high- resolution images.
Page 43: Serial Interface
Technical Information 1-27 Serial Interface The system has two standard serial ports. The serial ports support the standard RS-232C interface. The interrupt is selectable via Setup. Serial interface signals are output through the system board's 9-pin, D-subconnector. The connectors are located at the rear of the system unit.
Page 44: Indicator Panel
The dual-connector cable option is available from NEC (see Section 4). The system refers to the diskette drives as A and B. Drive A is for the first drive, B is for the second optional diskette drive.
Page 45: Quad-Speed Ide Cd-Rom Reader
Technical Information 1-29 CD-ROM Reader All hard disk systems come with the Quad-Speed IDE CD-ROM Reader (assigned as drive E) installed as standard equipment (see Figure Section 1-4). The CD-ROM reader is a 5 1/4-inch, IDE device that installs in the 5 1/4-inch accessible device slot and cable- connects to the secondary PCI IDE interface connector (J32) on the system board.
Page 46: Setup And Operation
Section 2 Setup and Operation This subsection provides information on hardware setup for Image P90E and Image P100E computers. Setup includes unpacking, cabling, and powering up the system. It also includes configuring the system with the system setup programs. Section 3 provides information for installing options.
Page 47: Setup
Setup and Operation SETUP Set up the system by making the following connections. At the rear of the system, set the voltage selector switch to 115V or 230V and insert the power cord into the power socket (see Figure Section 2-1). CAUTION: The correct AC input voltage must be properly set.
Page 48 Setup and Operation Connect the keyboard and mouse cables to the back of the system unit (see Figure Section 2-2). Connect the monitor and any other peripherals to the rear panel (see Figure Section 2-2). Detailed monitor connections are given in Section 3, Options. Keyboard Port Mouse Port Serial Port 1...
Page 49: Power On
Setup and Operation POWER ON Once any options are installed and the peripherals are connected, press the power button to power-on the system (see Figure Section 2-3). The user lamps and reset button are also identified in the figure. Power Button Power Lamp...
Page 50: Setting System Parameters
CMOS memory and maintains configuration information when system power is off. NOTE NEC recommends that you print out or write down your current Setup parameters and store the information in a safe place. This lets you restore your system to the current parameters...
Page 51: Setup Utility
Setup and Operation SETUP UTILITY The Setup utility is used to view and set system parameters. Use the Setup utility program set the time and date. check or change the diskette drive type. update or check system parameters when you add or remove PCI/IDE expansion options.
Page 52: How To Start Setup
Setup and Operation How to Start Setup To start the Setup utility, follow these steps: Turn on or reboot the system. Setup displays the following message: F2 to run Setup Press twice as soon as the message is displayed, as it appears only briefly. Setup’s Main Menu window appears similar to the following screen.
Page 53: Menu Bar
Setup and Operation A Main Menu summary window — the center area on the left side of the screen. This area provides a summary of Main Menu Setup parameters. Main Menu parameters can be set directly from this window or from the Main menu option in the legend bar.
Page 54: Legend Bar
Setup and Operation Legend Bar Use the keys listed in the legend bar on the bottom of the Setup menu to make the selections or exit the current menu. Table Section 2-1 describes the legend keys and their alternates. Table Section 2-1 Setup Key Functions Function F1 or Alt-H Displays General Help window (described later in this section).
Page 55: Item Specific Help Window
2-10 Setup and Operation Item Specific Help Window The Item Specific Help window on the right side of each menu displays the help text for the currently selected Setup option. It updates as you move the cursor to each new field. General Help Window Pressing Alt H...
Page 56 Setup and Operation 2-11 Table Section 2-2 Main Menu Parameters Parameter Options Description System Time HH:MM:SS Sets the system time. Use the tab key to move between fields. System Date MM/DD/YYYY Sets the system date. Use the tab key to move between fields. Diskette A: 360KB, 5 1/4”...
Page 57: Ide Adapters
2-12 Setup and Operation Table 2-2 Main Menu Parameters (cont’d) Parameter Options Description System Memory Automatically detected Displays the amount of conventional by the system memory detected at power-on. Extended Memory Automatically detected Displays the amount of extended by the system memory detected at power-on.
Page 58 Setup and Operation 2-13 Use Table Section 2-3 to configure the hard disk. If the IDE hard disk features auto IDE type detection, select the Autotype Fixed Disk parameter. The system then automatically detects the hard disk type and sets the remaining parameters. Table Section 2-3 IDE Hard Disk Parameters Parameter Options...
Page 59: Memory Cache
2-14 Setup and Operation Memory Cache Select “Memory Cache directly from the Main Menu to display the Memory Cache menu (see Table Section 2-5). CAUTION: Incorrect settings can cause the system to malfunction. Table Section 2-4 Memory Cache Parameters Parameter Options Description External Cache...
Page 60: Boot Sequence
Setup and Operation 2-15 Table Section 2-5 Memory Shadow Parameters Parameter Options Description System Shadow Not user selectable. Always enabled. Video shadow Enabled (default) Always enabled. Shadows video BIOS and improves Disabled performance. Shadow Memory Shadow Default is disabled. Shadows optional ROM located in Regions Disabled (default) specified segments of memory and can improve...
Page 61 2-16 Setup and Operation Table Section 2-7 Numlock and Keyboard Parameters Parameters Options Description Numlock Auto (default) On or Off turns NumLock on or off at bootup. Auto turns NumLock on if it finds a numeric keypad. Key click Enabled Turns audible key click on or off.
Page 62: Advanced Menu
Setup and Operation 2-17 Advanced Menu Selecting “Advanced” from the menu bar on the Main Menu displays a menu with the following options: Integrated Peripherals Sets parameters for I/O ports, diskette controller, PCI/SCSI adapter, PCI/IDE adapter, and monitor type. Advanced Chipset Control Sets PCI parameters Plug and Play O/S Enables or disables the Plug and Play feature.
Page 63: Integrated Peripherals Menu
2-18 Setup and Operation Integrated Peripherals Menu Select “Integrated Peripherals” menu on the Advanced Menu to configure the connections between the system processor and the I/O ports (serial port 1, serial port 2, and the printer port), the diskette drives, monitor, and VGA feature connector. NOTE: A Supervisor password may be required to select Integrated Peripherals menu parameters.
Page 64: Integrated Peripherals Parameters
Setup and Operation 2-19 Table 2-8 Integrated Peripherals Parameters (cont’d) Feature Options Description Monitor Type Disabled Selects the monitor type. Data Channel (DDC) DDC Select Select senses capabilities of compatible display Type 1-4 (see monitors. Non-DDC compatible monitors, types 1 through 4, may also be selected, (see Table Section 2-9) Disabled Table Section 2-9).
Page 65: Advanced Chipset Control
2-20 Setup and Operation Advanced Chipset Control Select the “Advanced Chipset Control” submenu on the Advanced menu to set PCI parameters. NOTE: A Supervisor password might be required to select parameters from the Advanced Chipset Control submenu. Use the legend keys to make your selections and exit to the Main menu. See Table Section 2-10 to configure your peripherals.
Page 66: Plug And Play Os Parameters
Setup and Operation 2-21 Table 2-10 Advanced Chipset Control Parameters (cont’d) Parameter Options Description 0 - Active RAS# Mode Enable If Enabled, DRAM interface is in 0- Disable Active RAS# mode. If Disabled, DRAM interface is in 1-Active RAS# mode. Parity Error Enable If Enabled, parity errors generated...
Page 67: Pci Device Parameters
2-22 Setup and Operation Plug and Play boards are dynamic in nature — the system allocates resources to these boards upon system boot (Table Section 2-11). Some device drivers support this dynamic board configuration, but some do not. Device drivers that do not support the dynamic board configuration are also known as static device drivers.
Page 68: Large Disk Access
Setup and Operation 2-23 Large Disk Access Select the Large Disk Access Mode parameter when configuring a large disk (see Table Section 2-13).Use the legend keys to make the selections and exit to the Main Menu. Table Section 2-13 Large Disk Parameters Parameter Options Description...
Page 69 2-24 Setup and Operation See Table Section 2-14 for a description of the security features. Use the legend keys to make the selections and exit to the Main Menu. CAUTION: The features that you set in the Security menu affect the features that appear on the Security menu as well as on other Setup menus.
Page 70: Edit Supervisor Information Parameters
Setup and Operation 2-25 Edit Supervisor Information Parameters Select the Edit Supervisor Information submenu from the Security menu to review and set Supervisor parameters. See Table Section 2-15 for a description of the Edit Supervisor Information parameters. Table Section 2-15 Edit Supervisor Information Parameters Parameter Options...
Page 71: Edit User Information Parameters
2-26 Setup and Operation Edit User Information Parameters Select the Edit User Information submenu from the Security menu to review and set user parameters. See Table Section 2-16 for a description of the Edit User Information parameters. Table Section 2-16 Edit User Information Parameters Parameter Options Description...
Page 72: Exit Menu
Setup and Operation 2-27 Enter your password, press , reenter your password, and press to save the Enter Enter password. Exit Menu Selecting “Exit” from the menu bar displays the following exit options: Save Changes & Exit Discard Changes & Exit Get Default Values Load Previous Values Save Changes.
Page 73: Save Changes
2-28 Setup and Operation Default values have been loaded. [continue] Pressing Enter at “Continue” exits Setup and reboots your system. If, during bootup, the BIOS program detects a problem in the integrity of values stored in CMOS, it displays these messages: System CMOS checksum bad - run SETUP Press <F1>...
Page 74: Guide For Configuring Expansion Devices
Setup and Operation 2-29 GUIDE FOR CONFIGURING EXPANSION DEVICES Refer to Table Section 2-17 for a quick reference to configuring optional expansion de- vices. For details, see the following subsections and the referenced sections and subsec- tions in the table. Table Section 2-17 Quick Reference to Configuring Expansion Devices If You Are Configuring...
Page 75: Quick Reference To Configuring Expansion Devices
2-30 Setup and Operation Table 2-17 Quick Reference to Configuring Expansion Devices (cont’d) If You Are Configuring Then Plug and Play 1. If you have a Plug and Play OS installed, enable “Plug and Play O/S” ISA Board in the Setup utility. (See “Setting System Parameters“ earlier in this section.
Page 76 Setup and Operation 2-31 Table 2-17 Quick Reference to Configuring Expansion Devices (cont’d) If You Are Configuring Then SCSI-2 1. Set switches on the SCSI-2 device to the required settings. (See the Expansion documentation that comes with your device and Section 3 in this guide Device for information on setting switches for expansion SCSI-2 devices.) 2.
Page 77: Eisa Configuration Utility
2-32 Setup and Operation EISA Configuration Utility The ECU program comes on a diskette that ships with the computer and is required for EISA configuration. The ECU provides a detailed view of the system configuration and allows you to make system configuration changes when you add, move, or remove an EISA or ISA expansion board.
Page 78: When To Use The Ecu
The ECU requires a cold boot each time you load it. Power on the system. After performing its Power-On Self-Test, the system loads and starts the ECU. An ECU preparation screen appears followed by the NEC logo screen and the Main Menu (see Figure Section 2-4).
Page 79: How To Use The Ecu
2-34 Setup and Operation Main Menu Help Set Date and Time Configure Computer or Peripheral Devices Maintain System Configuration Diskette Exit Figure Section 2-4 ECU Main Menu How to Use the ECU You can use either the keyboard or a mouse to select menu items in the ECU. To use the ECU, follow the instructions on the screen.
Page 80: Configure Computer Or Peripheral Devices
Setup and Operation 2-35 Configure Computer or Peripheral Devices Select the “Configure Computer or Peripheral Devices” option under the following cir- cumstances: you are setting up the system for the first time the “Invalid Configuration Information” message appears at power-on. If this message appears, run the Setup utility to correct any configuration errors.
Page 81 2-36 Setup and Operation Step 3: View or edit details — lets you view and change system board settings. You must select this step when you are setting up the system for the first time. Step 4: Examine switches or print report — allows you to view the required switch and jumper settings of a particular board.
Page 82 Setup and Operation 2-37 Step 2: Add or Remove Boards Select Step 2 whenever you install or remove any EISA boards or ISA boards with CFG files from the system. NOTE: If you are adding a EISA board to your system, first install the board.
Page 83 2-38 Setup and Operation In the rare event that the CFG file on the ECU diskette is newer, the system displays an Over- Write Current File message. In this case, press to cancel. If a board is not displayed and you did not load a configuration file for it, go to the next step.
Page 84 Setup and Operation 2-39 NOTE: If a CFG file comes with your board and a CFG file already exists on the ECU disk- ette, you still need to copy the CFG file from the option configuration diskette (see “Maintain System Configuration Diskette” in this section). This ensures that the system uses the latest ver- sion of the file.
Page 85 2-40 Setup and Operation Table Section 2-18 EISA Configuration Utility Parameters MENU/PARAMETER DEFAULT SETTING EISA NMI Control Software NMI Enabled 32-bit Bus Timeout NMI Enabled Parallel Port Port 3F8 IRQ 7 Parallel Port Mode Bidirectional Serial Port 1 Port 3F8 IRQ 4 Serial Port 2 Port 2F8...
Page 86: Advanced Menu
Setup and Operation 2-41 Use the following procedure to configure the system board. NOTE: See the guidelines that follow the pro- cedure for additional information about setting system parameters. Select “Step 3: View or edit details” from the Configure Computer or Peripheral Devices menu and press Enter A screen appears with the configuration categories and their parameters.
Page 87: Pci Ide Controller
2-42 Setup and Operation NOTE: You must lock an ISA board config- ured as a Generic ISA Adapter board (ISA board without CFG files) to reserve the selected sys- resources. Locking the board prevents the ECU from using the selected resources to resolve resource conflicts.
Page 88: Pci Scsi Controller And Scsi Termination
Setup and Operation 2-43 NOTE: Enabling the IDE controller automati- cally changes any installed SCSI controller to a secondary controller and might change the IRQ. If you have an IDE hard disk, you must also run the Setup program at power-on to set the drive parameters.
Page 89: Set Date And Time
2-44 Setup and Operation Set Date or Time Set the date and time if you are setting up the system for the first time or you need to cor- rect the settings. The settings remain in memory even after the system is powered off. To set the date and time, choose “Select Date or Time”...
Page 90: Exit
Setup and Operation 2-45 Use the following steps to copy or update configuration files. Select “Maintain System Configuration Diskette” from the Main Menu. Remove the ECU diskette from the diskette drive and replace it with the configu- ration diskette that came with the option board. Select “Copy/update CFG files”...
Page 91: Isa Boards Without Cfg Files
2-46 Setup and Operation ISA Boards without CFG Files If a CFG file did not ship with your ISA board, check to see if one exists for the board on the ECU diskette or on a CFG File Library diskette. If you still cannot locate a CFG file for the board, use one of the following procedures: configure your system for the ISA board with the Generic ISA CFG File pro- vided by the ECU (see the next subsection, “Using the Generic ISA CFG File”).
Page 92 Setup and Operation 2-47 Select “Generic ISA Adapter” and press . The “Add confirmation” screen Enter appears with the manufacturer’s comments and instructions to configure the board resources manually. Read the manufacturer’s comments and press when you are finished. The Enter “Add”...
Page 93 2-48 Setup and Operation NOTE: Do not remove a locked board after it is locked and saved and after you have exited from the ECU utility. You must unlock any added boards before removing the board from the sys- tem. Otherwise, system resources may change, causing ECU problems.
Page 94 Setup and Operation 2-49 Compare the settings of the boards installed to the printout. Make any changes necessary. The settings on the board(s) must match the settings on your printout for the system to operate correctly. You might need to remove a board to access its switches and/or jumpers.
Page 95 2-50 Setup and Operation If the board requires DMA channels, choose “Select DMA Channels.” Select the DMA channels used by the board’s current configuration. You must limit your selections to four DMA channels. Press when done. The “New Board Setup” screen reappears. If the board requires a port address, choose “Select Port Addresses.”...
Page 96: Scsi Select Utility
Setup and Operation 2-51 Complete the configuration as follows: Select “Step 4: Examine switches or print report.” Note any boards marked with an arrow on the screen. The arrows indicate that the board might have jumpers and switches that you must physcically verify or that a software statement provides additional in- formation about the board.
Page 97: Configure/View Host Adapter Settings
2-52 Setup and Operation Adaptec AIC7850 <SCSISelect (tm) > Utility V1.11 AIC-7850 at Bus:Device 00:03h Would you like to configure the host adapter, or run the SCSI disk utilities? Select the option and press <Enter> Press <F5> to switch between color and monochrome modes. Options Configure/View Host Adapter Settings SCSI Disk Utilities...
Page 98 Setup and Operation 2-53 Pressing displays the following: Save Changes Made? Selecting No takes you back to the Options screen. Selecting Yes saves your changes and reboots your system after you press any key when the following message is displayed: Please Press any Key to Reboot For the Additional Options settings, use the arrow keys to move the cursor to the parame- ter, press...
Page 99: Scsi Disk Utilities
2-54 Setup and Operation Table Section 2-20 Advanced Configuration Options Parameters Options Description Reset SCSI Bus at Enable (default) Enables or disables the Reset IC Initialization Disable SCSI Bus at Initialization. Note: The following options have no effect if the BIOS is disabled. Host Adapter BIOS Enable (default) Enables or disables the host...
Page 100: System Security
SCSI ID #0: Seagate ST3255ON SCSI ID #1 No device SCSI ID #2 No device SCSI ID #3 No device SCSI ID #4 NEC CD-ROM Drive SCSI ID #5 No device SCSI ID #6 No device SCSI ID #7 AIC-7850 Arrow Keys to Move Cursor, <Enter>...
Page 101: Login Ids And Passwords
2-56 Setup and Operation Login IDs and Passwords The system allows two user logins. Each one has a unique login ID, security privileges, and security feature settings. A system can be set up with one login who has full access or with two logins, where one has full access and one has limited access and Setup restrictions.
Page 102: System Board Switch And Jumper Settings
Setup and Operation 2-57 SYSTEM BOARD SWITCH AND JUMPER SETTINGS Figure Section 2-5 shows the factory settings and locations of the system board switches and jumpers. Switch and jumper setting explanations follow the figure. J39 (VRE Enable/Disable) J34 (Pipeline Enable/disable) J33 (Primary Cache Write-Back/Write- Through)
Page 103 2-58 Setup and Operation Table Section 2-21 System Configuration Switch Switch Function Factory Setting SW4-1 CMOS Clear ON: Clears CMOS OFF: Normal operation SW4-2 Processor Speed – Sets the speed of the processor. OFF (Image P100E) ON (Image P90E) OFF: 100/66 MHz ON: 90/60 MHz SW4-3 Reserved –...
Page 104: Jumper Settings
Setup and Operation 2-59 Power on the system. The system will beep. Power off the system. Reset SW4-1 to the OFF position. Replace the system unit cover and peripheral cables and turn on the system and run Setup (see Section 2, “Setting System Parameters”). Jumper Settings The system board contains three jumper plugs for enabling/disabling various functions.
Page 105 2-60 Setup and Operation Table Section 2-23 Cache, Pipeline, and Voltage Regulator Settings J34 Pipeline Configuration SW4-2 Setting J33 Cache Setting Setting J39 VRE Setting 90-MHz, VR 1 - 2 1 - 2 2 - 3 1 CPU 90 MHz, VR 2 - 3 2 - 3 2 - 3...
Page 106: Section 3 Options
SIMM memory, 3 1/2-inch hard disk drive, 5 1/4-inch devices), and a monitor. All options (except the monitor) require that the system unit top cover be removed. When installing the monitor, see “NEC SVGA Monitor” at the end of this section. INTERNAL OPTIONS When disassembling the system unit for option installation, follow these general rules.
Page 107: Cover Removal
Options Cover Removal Removal of the system unit’s top cover is required for installation of all options (except the monitor). Remove the top cover as follows. Power off and unplug the keyboard, mouse, power cord and all other peripheral cables attached to the system unit. Unlock the system unit top cover if locked.
Page 108 Options Slide the top cover toward the rear about one inch (see Figure Section 3-2). Lift the top cover up and off the system unit. Figure Section 3-2 Removing the Cover...
Page 109: Expansion Board(S)
Options Expansion Board(s) Expansion boards plug into edge connectors on the EISA/PCI-bus slots. There are three 16-bit EISA/ISA slots, one shared EISA/PCI-bus expansion slot, and one dedicated PCI-bus slot. See Appendix B for EISA and PCI connector pin assignments. Install expansion boards into the system unit as follows. Remove the top cover as previously described.
Page 110: Expansion Board Troubleshooting
Options Expansion Board Troubleshooting If a fault occurs at power-on, verify that the expansion board installation was performed correctly. One beep indicates that the computer has completed its power-on self-test. If intermittent beeping occurs, turn off the computer and try again. If the beeping persists, see “Troubleshooting”...
Page 111 Options dual processor SIMM memory Once the top cover is removed (as previously described), use Figure Section 3-4 to locate each of the system board option sockets. The following subsection provides the procedures for installing each option into the system board. Power Supply Diskette Server Management (J36)
Page 112: Dual Processor Installation
Image P100E). CAUTION: Heatsinks are required for dual processors. Heatsinks are available through NEC. Install a dual processor into the system board as follows. Remove the top cover and any expansion boards covering the dual processor socket as previously described.
Page 113 Options Jumper J34 Jumper J33 Processor Upgrade Secondary Cache Socket Socket Figure Section 3-5 Dual Processor Upgrade ZIF Socket and Jumpers Reset configuration jumpers J33 and J34 on the system board (see Figure Section 3-6). Set the jumper blocks over pins 2 and 3 on J33 and J34.
Page 114 Options Upgrade Socket Secondary Cache Socket Figure Section 3-6 Dual Processor Upgrade Jumper Settings Install the upgrade processor in the upgrade socket as follows. Locate the upgrade socket on the system board (see Figure Section 3-5 and Figure Section 3-6). CAUTION: The speed of the upgrade processor must match the speed of the factory installed processor (90- or 100-MHz).
Page 115 3-10 Options Align the upgrade processor with the socket as shown in Figure Section 3-7. Notched Corner of Chip Locking Lever Alignment Mark on System Board Figure Section 3-7 Aligning the Upgrade Processor Insert the processor into the socket. Lock the processor in place by swinging the socket lever down towards the socket until it locks in place.
Page 116 Options 3-11 Install the upgrade processor heat sink as follows. Align the heat sink over the processor as shown in Figure Section 3-8. Position the short end of the spring clip on the heat sink under the two tabs on the socket.
Page 117: Dual Processor Troubleshooting
3-12 Options Dual Processor Troubleshooting If a fault occurs at power-on, verify that the installation was performed correctly. One beep indicates that the computer has completed its power-on self-test. If intermittent beeping occurs, turn off the computer and try again. If the beeping persists, see Section 4, Maintenance and Troubleshooting.
Page 118 Options 3-13 Bank 3 Bank 2 Bank 1 Bank 0 Figure Section 3-9 Memory Expansion Board SIMM Banks Table Section 3-3 provides valid SIMM configurations for the computer.
Page 119 3-14 Options Table Section 3-3 SIMM Configurations Memory 1Mx36 2Mx36 4Mx36 8Mx36 Memory 1Mx36 2Mx36 4Mx36 8Mx36 Size (MB) SIMM SIMM SIMM SIMM Size SIMM SIMM SIMM SIMM...
Page 120: Simm Installation
Options 3-15 Table 3-3 SIMM Configurations (cont’d) Memory 1Mx36 2Mx36 4Mx36 8Mx36 Memory 1Mx36 2Mx36 4Mx36 8Mx36 Size (MB) SIMM SIMM SIMM SIMM Size SIMM SIMM SIMM SIMM SIMM Installation Install SIMM sticks into the memory expansion board as follows. CAUTION: Before handling a SIMM, discharge any static electricity by touching the metal frame on the system unit.
Page 121 3-16 Options Memory Expansion Board Bracket Bar Screws (Underside of Bracket Bar) Figure Section 3-10 Memory Expansion Board Removal Remove the memory expansion board from the system board’s memory expansion board connector at location J9 (see Figure Section 3-4). Set the memory expansion board on a non-conductive surface. Install the SIMM as follows.
Page 122 Options 3-17 Align the notched end of the SIMM with the correct end of the SIMM socket and insert it at an angle into the socket (see Figure Section 3-12). Carefully push the SIMM towards the metal clips. Using equal pressure at the ends of the SIMM, push it until it locks under the metal clips at the ends of the socket.
Page 123 3-18 Options Memory Expansion Board Bracket Bar Screws Figure Section 3-13 Memory Expansion Board Installation Replace any removed expansion boards. Check that all cables are out of the way of the top cover, then replace the top cover.
Page 124: Simm Troubleshooting
Options 3-19 SIMM Troubleshooting If a fault occurs at power-on, verify that the reassembly was performed correctly. One beep indicates that the computer has completed its power-on self-test. If intermittent beeping occurs, turn off the computer and try again. If the beeping persists, see Section 4, Troubleshooting and Repair.
Page 125: Installing Optional Storage Devices
3-20 Options INSTALLING OPTIONAL STORAGE DEVICES This subsection describes optional storage device installation procedures. Device Slots The system unit contains six storage device slots: one standard 3 1/2-inch accessible device slot that contains the standard 1.0-inch high 1.44-MB diskette drive three 5 1/4-inch accessible device slots for 1.6-inch high devices (one slot contains the standard IDE CD-ROM reader in hard disk configurations) two internal 3 1/2-inch device slots for 1.6-inch or 1.0-inch high devices (one slot...
Page 126: Diskette Drive Options
This dual-connector ribbon cable plugs directly into the system board at connector J2 in place of the standard cable. It can be purchased as an option from NEC or from your dealer or other computer hardware distributor.
Page 127: Hard Disk Drive Options
3-22 Options PCB (connectors and jumpers are attached to back of PCB) Power Connector Terminating Resistor Jumper Not Used Drive Address (0, 1, 2, 3) Signal Connector Front of Drive Figure Section 3-16 5 1/4-Inch, 1.2-MB Diskette Drive Hard Disk Drive Options There are two fast PCI-bus enhanced IDE interface connectors on the system board.
Page 128 Options 3-23 NOTE: NEC IDE hard disk drives are shipped with the jumpers set for: master, one drive installed. J6 Dual-Drive Emulation Jumper Block Spare (factory settings) Circuit Board Dual-Drive Emulation Mode Power Connector Signal Connector J5 Master/Slave Jumper Block...
Page 129: Scsi Device Settings
3-24 Options SCSI Device Settings A 3 1/2-inch x 1.6-inch, 2-GB SCSI hard disk drive is available for installation in the system. Configure SCSI device termination, motor start at power-on, termination power, and the SCSI ID in accordance with the following guidelines and procedures. The integrated SCSI-2 host adapter sets the termination on the system board end of the SCSI cable.
Page 130 Options 3-25 Termination Through Setup Not Terminated Internal SCSI Internal SCSI Cable Devices SCSI-2 Host Adapter Terminated SYSTEM BOARD Figure Section 3-18 SCSI Terminations for Internal Configurations Not Terminated Not Terminated Internal SCSI Devices External SCSI-2 Host Adapter SCSI Devices Terminated SYSTEM BOARD Terminated...
Page 131 3-26 Options See Figure Section 3-20 when setting the following: Termination power (J1) — The system board's SCSI-2 host adapter is factory set to supply termination power to the SCSI bus (pins 1 and 2 and pins 5 and 6 on J1 should be jumpered).
Page 132 Options 3-27 Table Section 3-5 2-GB SCSI Hard Disk ID Jumper Settings SCSI ID Pins 7-8 on J4 Pins 9-10 on J4 Pins 11-12 on J4 Open Open Open Shorted Open Open Open Shorted Open Shorted Shorted Open Open Open Shorted Shorted Open...
Page 133: 1/4-Inch Device Installation
3-28 Options IDE Cable Connector Cable Select Slave AUDIO IDE INTERFACE DC INPUT Master C.S.M R G G L 5V G G S.L.A Audio Output Power Configuration Connector Connector Jumpers Figure Section 3-21 Quad-Speed CD-ROM Reader Jumper Settings Cable select (C.S.) jumper is factory set to disabled (not jumpered). Slave (S.L.) jumper is for setting the CD-ROM reader as the slave device.
Page 134: Front Panel Assembly Removal
Options 3-29 Front Panel Assembly Removal Remove the front panel assembly from the chassis as follows. Remove the top cover as previously described. Remove the front panel assembly from the system unit as follows: Remove the four screws holding the front panel to the system; two screws on each side (see Figure Section 3-22).
Page 135 3-30 Options Remove the slot covers from the metal cover plates by pressing in on the panel tabs (see Figure Section 3-23). Store the slot covers for possible reuse if the storage device option is removed. Slot Cover Cover Tab (1 of 2) Figure Section 3-23 Removing the Slot Covers Remove the two screws holding each metal cover plate to the drive cage (see...
Page 136 Options 3-31 Cover Plate Screws Figure Section 3-24 Cover Plate Removal...
Page 137: 1/4-Inch Device Cage Removal
3-32 Options 5 1/4-Inch Device Cage Removal Remove the 5 1/4-inch device cage as follows. Remove the top cover and front panel assembly as previously described. NOTE: When installing a 3 1/2-inch hard disk drive into a 5 1/4-inch accessible device slot, a 5 1/4-inch hard disk bracket must first be attached to the 3 1/2-inch hard disk drive.
Page 138: 1/4-Inch Device Placement
Options 3-33 5 1/4-Inch Device Placement Install the storage device into the 5 1/4-inch device slot as follows. Remove the top cover, front panel assembly, and 5 1/4-inch device cage as previously described. NOTE: When installing a 3 1/2-inch hard disk drive into a 5 1/4-inch accessible device slot, a 5 1/4-inch hard disk bracket must first be attached to the 3 1/2-inch hard disk drive.
Page 139: 1/4-Inch Diskette Drive Cabling
5 1/4-Inch Diskette Drive Cabling Cable an optional 5 1/4-inch diskette drive as follows.In addition to the diskette drive option, a dual-connector signal cable (available from NEC or your hardware dealer) is required to install and configure the diskette drive.
Page 140: 1/4-Inch Device Cabling
Options 3-35 Locate the power connector coming from the power supply and plug the correct fitting power cable into the device power connector (see Figure Section 3-27). 1.2-MB Diskette Drive Connector Red Edge Power Cable Diskette Drive Signal Cable Figure Section 3-27 5 1/4-Inch Diskette Drive Cables Reconnect the power and signal cables to the CD-ROM reader and other devices (if installed).
Page 141 3-36 Options Power Power Cable Cable SCSI or IDE SCSI or IDE Cable Cable Red Edge Red Edge Figure Section 3-28 SCSI or IDE Device Cabling Reconnect the power and signal cables to the CD-ROM reader (if previously installed in hard disk configurations). NOTE: If you are installing a CD-ROM reader, plug in one of the available power cables coming from the power supply to the power connector...
Page 142: Finishing Up 5 1/4-Inch Storage Device Installation
Options 3-37 Finishing Up 5 1/4-Inch Storage Device Installation After you have installed the 5 1/4-inch storage device in the drive cage, proceed as follows to complete the installation procedure. Push the drive cage up against the chassis and secure it in place with the five previously removed screws.
Page 143: 1/2-Inch Drive Cage Removal
3-38 Options Internal 3 1/2-Inch Drive Cage Removal Remove the internal 3 1/2-inch drive cage as follows. NOTE: The internal 3 1/2-inch drive cage holds up to two 1.0-inch high devices or one 1.0-inch and one 1.6-inch high device. Remove the top cover as previously described. Tag and unplug the power and signal cables attached to any installed devices in the internal drive cage.
Page 144: Ide Hard Disk Drive Cabling
Options 3-39 Install the drive in an open bay in the drive cage. Be sure that the drive connectors are facing the inside of the chassis when reinstalled. Align the hard disk drive mounting holes with the mounting holes in the device cage (see Figure Section 3-30).
Page 145 3-40 Options On systems that come preconfigured with a hard disk drive installed, locate the middle connector on the IDE cable used by the installed drive. Plug the middle connector into the signal connector of the newly installed hard disk drive.
Page 146: Finishing Internal 3 1/2-Inch Drive Installation
Options 3-41 Power Power Cable Cable SCSI Cable SCSI Cable Red Edge Red Edge Figure Section 3-32 Internal SCSI Hard Disk Cabling Finishing Internal 3 1/2-Inch Drive Installation Replace the assemblies removed earlier and reconfigure the system as follows. Reinstall the internal 3 1/2-inch drive cage by reversing the steps of the procedures given earlier.
Page 147: Device Troubleshooting
3-42 Options Device Troubleshooting One beep indicates that the computer has completed its power-on self-test. If intermittent beeping occurs, turn off the computer and try again. If the beeping persists, see Section 4 “Troubleshooting and Repair.” Table Section 3-6 summarizes problems that may develop after installing a hard disk drive and lists in sequential order suggested corrective actions.
Page 148: Monitor Option
Options 3-43 Table 3-6 Optional 5 1/4-Inch Device Problems and Solutions (cont’d) Problem Symptom Solution Hard disk Hard disk drive lamp does not 1. Check cable connections between the malfunction light but hard disk drive can indicator panel and system board. be accessed.
Page 149 3-44 Options Connect the monitor to the computer as follows. Turn off the computer. Attach the monitor signal cable to the VGA monitor connector at the back of the computer (see Figure Section 3-33). The connectors are keyed to fit only in the correct position.
Page 150: Monitor Troubleshooting
Options 3-45 MONITOR TROUBLESHOOTING Use Table Section 3-7 to help isolate and repair monitor malfunctions. NOTE: The monitor and cable together are considered a whole-unit, field-replaceable assembly. Therefore, disassembly of the monitor is not recommended. Table Section 3-7 Monitor Problems and Solutions Problem Solution Power Lamp not lit...
Page 151: Section 4 Troubleshooting And Repair
NSRC (National Service Response Center) - questions other than products, spare parts or technical support Service Contracts TAC (Technical Assistance Center) - technical support for NASC and NEC sales representatives only TSC (Technical Support Center) - technical support for everyone else FastFacts™...
Page 152: Technical Support
NEC Technologies Technical Support Center (TSC) provides an E-mail service for Internet users besides the support listed in Table Section 4-1. Technical questions regarding NEC Technologies products can be sent over the Internet system to TSC. The Internet address is as follows: tech-support@nectech.com.
Page 153: Bios Customize Utility
BIOS UPDATE UTILITY The NEC Bulletin Board Service (BBS) provides users with information about system software and hardware. Use the NEC BBS to obtain the latest version of the BIOS Update utility (BUU) and for VGA video drivers. The Flash ROM allows the BIOS to be upgraded with the BIOS Update utility without re- moving the ROM.
Page 154 Section 2 Setup and Operation, for jumper information. If the BIOS upgrade is interrupted seethe next subsection for information on recovering the BIOS in the event of a cata- strophic failure has occurred. To log onto the NEC BBS, follow these steps: NOTE: First time users must answer a new user questionnaire.
Page 155: Error Messages
Troubleshooting and Repair To hang up and log off, follow these steps at the NEC Technologies Bulletin Board: Press (to continue). Enter Press (command for Goodbye/Hangup). Press Enter Error Messages Table Section 4-2 describes the possible error and warning messages that may be displayed when using the BIOS Update Utility.
Page 156 Troubleshooting and Repair When the system units are manufactured, each system board is identified with the system unit. If it becomes necessary to replace the system board, the unit model number, serial number, and system board revision can be restored in the non-volatile RAM (NVRAM) on the system board.
Page 157: Maintenance
Troubleshooting and Repair MAINTENANCE This subsection contains general information for cleaning and checking the computer's system unit, keyboard, and monitor. The system unit, keyboard, and monitor require cleaning and checking at least once a year, and more often if operating in a dusty environment. No other scheduled maintenance or lu- brication is required.
Page 158: Keyboard Cleaning
Troubleshooting and Repair Keyboard Cleaning When necessary, inspect and clean the inside of the keyboard. Proceed as follows: Remove the six screws holding the keyboard enclosure together (see Figure 4-1). NOTE: The keyboard and cable together are considered a whole-unit, field-replaceable as- sembly.
Page 159: Mouse Cleaning
Troubleshooting and Repair Mouse Cleaning Under normal conditions, the mouse has a self-cleaning mechanism that prevents a buildup of dust or lint around the mouse ball and tracking mechanism. Periodically, however, the mouse ball must be cleaned. Use the following procedure to clean the mouse. Disconnect the mouse from the system unit.
Page 160: Troubleshooting
4-10 Troubleshooting and Repair TROUBLESHOOTING This subsection provides information that helps isolate and repair computer malfunctions at the field level. Step-by-step instructions on diagnosing and solving computer hardware problems are provided. If disassembly is required, see Sections 5 and 6. Connector pin assignments are explained in the Appendix B.
Page 161 Troubleshooting and Repair 4-11 Table Section 4-3 Problems and Solutions Problem Symptom Solution Power supply Any one or more of the 1. Perform steps 1 through 4 listed in malfunction following conditions could this table under No Power. occur: Front panel lamps out, diskette 2.
Page 162 4-12 Troubleshooting and Repair Table Section 4-3 Problems and Solutions Problem Symptom Solution Diskette drive does Lamp on drive panel does not 1. Check power and signal cable not work light when diskette is loaded. connections between diskette drive, system board, and power supply. 2.
Page 163 1. Adjust the monitor's synchronization knobs. 2. Check that the monitor's resolution matches the video setting or the video driver used (see Section 1). The NEC SVGA Monitor supports up to 1024 x 768. Most monitors don't support resolutions above 640 x 480 (VGA monitors).
Page 164: Diagnostic Output And Beep Codes
4-14 Troubleshooting and Repair Table Section 4-3 Problems and Solutions Problem Symptom Solution Keyboard or mouse Monitor has prompt, but cannot 1. Check that keyboard/mouse is malfunction input data. plugged in. 2. Check password utility (see Section 2). 3. Disable password utility (see Section 2).
Page 165 Troubleshooting and Repair 4-15 Table Section 4-5 Diagnostic Output and Beep Codes Code Beeps Description of Test or Failure at POST initialize chipset registers with initial POST values set in POST flag initialize CPU registers initialize cache to initial POST values initialize I/O initialize power management load alternate registers with initial POST values...
Page 166 4-16 Troubleshooting and Repair Table Section 4-5 Diagnostic Output and Beep Codes Code Beeps Description of Test or Failure at POST shadow video BIOS ROM display copyright notice display CPU type and speed test keyboard set key click if enabled enable keyboard 2-2-3-1 test for unexpected interrupts...
Page 167 Troubleshooting and Repair 4-17 Table Section 4-5 Diagnostic Output and Beep Codes Code Beeps Description of Test or Failure at POST shadow option ROMs set up power management enable hardware interrupts set time of day check key lock initialize typematic rate erase F2 prompt scan for F2 key stroke enter Setup...
Page 168: Disassembly And Reassembly
4-18 Troubleshooting and Repair DISASSEMBLY AND REASSEMBLY This subsection contains step-by-step disassembly procedures for the Image P90E and Image P100E computers. The hard disk drive, 3 1/2-inch diskette drive, and CD-ROM reader are installed and included in these disassembly procedures. Reassembly is the reverse of disassembly.
Page 169: Top Cover Removal
Troubleshooting and Repair 4-19 When disassembling the system unit, follow these general rules. Disconnect all peripherals. When handling boards or chips, touch the system unit frame to discharge static. Do not disassemble parts other than those specified in the procedure. All screws are Phillips-head, unless otherwise specified.
Page 170 4-20 Troubleshooting and Repair Screws Screws Screws Screws Keylock Keylock Figure Section 4-3 Cover Screws Slide the top cover toward the rear about one inch (see Figure Section 4-4). Lift the top cover up and off the system unit. Figure Section 4-4 Removing the Cover...
Page 171: Expansion Board Removal
Troubleshooting and Repair 4-21 Expansion Board Removal Remove any installed expansion board(s) using Figure Section 4-5 and the following steps. Remove the top cover as previously described. Disconnect any cables leading from the expansion board(s). (The multimedia configuration has an audio cable attach sound board.) Remove the screw from the expansion slot bracket (see Figure Section 4-5).
Page 172: Front Panel Assembly Removal
4-22 Troubleshooting and Repair Front Panel Assembly Removal Remove the front panel assembly from the chassis as follows. Remove the top cover as previously described. Remove the seven front panel screws from inside the top cover Remove the four screws holding the front panel to the system; two screws on each side (see Figure Section 4-6).
Page 173: Power Button Cover Removal
Troubleshooting and Repair 4-23 Power Button Cover Removal Remove the power button cover from the front panel as follows. Remove the top cover and front panel as previously described. Release the four power button tabs from the inside of the front panel and push the tabs through the front panel (see Figure Section 4-7).
Page 174: Slot Cover And Metal Cover Plate Removal
4-24 Troubleshooting and Repair Slot Cover and Metal Cover Plate Removal Remove the slot covers and the metal cover plates from the chassis as follows. Remove the top and front covers as previously described. Release the slot cover tabs and remove the slot covers from the metal cover plate (see Figure Section 4-9).
Page 175 Troubleshooting and Repair 4-25 Cover Plate Screws Figure Section 4-9 Metal Cover Plate Removal...
Page 176: Speaker Assembly Removal
4-26 Troubleshooting and Repair Speaker Assembly Removal Remove the speaker from the chassis as follows. Remove the top cover as previously described. Unplug the speaker connector from J10 on the system board. Slide the speaker over the raised spot and out from the speaker tabs (see Figure Section 4-10).
Page 177: Memory Expansion Board Removal
Troubleshooting and Repair 4-27 Memory Expansion Board Removal Remove the memory expansion board from the system board as follows. Remove the top cover and any full size expansion boards as previously described. Remove the two screws holding the memory expansion board to the underside of the bracket bar (see Figure Section 4-11).
Page 178 4-28 Troubleshooting and Repair Remove the SIMM modules from the memory expansion board as follows. Spread apart the two clips at each end of the SIMM stick (the clips are part of the memory expansion board's connectors). The SIMM stick tilts forward, allowing the post to slide out of the hole in the SIMM stick (see Figure Section 4-12).
Page 179: 1/4-Inch Device Cage Removal
Troubleshooting and Repair 4-29 5 1/4-Inch Device Cage Removal Remove the 5 1/4-inch device cage from the system unit as follows. Remove the top cover, front panel as previously described. Remove the five device cage screws shown in Figure Section 4-13, holding the cage to the chassis.
Page 180: 1/4-Inch Device Removal
4-30 Troubleshooting and Repair 5 1/4-Inch Device Removal Remove a 5 1/4-inch device from the 5 1/4-inch device cage as follows. Remove the top cover, front panel, and 5 1/4-inch device cage as previously de- scribed. Remove the four 5 1/4-inch hard disk drive screws; two on each side (see Figure Section 4-15).
Page 181: 1/2-Inch Hard Disk Drive Removal
Troubleshooting and Repair 4-31 3 1/2-Inch Hard Disk Drive Removal Remove the 3 1/2-inch hard disk drive as follows. Remove the top cover as previously described. Unplug the hard disk drive power cable and signal cable from the hard disk drive (see Figure Section 4-17).
Page 182 4-32 Troubleshooting and Repair Remove the two screws holding the drive cage to the chassis support bracket (see Figure Section 4-19). 3 1/2-Inch Drive Cage Screws Chassis Support Bracket Screws Figure Section 4-19 Removing 3 1/2-Inch Drive Cage Screws Remove the 3 1/2-inch drive cage from the chassis. Remove the hard disk drive from the 3 1/2-inch drive cage;...
Page 183: 1/2-Inch Diskette Drive Removal
Troubleshooting and Repair 4-33 3 1/2-Inch Diskette Drive Removal Remove the 3 1/2-inch diskette drive as follows. Remove the top cover as previously described. Unplug the diskette drive power cable and signal cable from the diskette drive (see Figure Section 4-23). NOTE: When reinstalling the diskette drive, note that all power cables are keyed to fit only in the correct position.
Page 184 4-34 Troubleshooting and Repair Remove the three 3 1/2-inch diskette drive bracket screws shown in Figure Sec- tion 4-25. 3 1/2-Inch Diskette Drive Bracket Screws Figure Section 4-25 Diskette Drive Bracket Screws Slide the 3 1/2-inch diskette drive bracket out of the system unit. Remove the four 3 1/2-inch diskette drive screws;...
Page 185: Power Supply Removal
Troubleshooting and Repair 4-35 Power Supply Removal Remove the power supply as follows. Remove the top cover as previously described. Unplug the two power cables attached to the system board's connectors. Unplug the power cables from all installed devices. Remove the two screws securing the power button to the front of the system unit (see Figure Section 4-21).
Page 186: Real-Time Clock Battery Removal
4-36 Troubleshooting and Repair Slide the power supply toward the front of the system unit to release the two tabs at the top of the chassis and remove the power supply from the system unit. Tabs Screws Power Supply Figure Section 4-22 Power Supply Screws Real-Time Clock Battery Removal To remove the RTC battery from the system board, follow these steps.
Page 187: System Board Removal
Troubleshooting and Repair 4-37 RTC/Battery Figure Section 4-23 Real-Time Clock Battery System Board Removal System boards are identified with the system unit at the factory. After replacing the system board, the unit model number, serial number, and system board revision should be restored in the NVRAM.
Page 188 4-38 Troubleshooting and Repair Remove and label all cables connected to the system board. Appendix B provides the locations of the connectors. Remove the nine screws that hold the system board to the system unit chassis. Remove the system board out the side of the system unit. 1 of 9 Figure Section 4-24 System Board Connectors and Screws...
Page 189: Illustrated Parts Breakdown
4-39 Illustrated Parts Breakdown This subsection contains the illustrated parts breakdown (IPB) and NEC part numbers for the Image P90E and Image P100E computer. Table Section 4-6 lists the field-replaceable parts for the computer. Figure Section 4-25 shows the illustrated parts breakdown.
Page 190 4-40 Troubleshooting and Repair Table 4-6 Image P90E/P100E Field-Replaceable Parts List† (cont’d) Item Description Part Number LED/Reset switch assembly 158-050705-002 5 1/4-inch metal blank panel cover 158-050705-012 5 1/4-inch plastic blank panel cover 158-050705-004 Diskette drive signal cable 158-050578-001 Quad-Speed IDE CD-ROM reader 158-050817-000 IDE signal cable 158-050562-002...
Page 191 Troubleshooting and Repair 4-41 Figure Section 4-25 Image P90E/P100E Illustrated Parts Breakdown* ____________ * This data was prepared February 1995. For an up-to-date listing of spare parts, please call FastFacts (800) 366-0476 and order document number 42181048...
Page 192 4-42 Troubleshooting and Repair Table Section 4-7 lists the Image P90E and Image P100E options. Table Section 4-7 Image P90E/P100E Options* Description Part Number 4-MB SIMM Upgrade Kit (1 MB x 36-bit)* 158-053409-008 8-MB SIMM Upgrade Kit (2 MB x 36-bit)* 158-053409-009 16-MB SIMM Upgrade Kit (4 MB x 36-bit)* 158-053409-010...
Page 193 Troubleshooting and Repair 4-43 Table Section 4-8 lists Image P90E and Image P100E documentation and packaging. Table Section 4-8 Image P90/P100E Documentation and Packaging* Description Part Number Image P90E/P100E User's Guide 819-181047-000 EZSCSI User’s Guide 819-181184-000 Image P90E/P100E Video Training Kit 158-056099-024 Image P90E/P100E Service and Reference Manual 819-181048-000...
Page 194: Appendix A Specifications
Appendix A Specifications This appendix provides the specifications for the system unit, power supply, diskette drives, hard disk drives, and CD-ROM reader. SYSTEM UNIT SPECIFICATIONS Table A-1 lists system unit specifications. Table Appendix A-1 System Unit Specifications Item Specification Dimensions and Weight System Unit Width: 8.5 inches (216 mm)
Page 195 Specifications Table Appendix A-1 System Unit Specifications Item Specification Peripheral Interface PS/2-style keyboard connector, rear panel PS/2-style mouse connector, rear panel Two RS-232C serial ports, rear panel Parallel printer port, rear panel VGA port, rear panel Processor Intel Pentium 90-Mhz (Image P90E) or 100-Mhz (Image P100E) Cache Memory 16 KB of primary cache (8 KB data, 8 KB instruction) integrated in the processor, 256 KB secondary cache...
Page 196: Power Supply Specifications
Specifications POWER SUPPLY SPECIFICATIONS Table Appendix A-2 lists the input power specifications for the power supply. Table Appendix A-2 Power Supply Input Requirements Features 200 W Input frequency 50 Hz (47 Hz ~ 53 Hz) 60 Hz (57 Hz ~ 63 Hz) Input voltage 100 ~ 120V 8.0A 200 ~ 240V 5.0A...
Page 197 Specifications Table A-4 Specifications for Diskette Drives (cont’d) Features OSDA-90C 1.44-MB FD1158C 1.2 MB (Optional) Number of Cylinders Number of Tracks 160 (80 tracks x 2 sides) 160 (80 tracks x 2 sides) Recording Method MFM/FM Access Time Average seek 94 ms 94 ms Minimum seek...
Page 198: Hard Disk Drive Specifications
Specifications HARD DISK DRIVE SPECIFICATIONS Specifications for the 1-GB IDE hard disk drive are given in Table Appendix A-8. Table Appendix A-10 gives specifications for the 2-GB SCSI hard disk. Table Appendix A-8 Specifications for 1-GB IDE Hard Disk Drive Features 1 -GB (1080-MB) Physical Configuration...
Page 199 Specifications Table Appendix A-10 Specifications for 2-GB SCSI Hard Disk Drive Features 2 -GB (2147-MB) Physical Configuration Formatted Capacity 2,1474 MB Actuator Type Rotary voice-coil Number of Disks Data Heads 11 data, 1 servo Servo Dedicated Tracks per Inch (tpi) 4048 tpi Bytes per Sector Cylinders per Drive...
Page 200: Cd-Rom Specifications
Specifications CD-ROM SPECIFICATIONS Specifications for the IDE CD-ROM reader are given in Table Appendix A-12. Table Appendix A-12 Quad-Speed IDE CD-ROM Specifications Feature Specification CD-ROM Section Data Capacity 12 cm disc Mode 1: 540 MB/disc Mode 2: 630 MB/disc 8 cm disc Mode 1: 180 MB/disc Mode 2: 210 MB/disc Built-in buffer...
Page 201 Specifications Table A-7 Quad-Speed IDE CD-ROM Specifications (cont’d) Feature Specification General Specifications Power Supply Current 5V (average) Stop mode: 0.25 A Play mode: 0.45 A 12V (average) Stop mode: 0.4 A Play mode: 0.4 A Seek mode: 1.2 A 12V (peak) Seek mode: 1.5 A Dimensions (Half Height Drive) Height...
Page 202: Appendix B Connector Pin Assignments
Appendix B Connector Pin Assignments This appendix describes the system board connector pin assignments. Figure Appendix B-1 shows the locations of the system board connectors. Table Appendix B-1 identifies the connector function with the connector number. Descriptions of the connectors are provided in the following subsections.
Page 203 Connector Pin Assignments Table Appendix B-1 System Board Connector Descriptions Function Connector Number Type Video port 15 pin female sub D-shell Printer/SCSI ports 25 pin female sub D-shell and 50-pin D-shell (stacked connector) Serial port 1 9 pin male D-shell Keyboard/mouse 6-pin PS/2 style connector Serial port 1...
Page 204: Serial Interface Connectors
Connector Pin Assignments SERIAL INTERFACE CONNECTORS Serial interface signals are output from the system board through two 9-pin COM port connectors. The 9-pin, D-subconnectors are located at the rear of the system unit. Pin locations and pin assignments for the two serial interface connectors are shown in Figure Appendix B-2.
Page 205: Parallel Interface Connector
Connector Pin Assignments PARALLEL INTERFACE CONNECTOR The system has a 25-pin parallel port on the system board. Parallel interface specifications for this port conform to the IBM-PC interface. Pin locations and pin assignments for the parallel interface connector are shown in Figure Appendix B-3. Figure Appendix B-3 Parallel Interface (P2)
Page 206: Vga Interface Connector
Connector Pin Assignments VGA INTERFACE CONNECTOR Video signals are output from the system board through a VGA interface connector, which is a 15-pin, D-subconnector (VESA VS890803-2) located at the rear of the system unit. Table Appendix B-2 shows the connector pin locations and pin assignments. Table Appendix B-2 Video Connector (P1) Pin Assignments Signal...
Page 207: Speaker Connector
Connector Pin Assignments SPEAKER CONNECTOR Speaker connector pin locations and pin assignments are shown in Table Appendix B-3. Table Appendix B-3 Speaker Connector (J10) Pin Assignments Signal Speaker data out +5 Vdc Speaker data out KEYBOARD AND MOUSE CONNECTORS The keyboard and mouse use standard PS/2 connectors. Pin assignments are given in Table Appendix B-4.
Page 208: Hard Disk Drive Busy Lamp Connector
Connector Pin Assignments HARD DISK DRIVE BUSY LAMP CONNECTOR Hard disk drive busy lamp connector pin assignments are given in Table Appendix B-6. Table Appendix B-6 Hard Disk Drive Lamp Connector (J11) Pin Assignments Signal Hard disk busy Hard disk busy FAN CONNECTOR Fan connector pin assignments are given in Table Appendix B-7.
Page 209: Diskette Drive Interface Connector
Connector Pin Assignments DISKETTE DRIVE INTERFACE CONNECTOR Table Appendix B-9 provides the pin assignments for the diskette drive interface. Table Appendix B-9 Diskette Drive Connector (J2) Pin Assignments Ground Pin Signal Pin Signal Name FDHDIN — Not used — FDEDIN —...
Page 210: Ide Interface Connectors
Connector Pin Assignments IDE INTERFACE CONNECTORS All signal levels in the IDE interface are TTL compatible. A logic 1 is a signal whose volt- age level is between 2.0 and 5.0 V. A logic 0 is a signal measuring between 0.00 V and 0.70 V.
Page 211: Scsi Interface Connector
B-10 Connector Pin Assignments SCSI INTERFACE CONNECTOR Table Appendix B-11 provides the pin assignments for the system board’s internal SCSI-2 port (J14). Table Appendix B-11 SCSI-2 Port (J14) Pin Assignments Signal Signal Ground thru Ground Ground Ground Termpwr Ground thru- Ground Ground Attention...
Page 212: Simm Sockets
Connector Pin Assignments B-11 SIMM SOCKETS Table Appendix B-12 provides the J1 through J8 SIMM sockets pin assignments. Table Appendix B-12 SIMM Socket Pin Assignments Signal Signal Signal RAS2 CAS0* CAS2* CAS3* CAS1* PD0 (N/C) RAS0 PD1 (N/C) PD2 N/C PD3 N/C * CAS0 = Bank 0 CAS1 = Bank 1...
Page 213: Ima Connector
B-12 Connector Pin Assignments IMA CONNECTOR Table Appendix B-13 provides the pin assignments for the Image Memory Access (IMA) connector on the system board. Table Appendix B-13 IMA Connector (J38) Pin Assignments Signal Signal Signal Signal IXFS IDAT2 IXLS IDAT3 IXMAD DB10 +12V...
Page 214 Connector Pin Assignments B-13 Table B-14 PCI Expansion Slot Pin Assignments Signal Signal –PCINT1 –PCIINT2 –PCIINT4 Reserved No connection Reserved Reserved No connection Reserved Reserved –SPCIRST PCLKE –AGNT –REQA Reserved AD30 AD31 +3.3V AD29 AD28 AD26 AS27 AD25 AD24 +3.3V AD22(IDSEL) –CBE3 +3.3V...
Page 215 B-14 Connector Pin Assignments Table B-14 PCI Expansion Slot Pin Assignments Signal Signal –FRAME –IRDY –TRDY +3.3V –DEVSEL –STOP +3.3V –PLOCK SDONE –PERR –SB0 +3.3V –SERR +3.3V AD15 –CBE1 +3.3V AD14 AD13 AD11 AD12 AD10 –CBEO +3.3V +3.3V –SREQ64 –SACK64...
Page 216 Index keyboard port, B-6 mouse, B-6 parallel port, B-4 Addressing, 1-13 PCI-bus expansion, B-12 Advanced menu, 2-17 power lamp, B-6 Architecture, 1-7 power supply, B-5 Asset Management, 4-5 reset button, B-7 serial port, B-3 SIMM, B-11 Beep codes, 4-14 speaker, B-6 BIOS, 1-10 VGA monitor port, B-5 asset management, 4-5...
Page 217 Index-2 Drive cage, 3-32 hard disk drives, 3-22 Drives system board, 2-57 diskette, 1-28, 3-21 hard disk, 1-28, 3-22 Dual processor, 3-5 Keyboard, 1-29 EISA bus, 1-4, 1-9, 1-23 Lamps, 2-3 E-mail, 4-2 Legend bar, 2-9 Error messages, 4-5 Locking card resources, 2-41 Exit menu, 2-27 Login ID, 2-24, 2-55 Expansion boards, 3-4...
Page 218 Index-3 Peripheral menu, 2-18 interrupts, 1-22 Pin assignments, B-1 layout, 3-6, B-1 Plug and Play, 2-21 memory, 1-3, 1-21, 3-12 Power supply, 1-28 option sockets, 3-6, B-1 removal, 4-35 processor, 1-2, 1-9 specifications, A-3 removal, 4-37 Processor, 1-2, 1-9 switch, 2-57 video, 1-23 System components, 1-1 System configuration, 2-5...
Page 219 (For United States Use Only) FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Page 220 BATTERY REPLACEMENT A lithium battery in your computer maintains system configuration information. In the event that the battery fails to maintain system configuration information, NEC recommends that you replace the battery. WARNING: There is a danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

This manual is also suitable for:

Image p90e

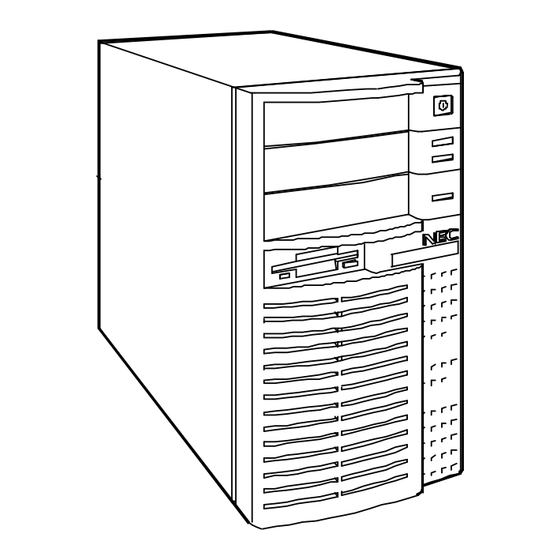

NEC IMAGE P100E Service Manual

Table of Contents

Table of Contents

Section 1 Technical Information

Setup and Operation

Section 3 Options

Section 4 Troubleshooting and Repair

Appendix A Specifications

Appendix B Connector Pin Assignments

Quick Links

Chapters

Troubleshooting

Related Manuals for NEC IMAGE P100E

Summary of Contents for NEC IMAGE P100E

This manual is also suitable for:

Table of Contents
