Chapter 3
Connecting power and devices
SMART Board 6055 and 6065 connector panel
SMART Board 6065-V2 and 6075 connector panel
Connecting power
Connecting the room computer
Connecting cables for guest laptops
Connecting external speakers
After mounting the SMART Board 6000 series interactive flat panel but before setting it up, you
need to connect it to power, the room computer and other devices.
SMART Board 6055 and 6065 connector panel

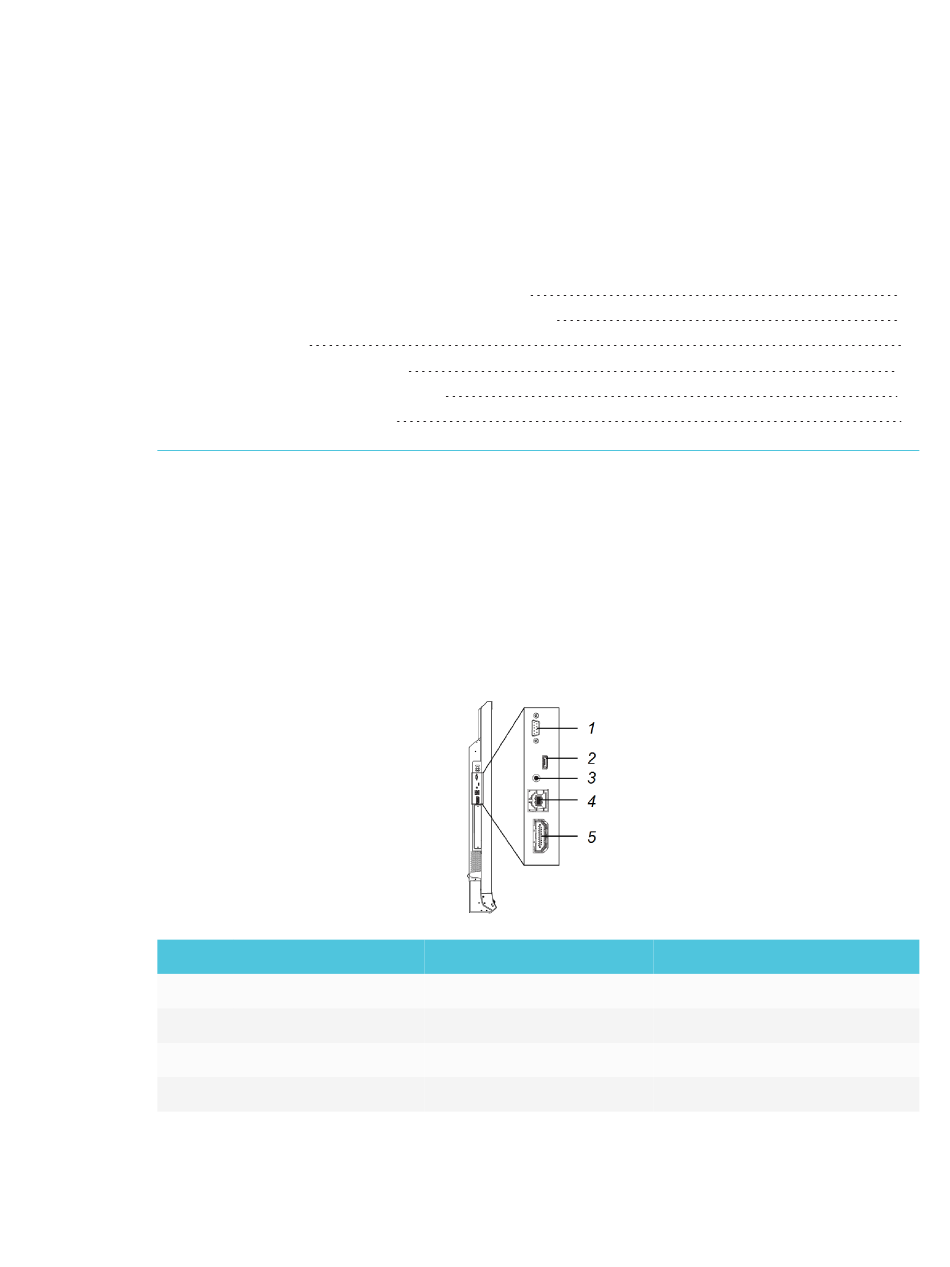

The following diagram and table present the connectors on SMART Board 6055 and 6065
interactive flat panels:
No. Connector
1 RS-232
2 USB Micro-A
3 Stereo 3.5 mm
4 USB Type-B
17 smarttech.com/kb/170642
Connects to
Room control system
[N/A]
External speakers
Room computer (touch)
Notes
See page 55.
This connector is a service port.
See page 21.
See page 20.
17
18
19
20
20
21
