Audio Adjustment
Knob
❻
AFV
Mute
❼
①②③④⑤
❽
T-Bar

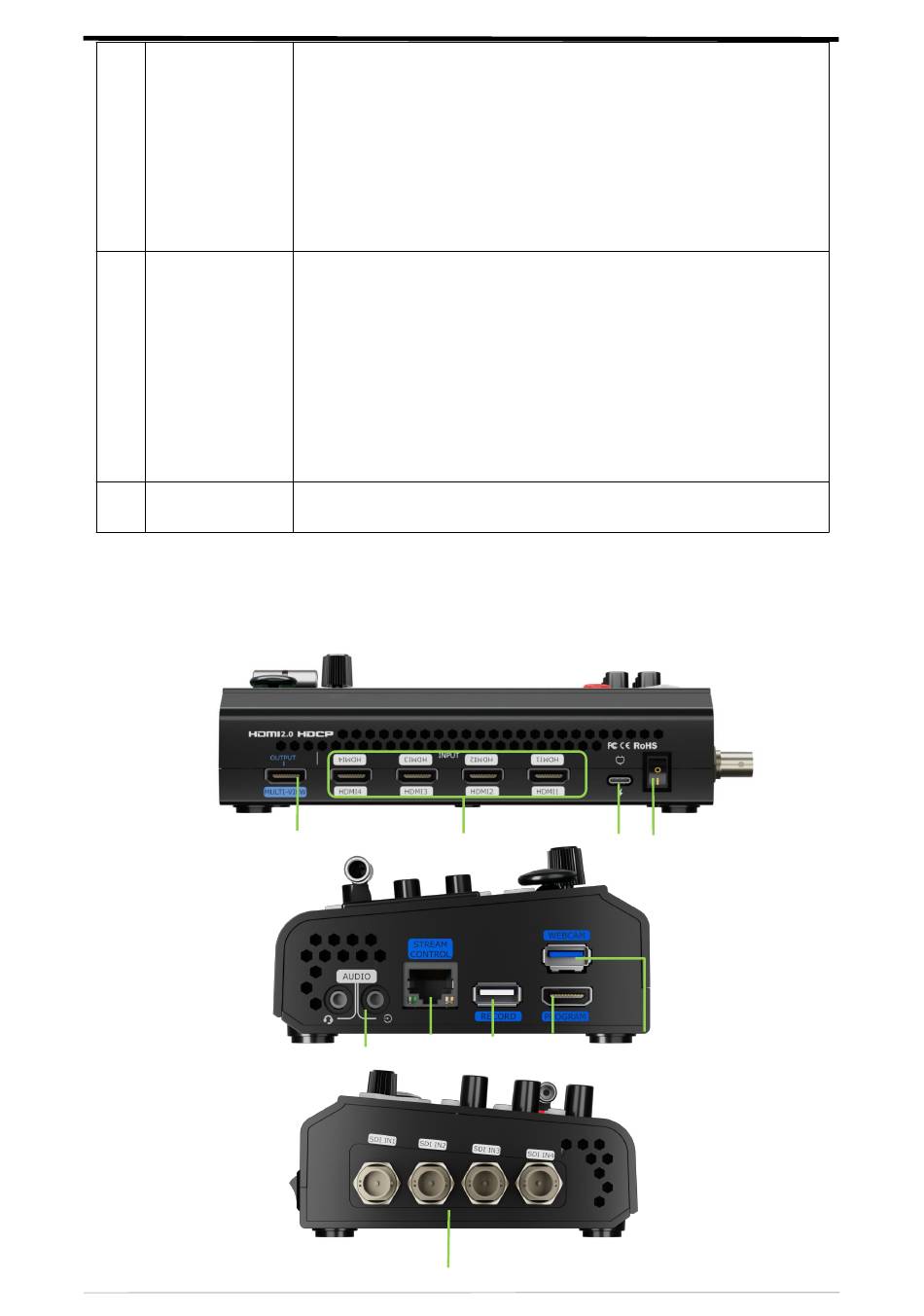

1.2.3 Interface Panel

mini-ISO
Audio Adjustment Knob:
○ The knobs with digital logos are used to adjust the volume of the input signals HDMI
1~4 (embedded audio). Tap "AFV" to enable the audio-follow-video function of the
current channel.
○ The left bottom knob controls the analog audio input. Tap the button to mute and tap
again to cancel the mute.
○ The right bottom knob is for the program output volume control. Tap the button to
mute and tap again to cancel the mute.
● Press button 1~5 above to switch the dedicated input directly to the program output.
● Press button 1~5 below to switch the Preview signals according to the layer selected.
● Press "CUT"to switch between PRE and PGM.
● Press "AUTO"to switch the layer effects between the PRE and PGM.
● Button unlit: no input signal
● Button lit white: an input source loaded but unselected
● Button lit green: preview output status
● Button lit red: program output status
● Switch manually between the preview and program outputs according to the selected
switching effect.
❶
❷
❻
❺
❿
User Manual
❸ ❹
❾
❼ ❽
