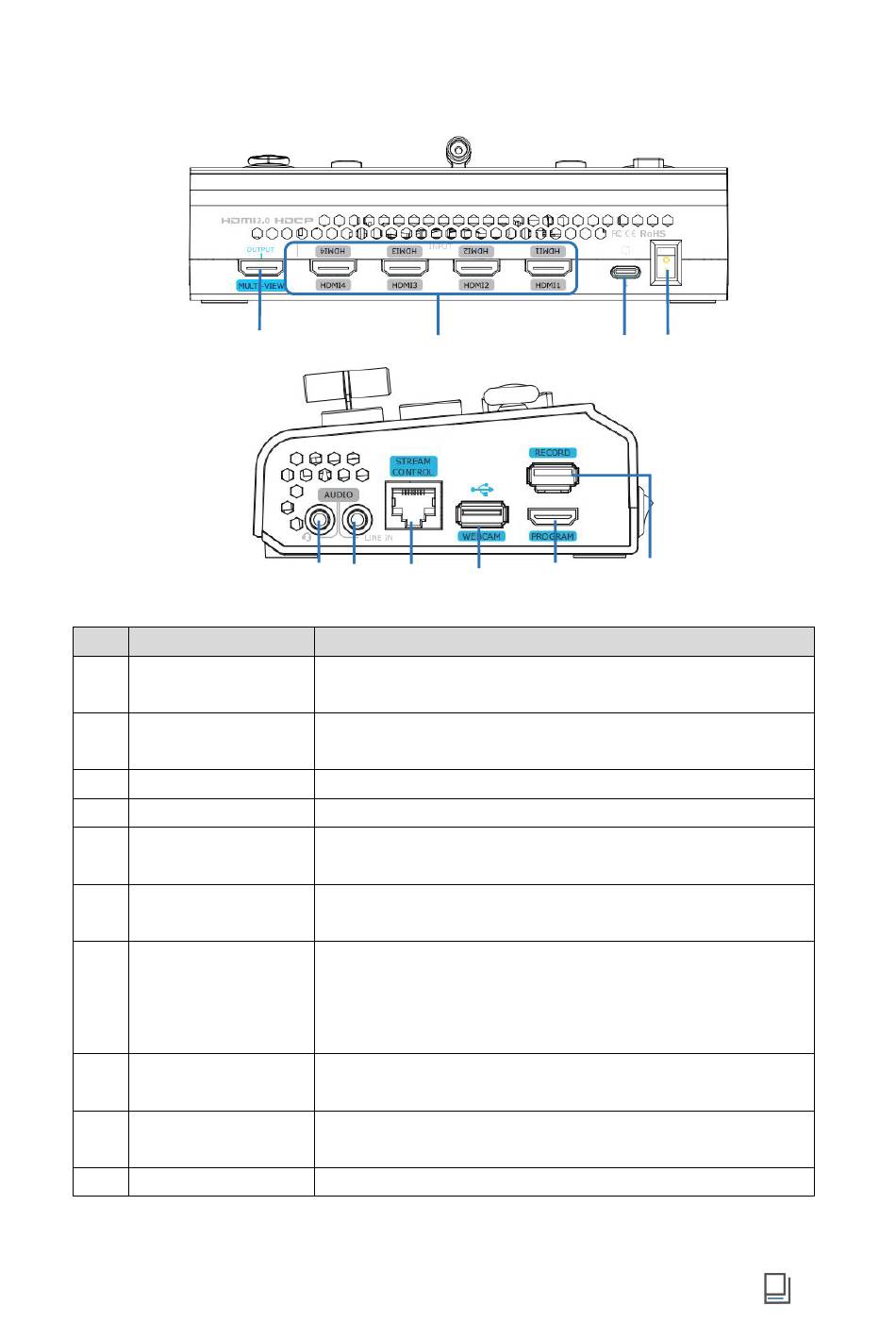

Interface Panel - RGBlink mini-pro v3 Quick Start Manual

No. Item
❶ MULTI-VIEW Output
❷
HDMI 1~4 Inputs
❸ USB-C Power Socket
❹
Power Switch
❺ MIC In & Audio Out
❻ Line In
❼ Ethernet Port
❽ WEBCAM
❾
PROGRAM Output
❿
RECORD
www.rgblink.com

Interface Panel

❶
❺ ❼
❻
Description
Default as multi-view output, can set as Program, HDMI 1~4
or AUX output.
● Four HDMI input channels for connecting HDMI sources.
● 4K resolution and downward compatible with all resolution.
PD protocol, 12V/1.5A.
Rocker switch to power on or off the device.
Support one passive MIC input and one audio output via
2-in-1 audio split cable.
Active audio input, connect to mobile phone, computer or
audio console.
● Control：Connected to PTZ camera for direct control.
● Stream：Access to internet for live streaming.
● APP：Connecet to the same ethernet range of PC, tablets,
and smartphones for APP control.
USB Stream Output: Capture signal via third party streaming
software and push to live broadcasting websites.
Default to output real-time scene, which can be set as
Multi-view Preview or Test Pattern.
Connect to SSD to record audio and video from Program.
❷
❾
❽
❸
❹
❿
