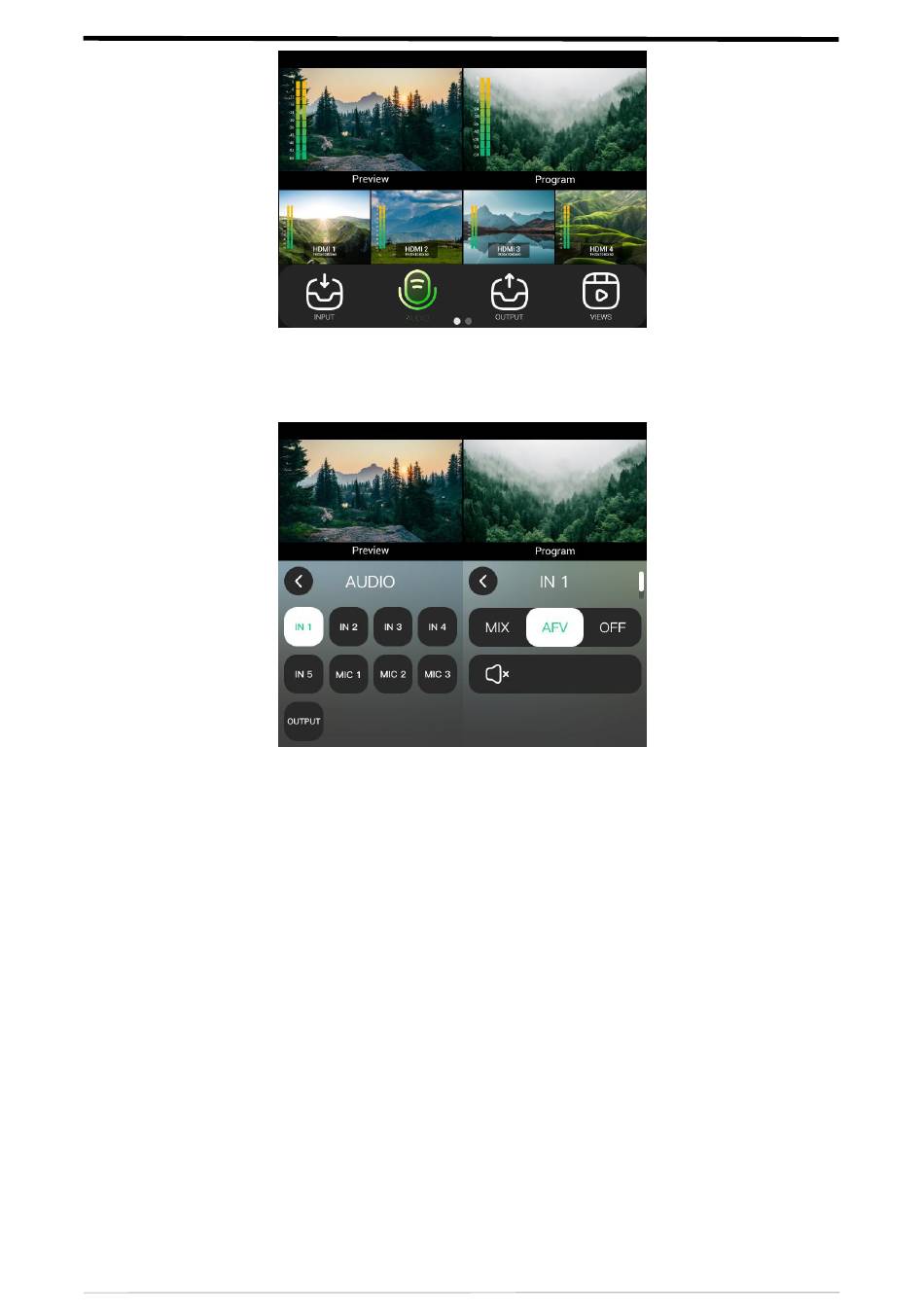

When you enter the input audio screen, you can select the input signal type as shown in the
following picture.

3.7.1 HDMI/SDI Input

The mini-ISO supports simultaneous mixing output of up to eight audio channels, including 4
HDMI/ SDI embedded audio, 1 NDI/media/UVC input, MIC1, MIC2, and MIC3
.
The mini-ISO supports embedded audio and external audio mixing and its 4 HDMI inputs and 4
SDI inputs support embedded audio input. If a channel is selected as a mix, it will always be heard
at the Program output.
In this interface, you can adjust the volume level of HDMI/SDI (embedded audio).
