SEAKEEPER CONNECTBOX USER'S MANUAL
PRODUCT CONNECTBOX
CONNECTBOX FUNCTIONS
The ConnectBox was developed to integrate with the multifunction display (MFD), minimizing
clutter by eliminating the need for dedicated Seakeeper components at the helm. The
ConnectBox (Figure 1) allows the user to perform the following operations:
Start or stop the Seakeeper motor
•
Observe spool-up status
•
Turn stabilization on or off
•
Control ConnectBox LED brightness (Four modes: off, dim, medium, and bright)
•
Control DHCP mode of ConnectBox
•
• Update software or transfer data
Page 3 of 27
Document # 90769-1

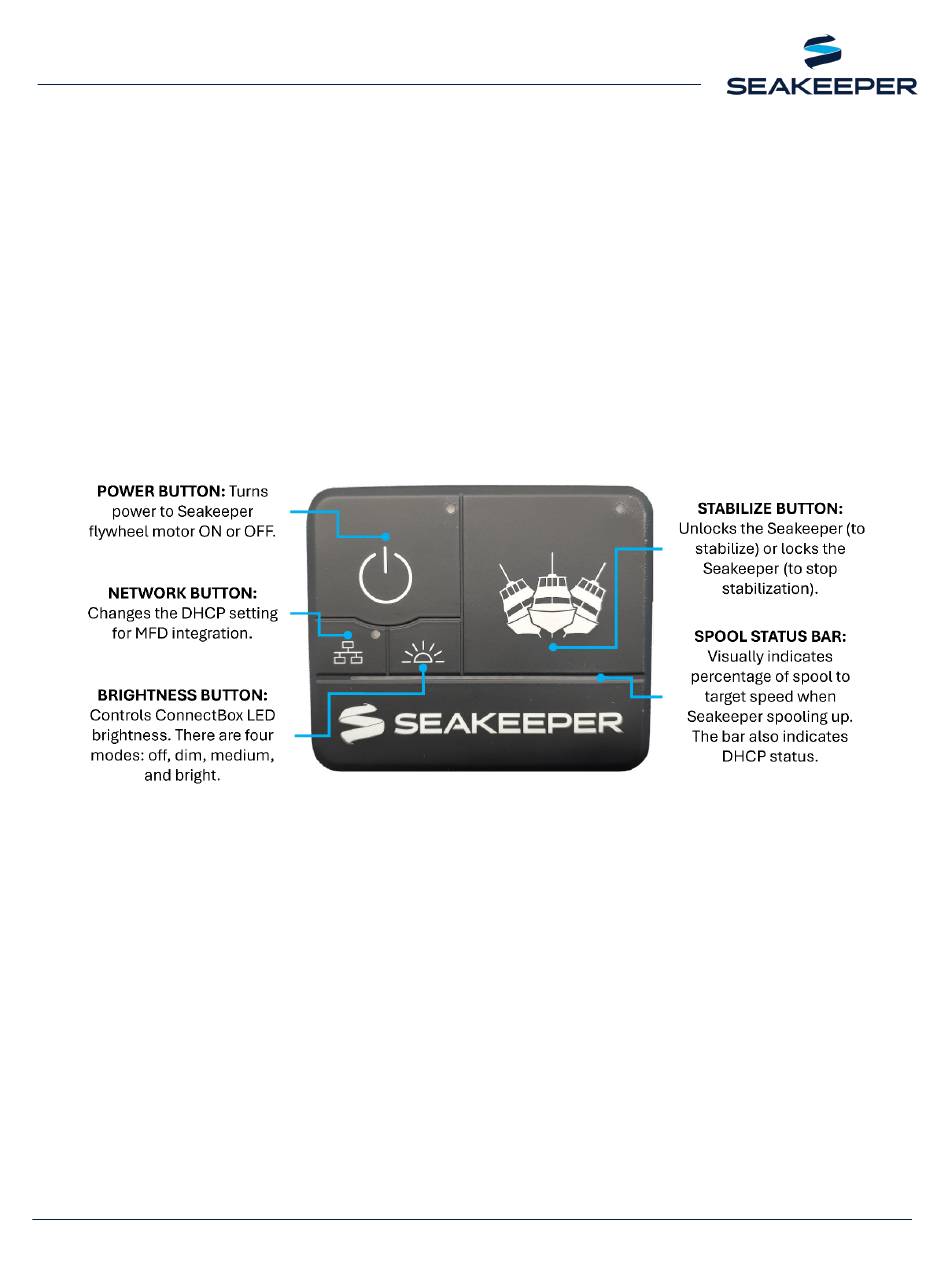

Figure 1: ConnectBox user interface buttons and indications
