SEAKEEPER CONNECTBOX USER'S MANUAL
PRODUCT CONNECTBOX
By default, ConnectBoxes are configured as DHCP Off with Seakeeper ID=1. The following steps
are recommended during initial commissioning to avoid the 'Duplicate Seakeeper instances'
warning.
1. Power up just one Seakeeper.
2. Set the DHCP Server mode (On or Off) based on the type of MFD the Seakeeper will
connect to.
3. Using the method described earlier, change the Seakeeper ID to a value that is...
previously not assigned and
•
different from "1".
•
4. Repeat steps 1 and 2 until all units have been configured with unique IDs.

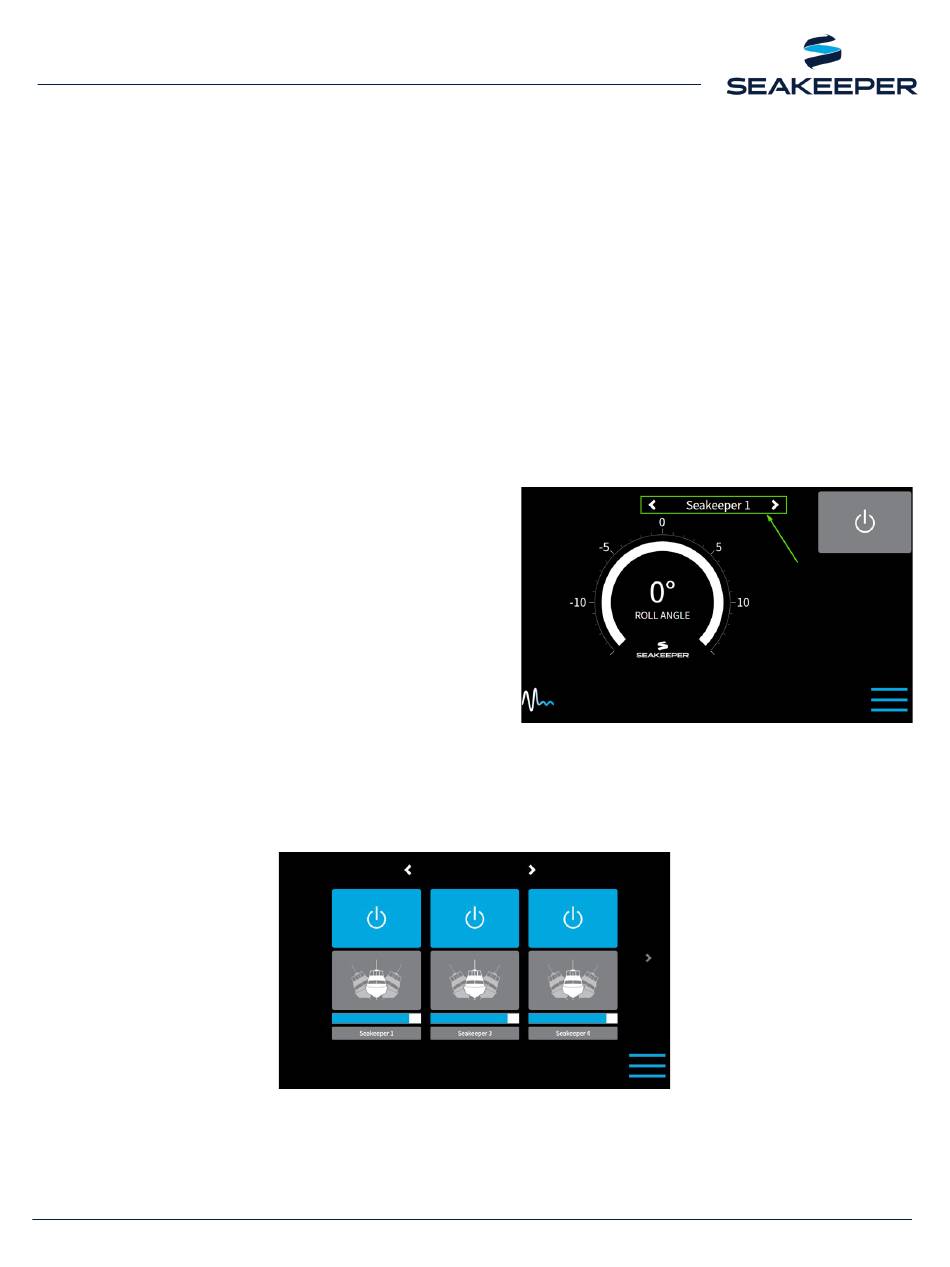

On the MFD Seakeeper application, a banner at the
top indicates the specific Seakeeper ID being
monitored and controlled. Navigating to other
Seakeeper instances is achieved by either selecting
the arrows in the banner or swiping on the screen
left or right (Figure 30).
While on the Home page for the first Seakeeper
instance, swiping right (or using the left arrow)
reveals the page shown in Figure 31. This page is
useful for monitoring the status and controlling
multiple Seakeeper units from the same MFD
location. When more than three Seakeeper units are on the network, swiping right reveals
additional Seakeeper instances.
Page 22 of 27
Document # 90769-1
Figure 31: Seakeeper control panel
displaying the multiple Seakeepers
Figure 30: Seakeeper instance (ID) banner
