System Tab
The System tab displays the MFD integration settings that are programmed at installation.
Additionally, the user may view the Seakeeper to NMEA 2000 connection status on this tab.
GPS Tab
The GPS tab displays the selected device providing GPS data to the Seakeeper for operation.
When multiple GPS devices are connected to the NMEA 2000 backbone, users may view them
using the up and down arrows. The Seakeeper will automatically use the device with the lowest
error signal.
If an MFD with internal GPS functions provides the GPS source for the Seakeeper, the MFD must
be connected to an NMEA 2000 backbone; the Seakeeper will not receive Speed over Ground
(SoG) signals through the ethernet.
Page 16 of 27
Document # 90769-1

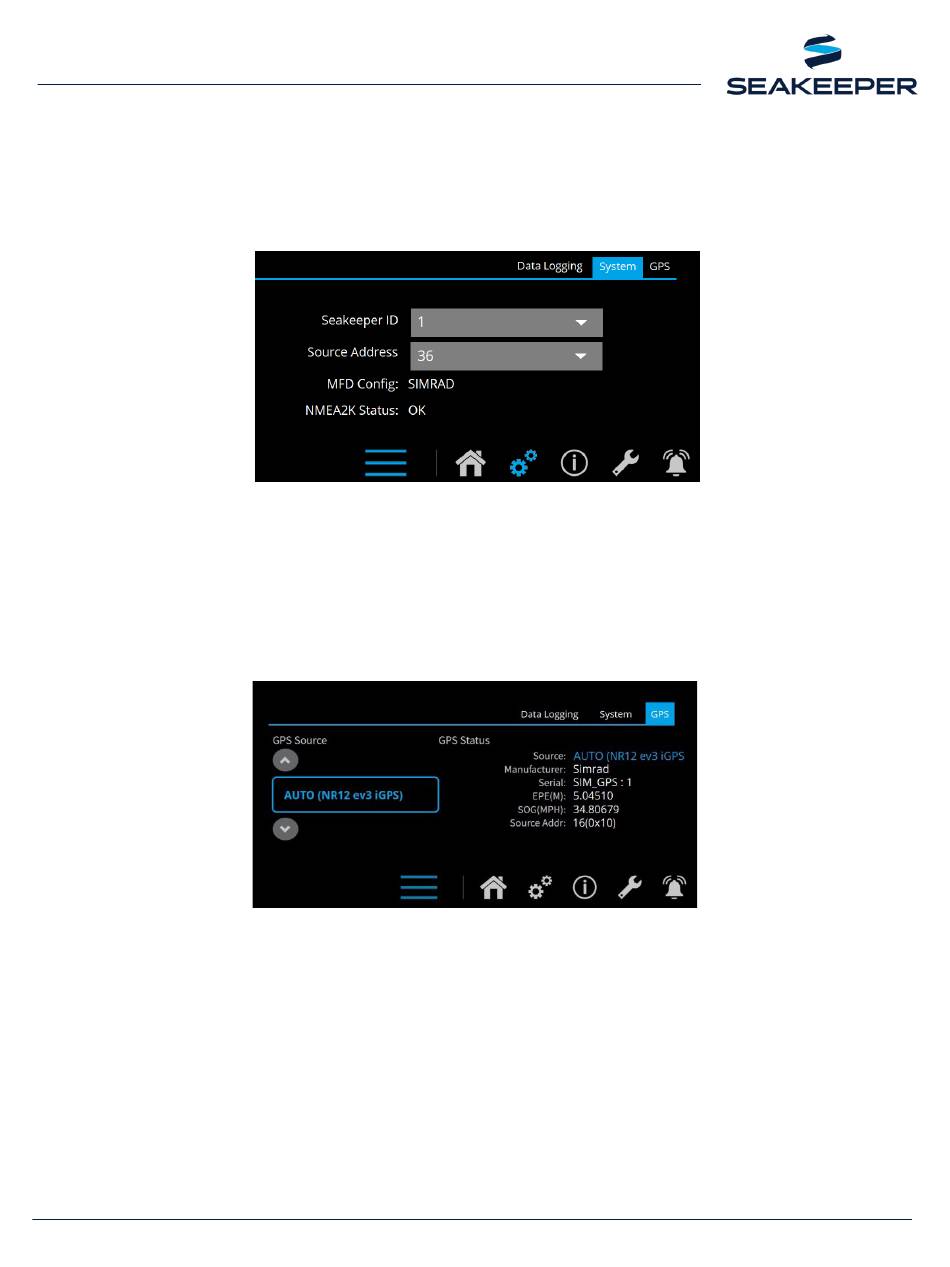

Figure 18: System Tab
Figure 19: GPS Tab
