SEAKEEPER CONNECTBOX USER'S MANUAL
PRODUCT CONNECTBOX
FURUNO CONNECTIVITY
As with other MFD brands, the ConnectBox can integrate with most Furuno MFD models
through the Ethernet interface. Connection is made possible through the Seakeeper-provided
Ethernet 10 or 25 m (32.8 or 82 ft) extension cable (P/N 30330 / 30355) and the 2 m (6.5 ft)
Furuno RJ45 adapter cable (P/N 20506). The Furuno Ethernet Hub101 is required hardware in
most Furuno installations when connecting more than one Ethernet component to the
compatible MFD.
Once the hardware is connected, cycle DC control power to the Seakeeper. Press the
ConnectBox network button for 10 seconds or until the spool bar LEDs strobe from right to left
to indicate the DHCP server is OFF.
Figure 13A: Press ConnectBox network
button for 10 seconds
If the spool bar strobes from left to right or there is no response, press and hold the ConnectBox
network button for another 10 seconds or until the spool bar LEDs strobe from right to left.
Verify the Seakeeper app populates on the Furuno home screen.
Page 12 of 27
Document # 90769-1

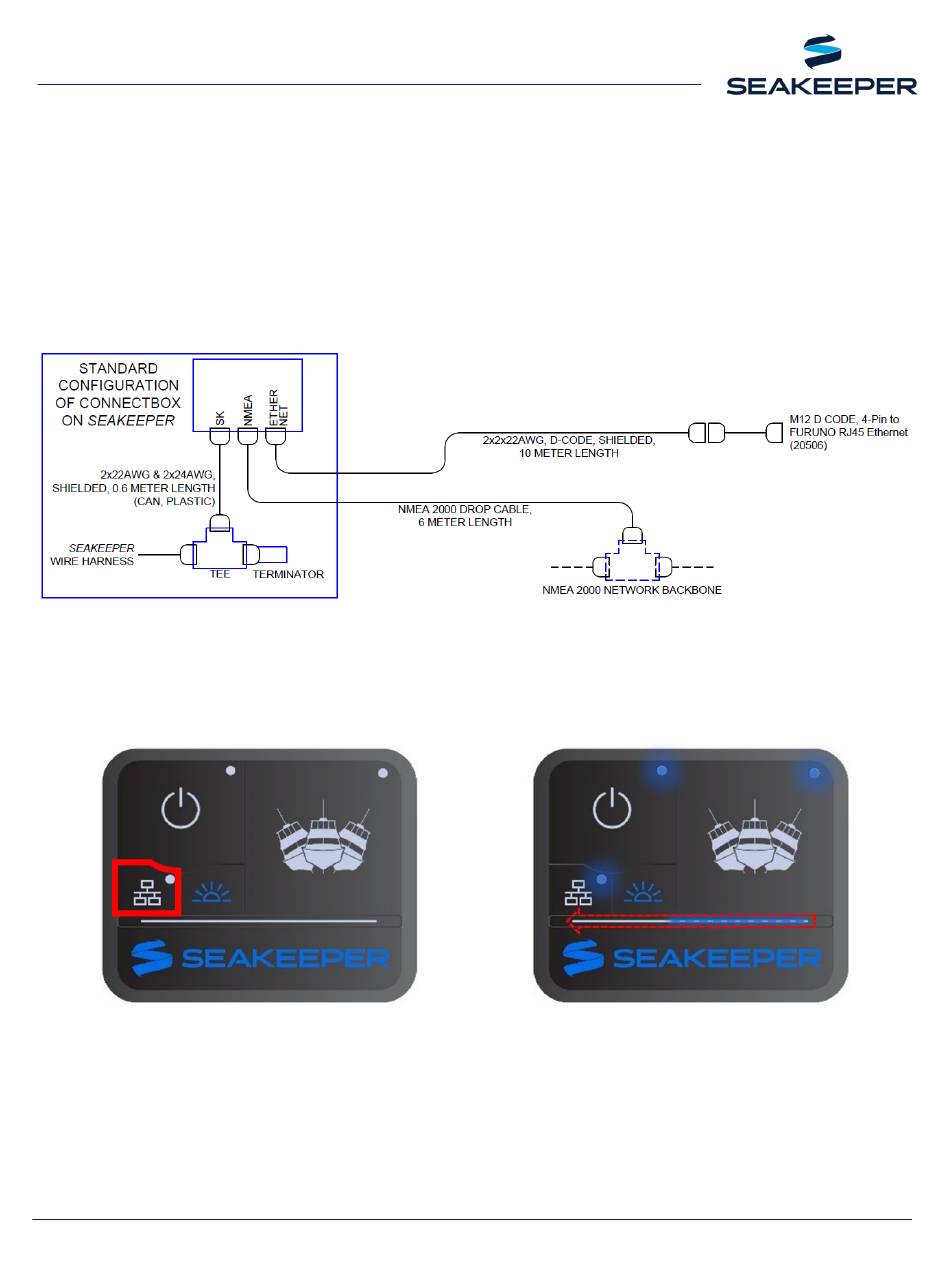

Figure 12: Furuno Connection Schematic
Figure 13B: Spool bar LEDs will strobe
right to left for DHCP OFF.
