INSTALLATION MANUAL
MAY 2020, Revision 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1 and is the answer not in the manual?

Questions and answers

Dennis McLawhorn
February 26, 2025

Question for information. Have always been taught that when drilling & bolting equipment down that whatever the size of hole drilled and tapped for securing that you should have the same amount of metal on each side of the bolt being drilled and tapped into the plate for proper strength of the securing plate. In you case they use a 1/2" bolt for example shouldn't there be at least a 1/2" of metal on each side of the bolt being used. As for a mechanical standard.

0

Related Manuals for Seakeeper 1

Summary of Contents for Seakeeper 1

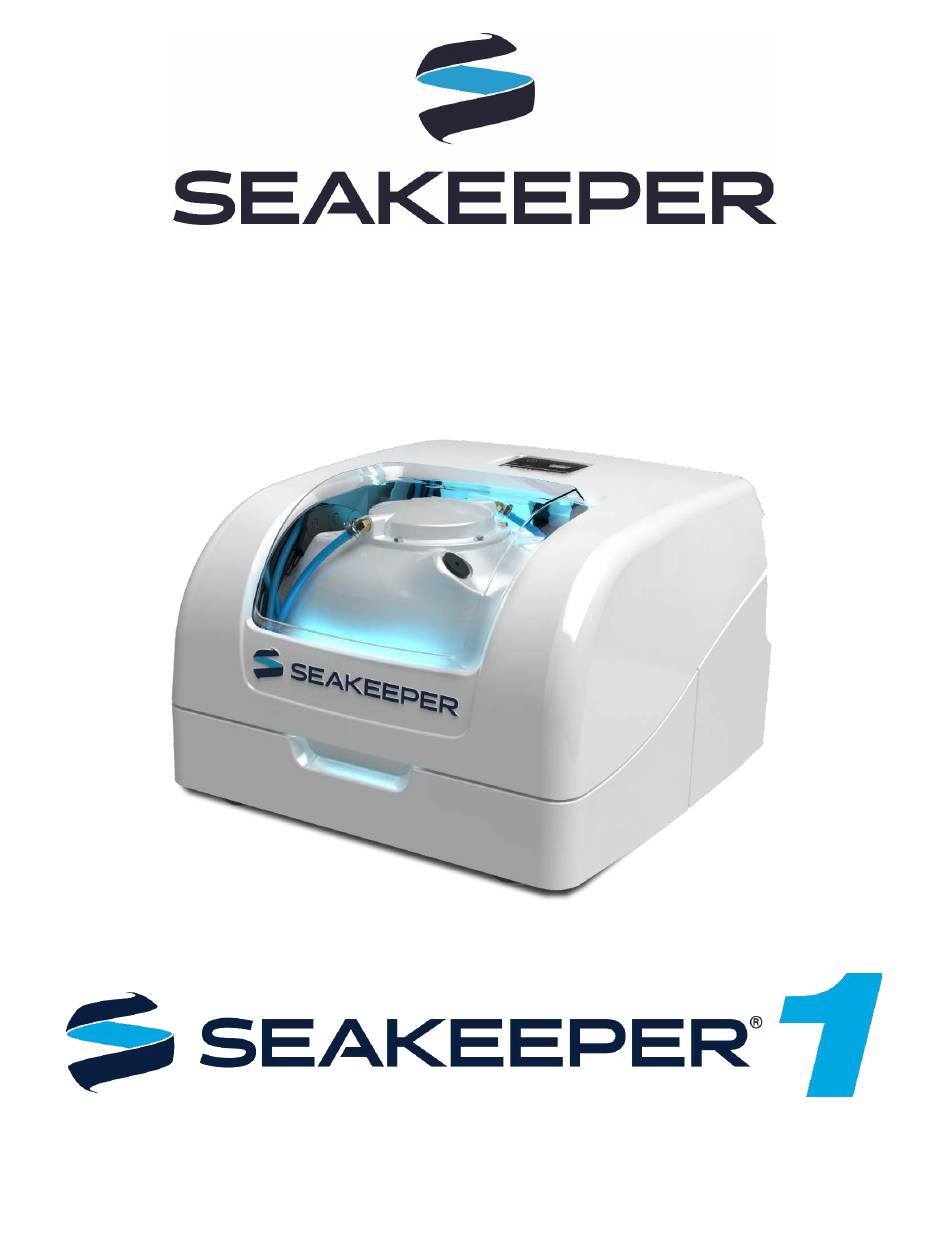

  • Page 1 INSTALLATION MANUAL MAY 2020, Revision 1...
  • Page 2 INSTALLATION MANUAL MAY 2020 CONTENTS PAGE Section 1: Mechanical Installation…………………………2 – 9 Section 2 – Electrical Installation…………………………..10 – 20 Section 3 – Cooling Installation…………………………….21 – 24 Section 4 – Installation Requirements…………………….25 – 26 Section 5 – Installation and Start-Up Checklist………….27 – 29...
  • Page 3 This document is intended to give details and guidance for a boat builder or equipment installer to properly install the Seakeeper 1. The Seakeeper 1 can produce forces of up to 1,515 lbs. (6.74 KN) in the vertical direction, 2,248 lbs. (10.0 KN) in the longitudinal direction, and 1,697 lbs. (7.55 KN) in the lateral direction at each of the four mounts.
  • Page 4 3. While handling / installing the Seakeeper assembly, protect exposed hydraulic brake cylinder rods (see Figure 1) from scratches or damage as this could lead to premature seal failure and oil leaks. 4. Exercise care to protect any exposed surfaces as damage to finish could lead to early appearance degradation of the Seakeeper.
  • Page 5 Seakeeper noise has been measured under steady state conditions (no wave load) in Seakeeper's Engineering Lab and in our Factory Demo Boat. The steady state noise at 1 meter is typically in the range of 62-64 dBC un-weighted. As the frequencies emitting the highest sound pressures are low (like other marine machinery), it is recommended that the Seakeeper be installed in an enclosed space such as a leaning post / seat, bilge, center console, or machinery space.
  • Page 6 1. Use a Seakeeper-provided shipping crate for transport, part number 12098. The overall dimensions of a fully-packed Seakeeper 1 crate are 27.5” L x 27.5” W x 23.25” H (0.70 L x 0.70 W x 0.60 H m) with a weight of 430 lbs (195 kg), including accessories.
  • Page 7 2 degrees longitudinally. In addition, the four areas on top of the structure on which the Seakeeper 1 will rest need to be co-planar within .06” (1.5 mm) to minimize potential distortion of Seakeeper isolation mounts when installed.
  • Page 8 1.4.2 TRANSFER OF HOLES TO BOAT STRUCTURE The following instructions should be used to establish the Seakeeper 1 bolt pattern on the hull structure that has been designed to accept the Seakeeper 1, based on the information provided in Drawing Nos. 90599 and 90516.
  • Page 9 Sealant is not required between the snubbing washer faces and isolator bushings. 2. Lower the Seakeeper 1 onto the lower snubbing washer on the vessel structure and align over drilled holes. Figure 7: Seakeeper 1 Installation 3.
  • Page 10 Product: Document #: Rev: Page: INSTALLATION MANUAL SEAKEEPER 1 90519 9 of 29 Section 1: MECHANICAL INSTALLATION Figure 8: Seakeeper 1 Bolt Stack Arrangement Exploded (left) / Installed (right) (P/N 90599)
  • Page 11 TB 90573 – Seakeeper 1 Display Options • TB 90478 – Garmin and Seakeeper Compatibility TB 90479 – Raymarine and Seakeeper Compatibility TB 90480 – Simrad and Seakeeper Compatibility 90600 – Seakeeper 1, 5” Touch Display Figure 1: Seakeeper 1 Isometric View with Electrical Connections...
  • Page 12 • 90511 – Seakeeper 1 Cable Block Diagram • The following figures show the electrical equipment included with the Seakeeper 1 Hardware Scope of Supply (Dwg No. 90510): Figure 2: ConnectBox Figure 3: Cable 1 & 2, 2AWG, 12VDC Input / Cable 6, 4AWG Ground...
  • Page 13 2.2.2 HIGH CURRENT 12 VDC POWER CONNECTION INSTRUCTIONS 1. CABLE 1 and CABLE 2, 2AWG conductors, connect to the high current DC input power are supplied as length 0.35m. Approximately 0.1m is routed within the gyro frame. 2. Customer-supplied 2AWG cables must be spliced in series in accordance with the Crimping Instructions in Drawing No.
  • Page 14 2.3.2 SEAWATER PUMP 12 VDC POWER INPUT CONNECTION INSTRUCTIONS 1. Connect CABLE 7 (P/N: 30327) to Seakeeper 1 “SW Pump DC In” as shown in Drawing No. 90511 with overcurrent protection corresponding to seawater pump selected. 2. Connect the 14AWG plus conductor (red) through dedicated overcurrent protection device (customer-supplied), maximum of 15A, to dedicated battery isolation switch.
  • Page 15 SEAWATER PUMP 12 VDC POWER OUTPUT CONNECTION INSTRUCTIONS 1. Connect CABLE 5 to the Seakeeper 1 “SW Pump 12VDC Out” for DC power output to the seawater pump. CABLE 5 is a 2 x 16AWG cable, 16 ft (5m) length, with a size 16 female Deutsch plug.
  • Page 16 • 2.4.1 SEAKEEPER 1 TO VESSEL GROUND CONNECTION INSTRUCTIONS 1. Connect CABLE 6, 4AWG, PE cable to vessel grounding bus to comply with: a. EM/IEC 60204-1 Clauses 6.3.3 and 8.2.3. b. ABYC E-11 July 2018 Clauses 11.5.2 and 11.16.1. 2. Butt splice CABLE 6, 4AWG (green) to a 4 AWG ground wire (customer-supplied) suitable in length for the specific installation, as shown in the following Figure.
  • Page 17 2. Install an optional Seakeeper 5” Touch Display. A Seakeeper display is required with the installation of a Seakeeper 1 to support the full functionality of the unit through the Seakeeper App in addition to the ConnectBox. The Seakeeper App provides an interface for controlling the Seakeeper 1 or viewing the Settings, Service, Info, and Alarm pages.
  • Page 18 Section 2: ELECTRICAL INSTALLATION 2.5.2 CONNECTING TO AN OPTIONAL COMPATIBLE MFD 1. The Seakeeper 1 can be connected to a variety of available MFD systems. Refer to the Technical Bulletins Section of the Seakeeper Technical Library for manufacturer specific MFD compatibility technical bulletins.
  • Page 19 The CAN Cable Assembly, CABLE 3, is a 10 m shielded cable that connects the ConnectBox to the 5” Touch Display. CABLE 3 must be routed and installed in the vessel from the Seakeeper wire harness CAN Tee to the Tee Adapter at the Seakeeper 5” touch display, included with P/N 90600.
  • Page 20 SEAKEEPER 1 NMEA 2000 NETWORK CONNECTION The Seakeeper 1 requires a connection to the vessel’s NMEA 2000 network backbone. The Seakeeper 1 will monitor information on the NMEA network to support and optimize the performance of the Seakeeper 1. 1. Connect Seakeeper-supplied CABLE 11 to the customer-supplied NMEA 2000 tee adapter on vessel’s NMEA 2000 backbone.
  • Page 21 Additional MFD compatibility will be added as new integrations become available. Please contact Seakeeper for additional information. b. Seakeeper MFD compatibility cable part numbers can be found in the relevant technical bulletin for the specific MFD, listed above. 2. OPTIONAL: CONNECTBOX HELM MOUNTING KIT a.
  • Page 22 30331 – DC Seawater Pump, Seakeeper 1 Assembly • The Seakeeper 1 is shipped with the cooling circuit filled and ready for use. The Seakeeper 1 requires connection to a raw water pump, referred to as the seawater pump, to cool the closed loop cooling circuit on the unit.
  • Page 23 An optional seawater pump can be purchased through Seakeeper, P/N 30331. 2. Seawater connections on the Seakeeper heat exchanger mate with 1/2-inch (13 mm) hose. 3. The seawater pump is powered by CABLE 5, via “SW Pump 12 VDC Out” on the Seakeeper 1, as outlined in Section 2.
  • Page 24 Seawater Pump, Seakeeper 1 Assembly, shown in the following Figure. 2. The Seakeeper Seawater Pump is a 24 VDC pump operated at 12 VDC for the Seakeeper 1 and maintains a seawater flow of approx. 2.5 GPM (9.5 LPM) at 12V DC.
  • Page 25 Section 3: COOLING INSTALLATION ADDING COOLANT 1. The Seakeeper 1 cooling system is filled to proper level when shipped, with a mixture of 50% ethylene glycol and 50% distilled water. 2. The coolant reservoir should be filled with colored coolant mixture, as shown in the following Figure.
  • Page 26 25 of 29 Section 4: INSTALLATION REQUIREMENTS INTRODUCTION The Installation Requirements section outlines the components and tools needed for the Seakeeper 1 installation that are not included within the scope of supply. REQUIRED SUPPLIES FOR SEAKEEPER INSTALLATION Table 1 outlines the customer-supplied components required for the Seakeeper 1 installation:...
  • Page 27 90519 26 of 29 Section 4: INSTALLATION REQUIREMENTS TOOLS REQUIRED FOR INSTALLATION Table 2 outlines the tools and equipment required for the Seakeeper 1 installation: Table 2: Tools and Equipment Required for Seakeeper 1 Installation Item Description Hoist, Forklift, or Crane...
  • Page 28  Clearances around Seakeeper meet service and operating specifications and no obstructions are within the Seakeeper envelope.  Seakeeper 1 Bolt-In Kit is installed (P/N 90599), includes: M14-2 x 94mm Hex Head Bolt, M14 wedgelock washer, upper snubbing washer, isolation mount tube sleeve, and lower snubbing washer at each corner.
  • Page 29 ELECTRICAL CHECKLIST (SECTION 2) High Current 12VDC Power Source: CABLE 1 & 2  Butt splice CABLE 1 and CABLE 2 to customer supplied 2AWG B+ and B- conductors to allow for routing to 12VDC power source. Butt splice instructions can be found in the Seakeeper 1 Cable Block Diagram (90511).
  • Page 30 5.1.3 COOLING CHECKLIST (SECTION 3)  Purchase seawater pump for Seakeeper 1 to provide 2 – 4 GPM (7.6 – 15.2 LPM) with a max overcurrent protection rating of 15A. Optional seawater pump can be purchased through Seakeeper, P/N 30331.
