PD27/28/29/30 INSTALLATION INSTRUCTIONS
SVR DEVICE

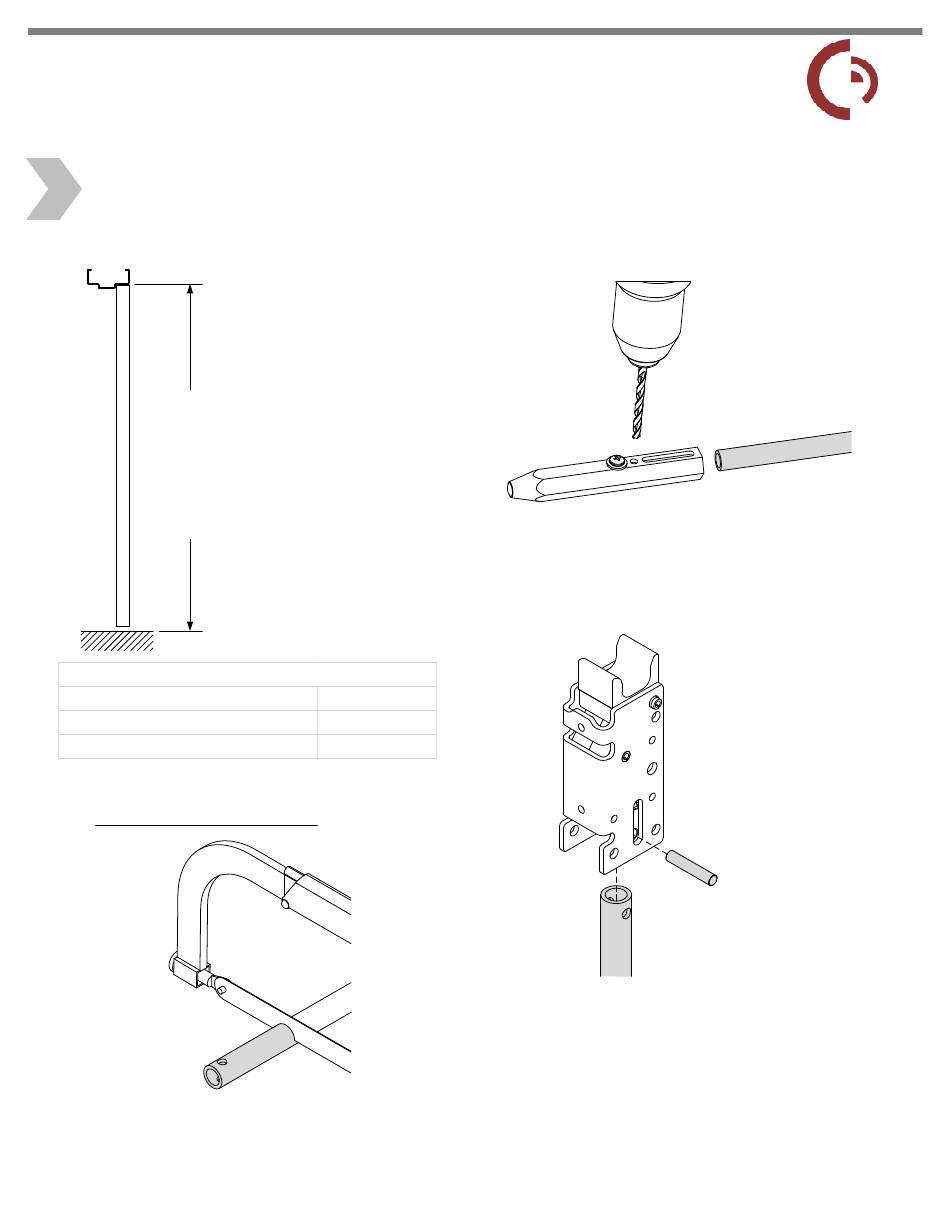

CUT TOP ROD
Cutting is not required for standard 7', 8' or 10' doors.
1. Calculate top rod cut.
Measure door height,
subtract result from the
standard height shown,
This number is the amount
To cut off the top rod.
(Standard Door) – (Actual Door) = (Cut)
Example:
(7' Standard Door) – (6'8" Actual Door) = (4" Cut )
*Standard Door Heights
Shorter Rod (37-3/8")
Longer Rod (49-3/8")
Shorter Rod with 3' Extension 10' (120")
2. Cut rod.
**Cut only the cross drilled end.**
3. Drill new 3/16" hole.
4. Install rod in top latch.
7' (84")
8' (96")
5
*Use the bottom latch bolt as a drill guide for new hole. If no
bottom latch is present drill hole centered 1/4" from end of rod.
20684_A (639401 Rev1)
