PD10-m-RIM PTS
The PD10-M-RIM is a storefront grade 1 exit device equipped with motor
drive latch retraction. Retrofits Doromatic 1790 & First Choice 3790.
A.
C.
D.

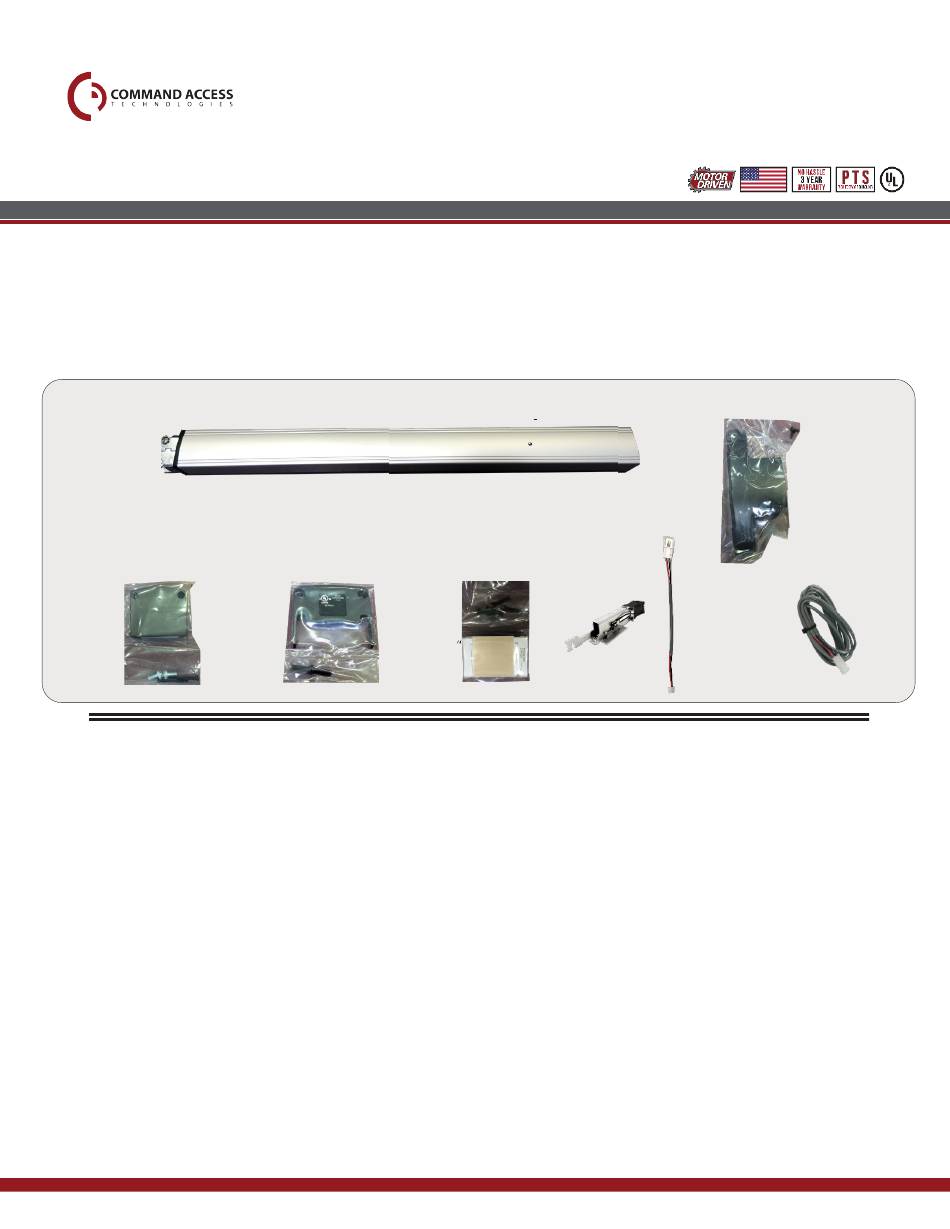

K IT I N CL U DE S | T O O LS R EQ U I R ED
A.
Head Cover pack
B.
RIM Exit Device
C.
Hinge Stile End Cap pack
D.
Lock Stile End Cap pack
E.
Rim Strike pack
F.
MOTOR KIT - Installed in exit device
G.
1- 50944 Molex Pigtail
H.
1- 50030 8' Lead w/ VD Connector
U S C U S T O M E R S U P P O R T 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | W W W . C O M M A N D A C C E S S . C O M | C A C U S T O M E R S U P P O R T 1 - 8 5 5 - 8 2 3 - 3 0 0 2
INSERT Instructions
E.
B.
F.
G.
•
Cordless Drill
•
Needle nose Pliers
•
Measuring Tape
•
1/2 Drill bit
#20200_C
