PD27/28/29/30 INSTALLATION INSTRUCTIONS
SVR DEVICE

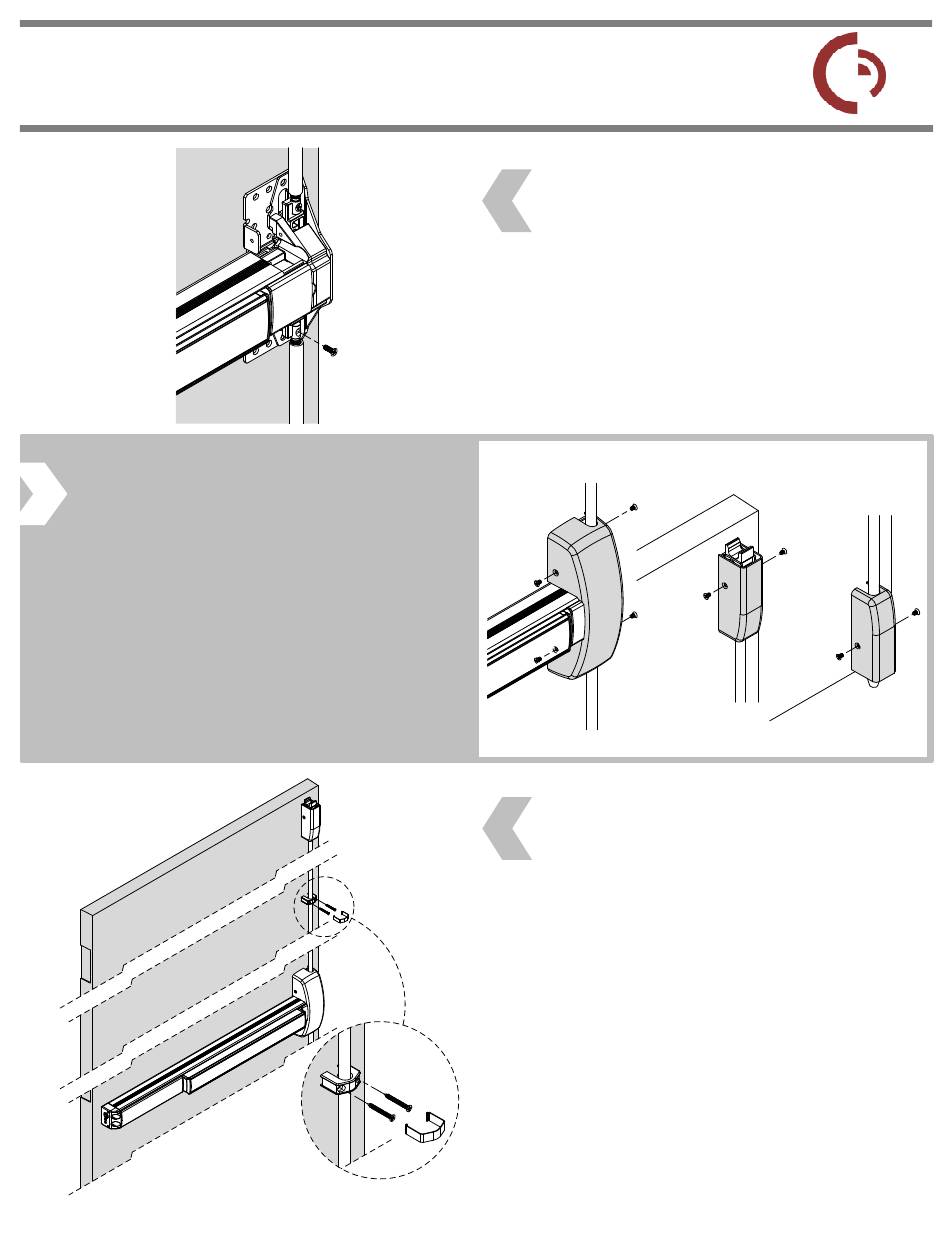

11. INSTALL HEAD COVER
AND LATCH COVERS
 Install the headcover. Secure with four #8-
32 x 1/4" flathead screws.
 Install latch covers, secure with two
32 x 1/4" flathead screws each.
10. ADJUST BOTTOM ROD
*Omit this step for LBR devices.
 Ensure top latch is in the unlatched
position.
 While the top latch is in the unlatched
position adjust the bottom rod until it
clears the strike by approximately 1/8".
Install #8-32 flat head screw.
#8-
12. INSTALL ROD GUIDES
 Measure distance between latches and
chassis head cover. Mark the centers.
 Using the rod guide as a template, mark
the hole locations making sure the rod is
centered in the guide and the guide is
level.
 Predrill hole locations with a 1/8" drill bit.
 Install rod guides using the #8 flat head
screws from screw pack 639045.
 Snap the rod guide cover over the rod
guide.
4
