PD27/28/29/30 INSTALLATION INSTRUCTIONS
CVR DEVICE
2. ASSEMBLE RODS &
LATCHES
 Thread CVR linkage into each rod to
approximate middle of threads
Steel Door – Attach mounting brackets as shown
Wood Door– Attach single mounting bracket on
each latch (toward hinge side)
Alum Door – Continue to next step
THRESHOLD NOTE:
When using ½" threshold, move bottom rod
attachment pin to upper hole in bottom rod.
PIN SLOT
TO TOP OF L BRACKET
OR TOP OF LATCH BODY
TOP ROD
BOTTOM ROD
SLOT
CVR
LINKAGE
BOTTOM
ROD HOLES
3. ADJUST RODS
When measuring, be sure length is in the
collapsed pin position as shown.
TOP ROD LENGTH: Measure from top
of door to device centerline. Subtract 2 1/
4".
Typical 7' Door: 41 5/8"
(43 7/8" - 2 1/4" = 41 5/8")
BOTTOM ROD LENGTH: 37" if device
is installed 40" above the finished floor.
PIN
1
888-622-2377 | commandaccess.com

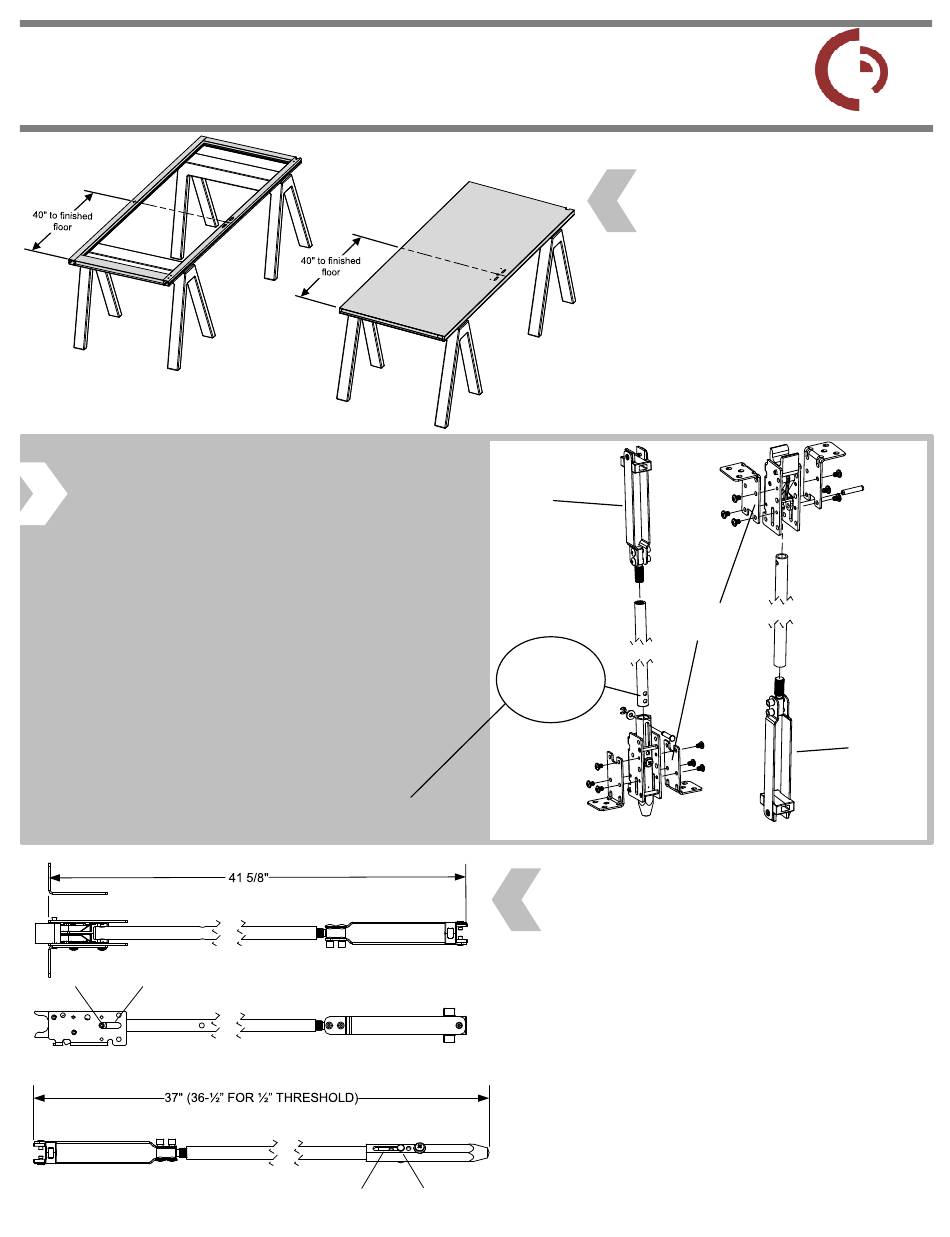

1. PREPARE DOOR
