PD27/28/29/30 INSTALLATION INSTRUCTIONS
SVR DEVICE

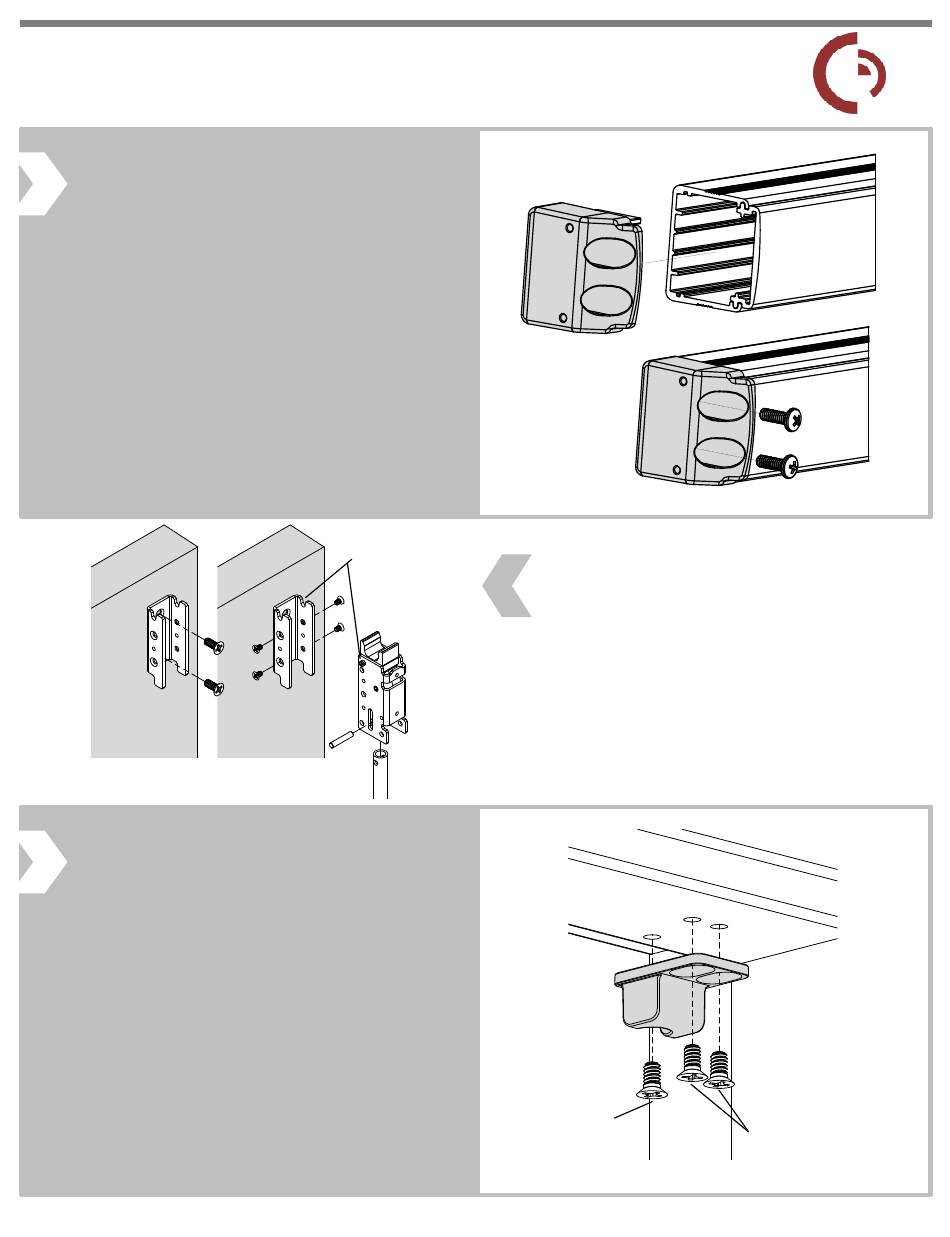

4. INSTALL END CAP
 Slide end cap into rail. Ensure rail is level.
Mark the slots.
 Remove end cap and prepare holes using
the chart from Step 3.
 Reinstall end cap and fasten with screws.
6. INSTALL TOP STRIKE
 Install strike using two #10-24 flat head
screws.
 Adjust strike to secure door.
 Install third flat head locking screw by
drilling and tapping for #10-24 after final
adjustment is achieved.
PIN IN
SLOT
2
5. INSTALL TOP LATCH
 Install mounting bracket to door with
two 1/4-20 x 5/8" flat head screws.
 Install rod using pin as shown.
 Hang latch from pin in mounting bracket,
secure latch using the four #8-32 x 1/4"
flat head screws.
INSTALL
AFTER
ADJUSTMENT
INSTALL
FIRST
