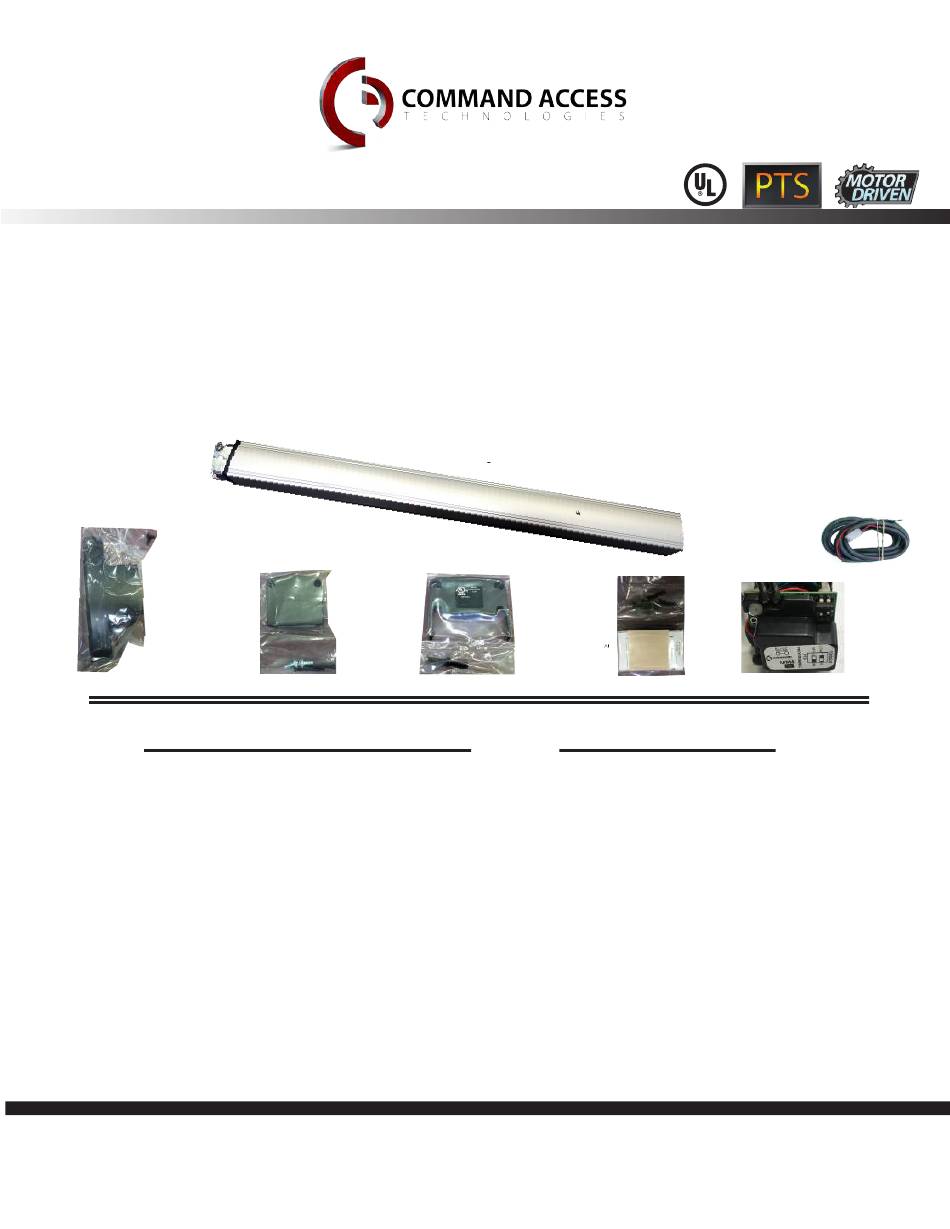

I N S T A L L A T I O N I N S T R U C T I O N S
The PD10-M-RIM is a storefront grade 1 exit device equipped with motor drive latch retraction.
B.
C.
A.
PD10 - M- R I M In c l u d es
A.
Head Cover pack
B.
RIM Exit Device
C.
Hinge Stile End Cap pack
D.
Lock Stile End Cap pack
E.
Rim Strike pack
F.
MM4 - Installed in exit device
G.
6' Power Lead
U.S. Customer Support
1-888-622-2377
PD10-M-RIM
Retrofits Doromatic 1790 & First Choice 3790.
D.
Visit our website for more details
www.CommandAccess.com
F.
E.
To ol s Requ ired
• Cordless Drill
• Needle nose Pliers
• Measuring Tape
• 1/2 Drill bit
Canada Customer Support
1-855-823-3002
G.
1
Doc # 20200_B
Advertisement
Related Manuals for Command access PD10-M-RIM
Summary of Contents for Command access PD10-M-RIM
- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S The PD10-M-RIM is a storefront grade 1 exit device equipped with motor drive latch retraction. Retrofits Doromatic 1790 & First Choice 3790.
-
Page 2: Specifications
T E C H N I C A L I N F O R M A T I O N Specifications MM4 Label • Input Voltage: 24VDC +/- 10% • Average Latch Retraction Current: 1 Amp • Average Holding Current: 125 mA PTS Video •... - Page 3 NO VOLTAGE LOCKING HARDWARE Module Legend Standard Placement Optional Placement RECOMMEND POWER SUPPLIES: All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory. • PS210 • PS440B • •...
- Page 4 RIM Panic Installation Template All prep is shown on interior side of the door, except where noted. Right hand door shown. (LHR)
- Page 5 STEP 1 - Mount Exit Device Install the stile mounting bracket with 2 ea. 1/4-20 x 1/2 pan head screws. Leave space to capture the base of the device. (See next slide) Slide the end of baserail underneath the mounting bracket. Optional STEP - Installing Cylinder A.
- Page 6 -For Night Latch, leave set screw in place. -Hold Back function is desired, remove the set screw to allow additional rotation of cylinder tailpiece. STEP 1B - Continued Attach head of device to stile with 2 ea. 1/4-20 x 3/4 “ screws. Tighten screws on the head and base of the device.
- Page 7 Slide push pad off of baserail. Drill the hole for our 2 pin power lead in- between the 2 mounting screws. Debris Feed the 2 pin power lead into the hole and connect to our MM4 module. Also, make sure to clean out any debris left. Note: Depending on where your power transfer is;...
- Page 8 Replace push pad, making sure the activating brackets and pins slide through the 3 channel. Reinstall the lock stile end cap. STEP 3 - Install Head & End Cap A. Install head cover with 2 ea. 10-32 x 3/8 screws.
- Page 9 Install hinge stile push pad cover with 2 ea. 8-32 x 1 1/2” screws. Now you set you latch retraction adjustment with our “PTS” technology. See page #2 STEP 4 - Install Door Frame Stop Install the roller strike with 2ea. #10-32 x 1 “...
- Page 10 STEP 5 - Install Wear Strip Cut wear strip to desired length. Clean surface of the frame before apply wear strip in indicated area. Peel backer paper from wear strip. Apply wear strip flush to front of frame jamb in indicated area.
- Page 11 PD10 Parts Breakdown...
- Page 12 Visit our website for more details U.S. Customer Support Canada Customer Support 1-888-622-2377 1-855-823-3002 www.CommandAccess.com Doc # 20200...
