Command access PD29 Installation Instructions page 3

PD27/28/29/30 INSTALLATION INSTRUCTIONS
SVR DEVICE

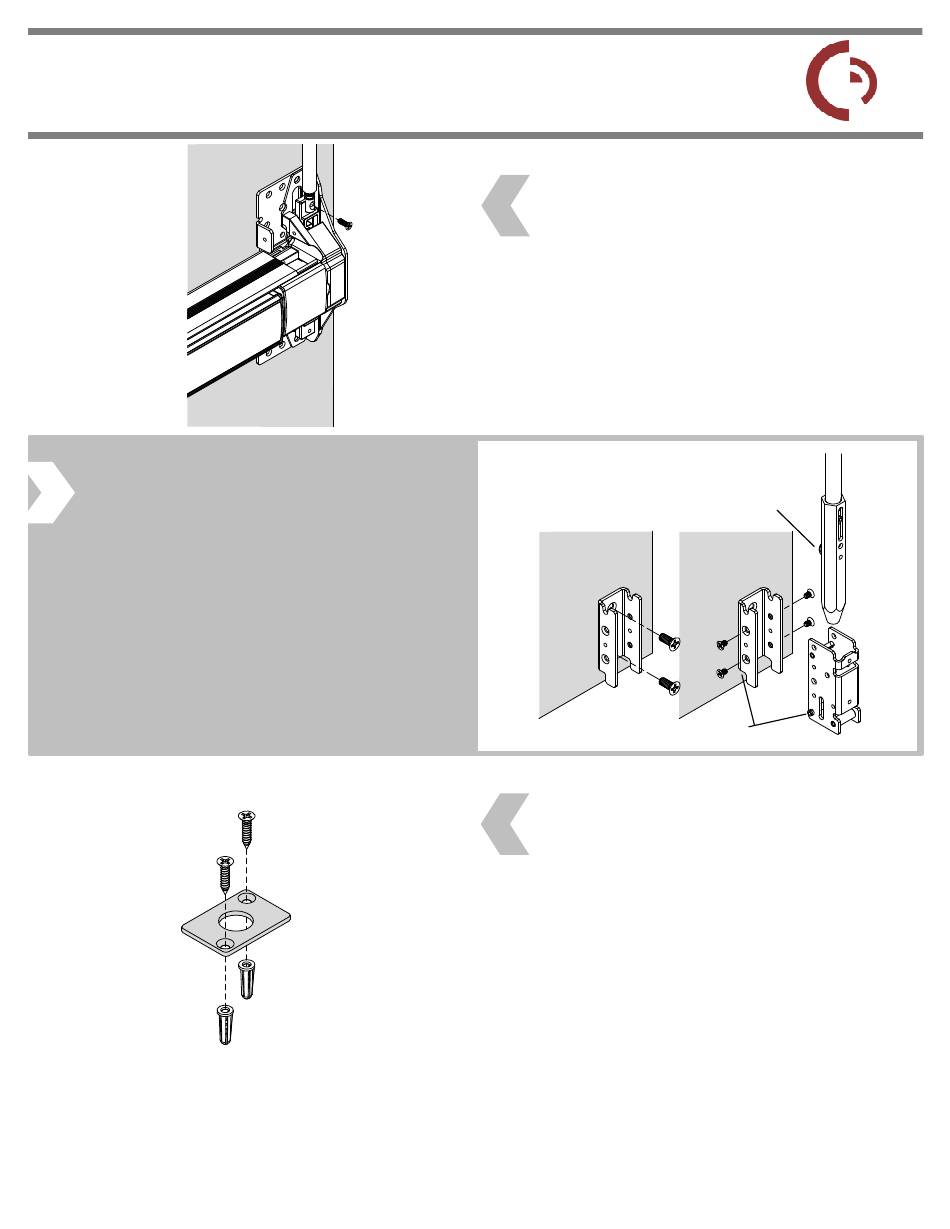

8. INSTALL BOTTOM LATCH
*Omit this step for LBR devices.
 Install mounting bracket to door with two
1/4-20 x 5/8" flat head screws.
 Install latch into the mounting bracket,
ensuring the long pin is in the designated
area, using the four #8-32 x 1/4" flat head
screws.
 Install rod and bottom bolt into latch body
ensuring screw and washer are facing
door.
7. ADJUST TOP ROD
 Ensure top latch is in the unlatched
position by lifting up then releasing the
rod. Rod should remain up.
 Depress the push bar and adjust the top
rod connector by threading it in or out of
the rod until it lines up with the screw
hole in the device head. Do not
manually lift the carriage. Secure rod
with #8-32 flat head screw.
9. INSTALL BOTTOM STRIKE
*Omit this step for LBR devices.
 Close door and mark center of bottom
bolt on floor.
 Center strike and mark location of screw
holes.
 Drill strike hole and anchor holes
according to template.
 Install plastic anchors into floor.
 Install strike using two flat head screws.
3
SCREW AND
WASHER
TOWARD DOOR
PIN IN
SLOT
20684_A (639401 Rev1)
