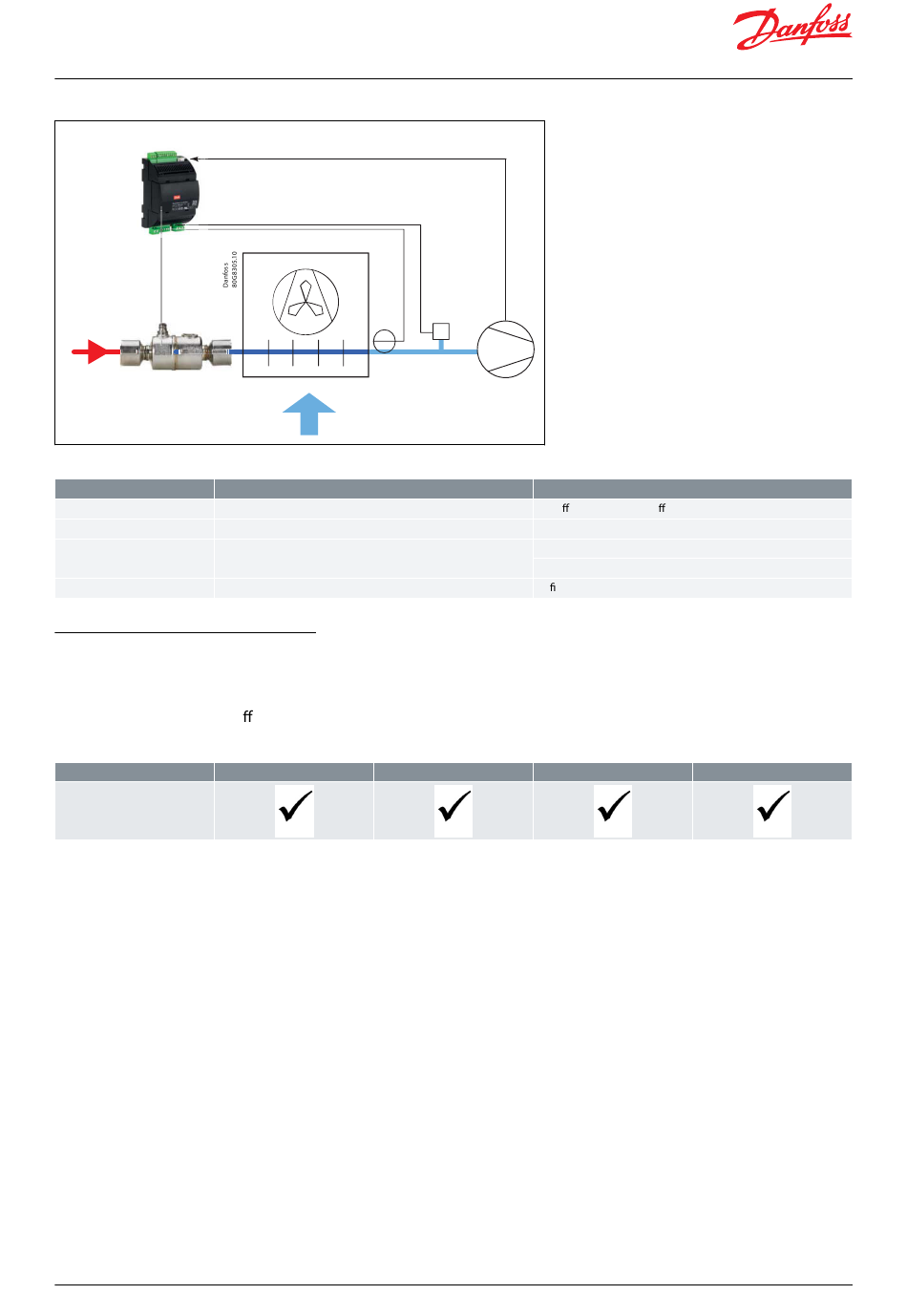

Figure 63: Compressor feedforward function
Compressor speed signal via MODbus
Master
control
EEV
Table 38: Compressor feed Forward
Parameter
Function
N135
Comp. speed feed forward function
R100
Compressor Capacity
N136
FF low capacity turning point
N137
FF maximum factor for Tn turning
6.3 Other features and modes
6.3.1 Startup and Defrost Modes
A Startup mode allows the valve to open faster on start-up to avoid any unwanted low-pressure situation. EKE 1x
controllers implements 3 di erent modes for startup, and one sequence for startup.
Table 39: Startup and Defrost Modes
EKE
Applicable
P-control
The controller is programmed for auto proportional control that will quickly Change the opening degree based on
the superheat of the system. The proportional control is active during the Minimum start time set by the user, and
until the Super heat crosses the reference.
WARNING:
If SH didn't cross the Superheat reference after the minimum stop time(N104), the Proportional control will stop
after the start time(N105), set by the user.
