Superheat controller and stepper valve driver, Type EKE 1A, 1B, 1C, 1D

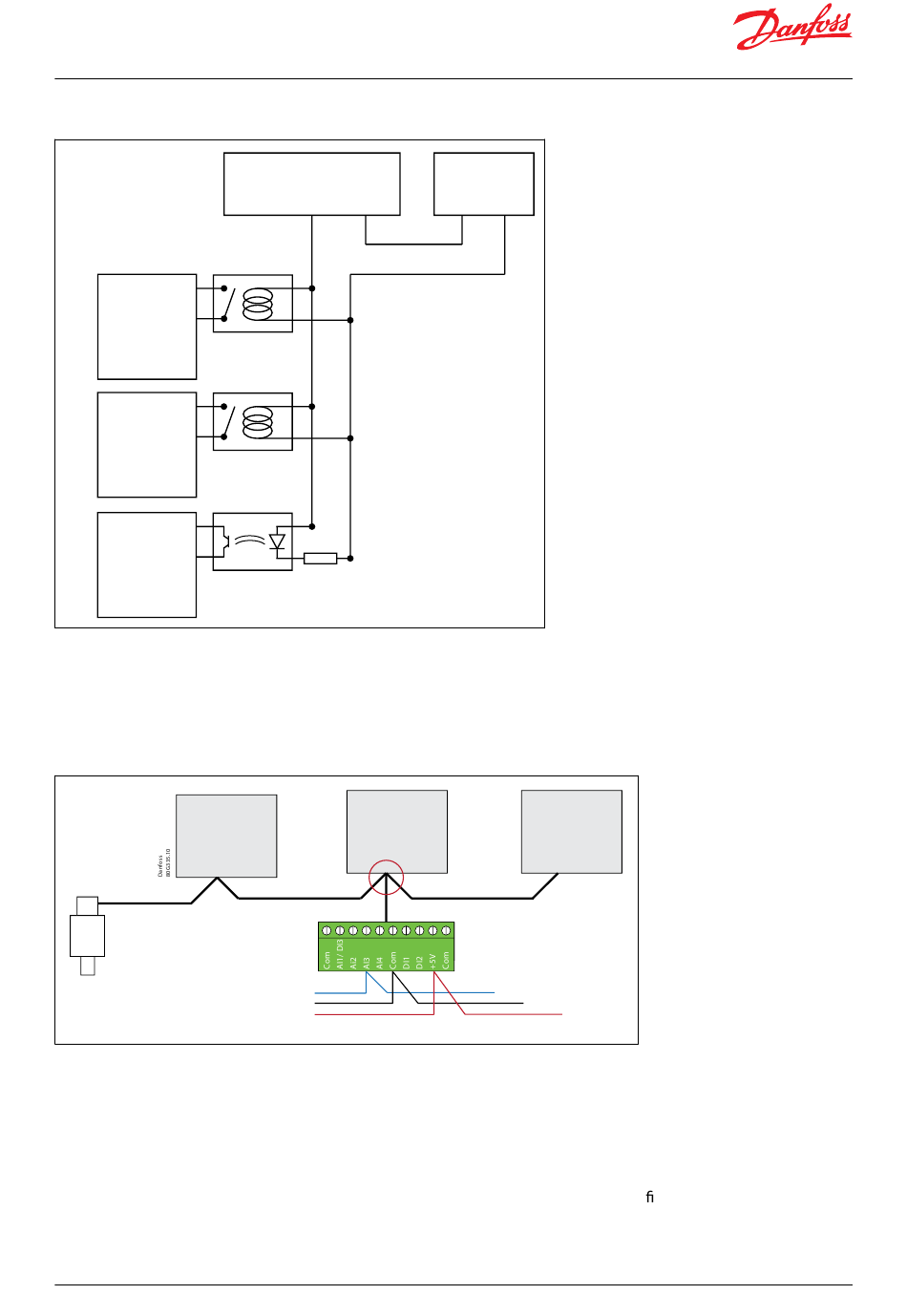

Figure 14: Possible circuitry to share a digital signal between Multiple
EKE
Danfoss
80G340.10
D1
COM
EKE
D1
COM
EKE
D1
COM
EKE
3.7.3 Sharing pressure sensor signal
For EKE 1A, EKE 1B, EKE 1D up to 5 controllers can share one Ratiometric pressure transmitter readings. To get a
correct acquisition on all the units all the three wires (GND, 5V and transmitter signal, output) must be routed to
every unit
Figure 15: Signal sharing between EKE 1A, 1B, 1C, 1D
EKE 1B
AKS
32R
(GND, 5V and transmitter signal, output) must be routed to every unit
 NOTE:
For a correct acquisition on all the units all the three wires (GND, 5V and transmitter signal, output) must be routed
to every unit
In EKE 1C, a physical pressure transmitter can only be shared via wired CANBus or Modbus
Sensor Signal sharing via CANBus in EKE 1C, 1D in EKE 1C, 1D Signal can be broadcasted once per second to all
the following parameters enable/disable broadcasting of local signals (refer to the con guration parameter section):
[G012 - Signal sharing Pe]
