Superheat controller and stepper valve driver, Type EKE 1A, 1B, 1C, 1D

5 User Interface

In this section the user interfaces are described. EKE 1x controllers can be used with 2 main user interfaces:

• MMI display

• KoolProg Software

5.1 Con guration using MMI Display

MMIGRS2 is a graphical display. The connection with each EKE controller is made through the CAN RJ or CANBus

network. All the information about the user interface is loaded inside the EKE controller. that's why there is no need

of programming the MMIGRS2 interface.

MMIGRS2 is powered externally or from the controller (while using RJ12) which it is connected to and automatically

shows its user interface. EKE can be con gured with basic settings quickly using the wizard setup and advanced

settings can be made afterwards.

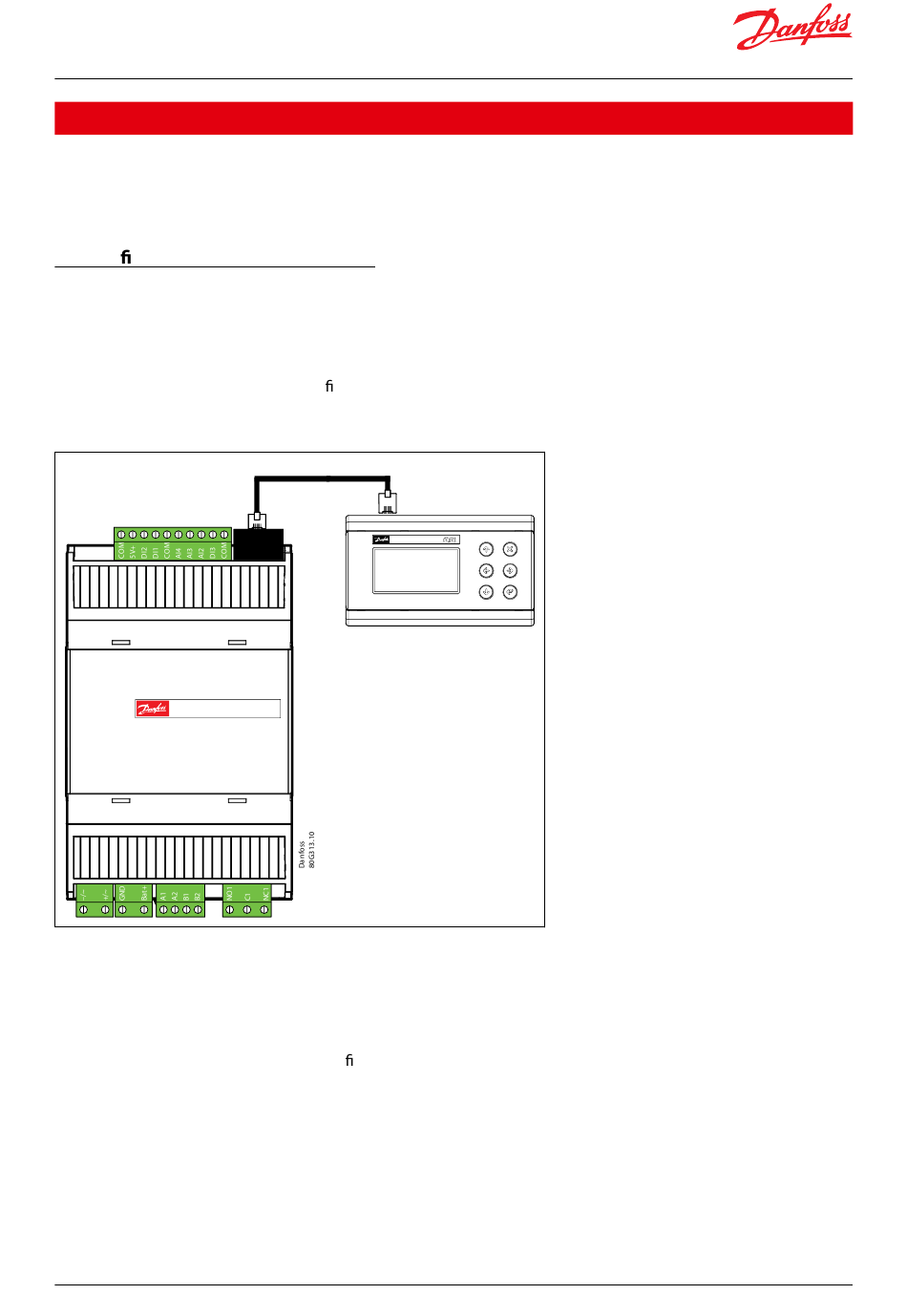

Figure 29: Connecting MMIGRS interface

Superheat controller

EKE 1A - 080G5300

When MMI is not connected to EKE via CANRJ12 the autodetection feature of the EKE CAN address will not work.

Therefore, check the following MMIGRS2 setting:

enter BIOS menu pressing and holding X + Enter keys for 5 s.

select "MCXselection"->" Manual Mode" and set the CAN address of the EKE you wish to connect to. CAN H-CAN

R shorting should be done only on the rst and last node of the network.

For the series EKE 1C and EKE 1D, to connect via MMI via the wired CAN, the R and H terminal of the MMI needs to

be shorted.

ACCCBI080G0075

CAN RJ

MMIGRS2

BC398828796060en-000103 | 26
