Superheat controller and stepper valve driver, Type EKE 1A, 1B, 1C, 1D

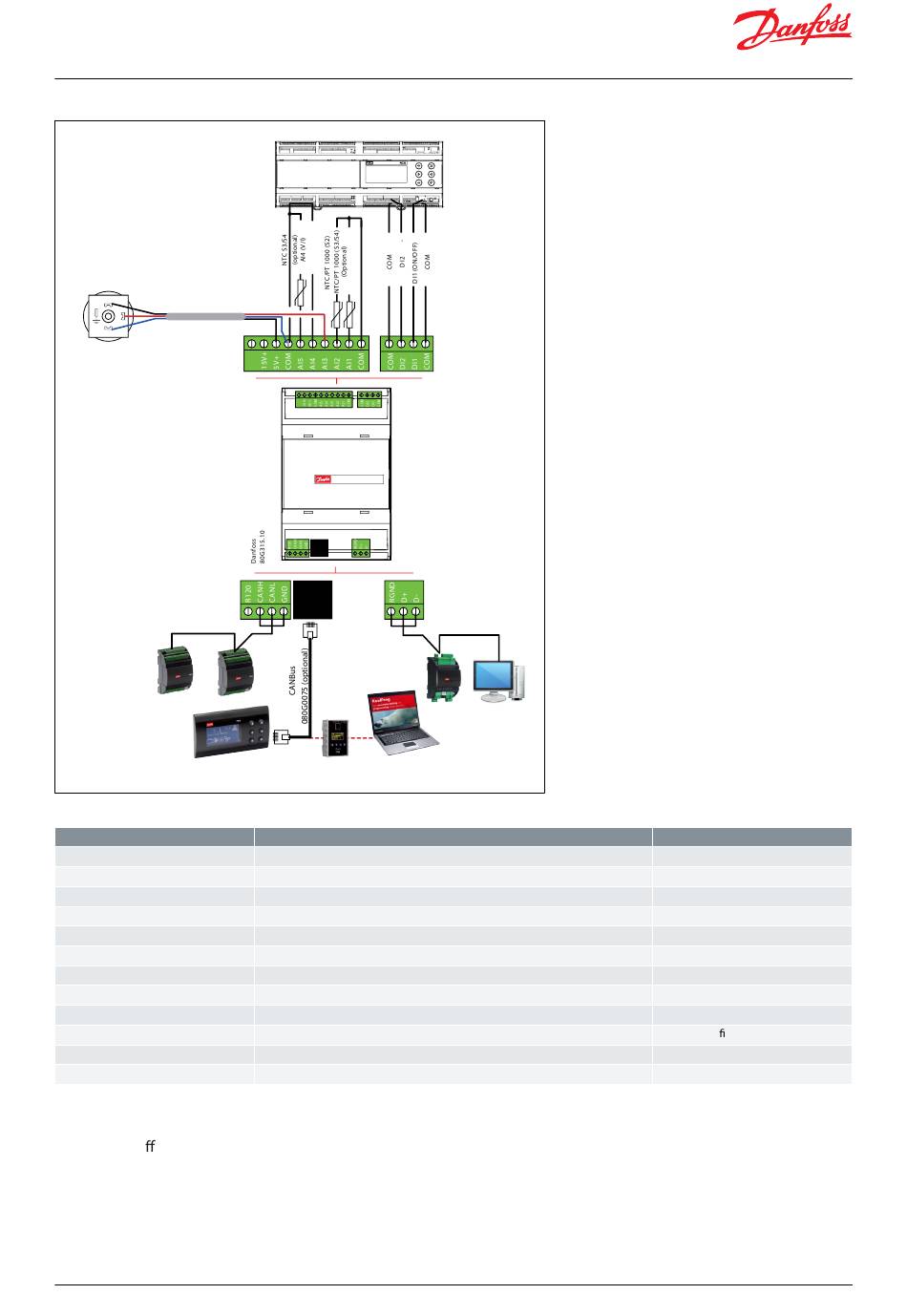

Figure 5: EKE 1C - Front board connection overview
Pressure Transmitter
Ratiometric 0.5 – 4.5 V
AKS cable
connection
1
060G1034
3
2
e.g. AKS 32R
CANBus Local network
MMIGRS display
080G0294 (optional)
Table 8: EKE 1C pinout
COM
AI1
AI2
AI3
AI4
AI5
COM
5V+
15V+
DI1
DI2
24V+
AO1
 NOTE:
• EKE 2U Backup power module is recommended to ensure closure of the electronic valves. in case of power failures
• If Dl1(On/O ) switch is not used it must be short circuited
• EKE 1A/1B/1D only support Ratiometric 0.5 to 4.5V pressure transmitter
