t
= 0 - +55°C
amb
230 V a.c.
50/60 Hz
2.0 VA
10 V < U < 256 V
CE (250 V a.c.)
DO1. Refrigeration *
10 (6) A
DO2. Defrost *
10 (6) A
DO3. Fan *
6 (3) A
4 (1) A
DO4. Alarm or light *
Min. 100 mA**
* DO1 and DO2 are 16 A relays. DO3 and DO4 are 8 A relays. Max. load must be kept.
** Gold plating ensures make function with small contact loads
*** UL-approval based on 30000 couplings
Data communication LON RS 485 / MOD-bus:
RI8PN253 03-2012
INSTRUCTIONS

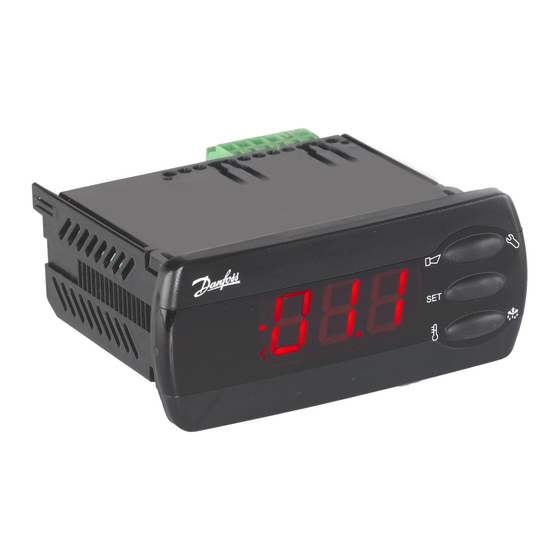

EKC 202C-MS
NTC, Multi sensor
Sensor type = NTC
( Menu = o06)
UL *** (240 V a.c.)
10 A Resistive
5FLA, 30LRA
10 A Resistive
5FLA, 30LRA
6 A Resistive
3FLA, 18LRA
131 VA Pilot duty
4 A Resistive
131 VA Pilot duty
LON
MOD-bus
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Danfoss EKC 202C-MS
Summary of Contents for Danfoss EKC 202C-MS

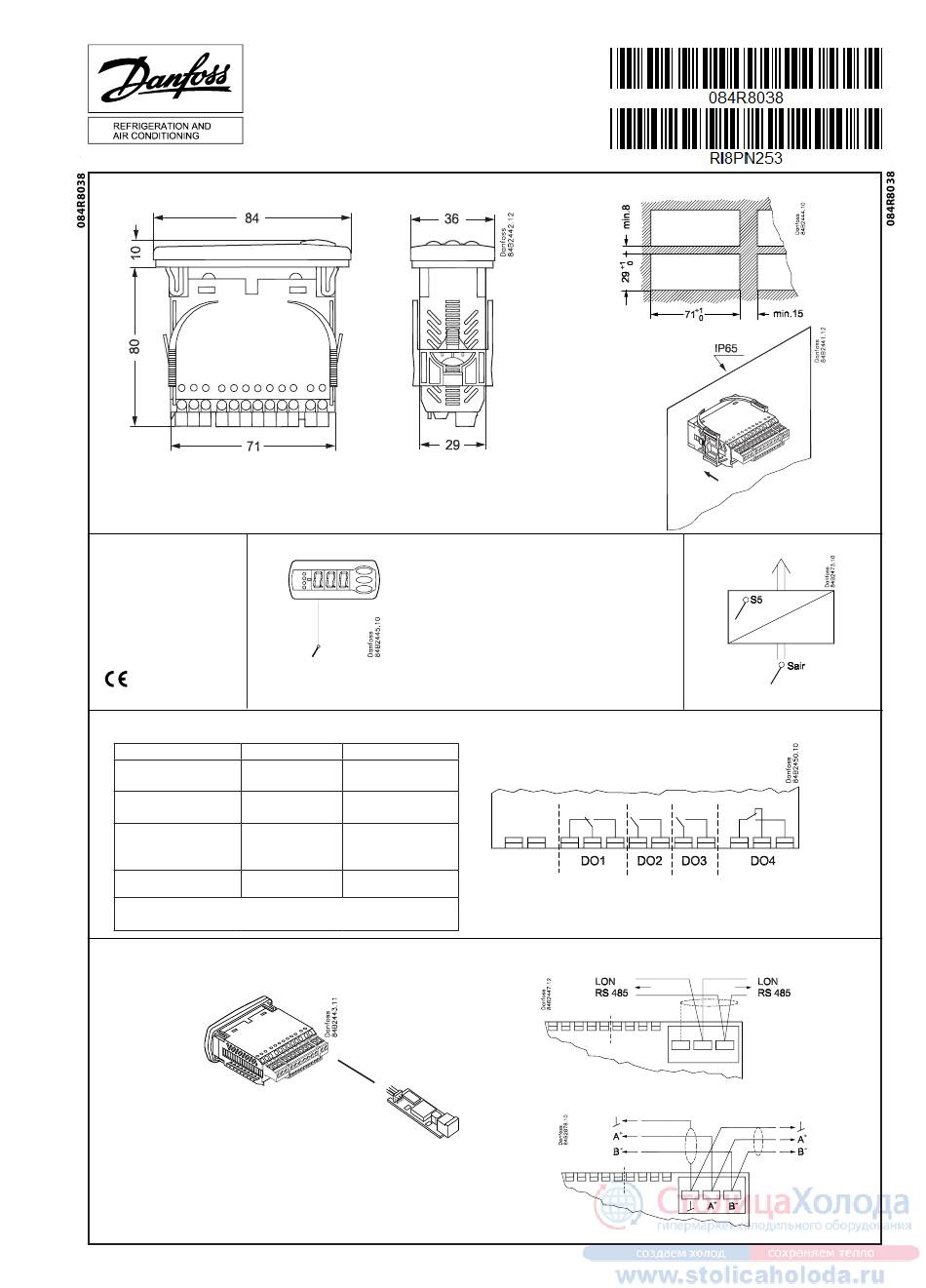

- Page 1 INSTRUCTIONS EKC 202C-MS NTC, Multi sensor = 0 - +55°C Sensor type = NTC ( Menu = o06) 230 V a.c. 50/60 Hz 2.0 VA 10 V < U < 256 V CE (250 V a.c.) UL *** (240 V a.c.) 10 A Resistive DO1.
- Page 2 = max. 15 m Sair, S5= NTC 5000 Ω @ 25°C, M2020 (Danfoss type=EKS 211) / NTC 10000 Ω @ 25°C, Beta 3435 (Danfoss type=EKS 221) / NTC 3000 Ω @ 25°C / NTC 2500 Ω @ 0°C / NTC 10000 Ω...
- Page 3 Ur - Timeindstilling 0 timer 23 timer 0 timer Ur - Minutindstilling 0 min 59 min 0 min Ur - Indstilling af dato Ur - Indstilling af måned Ur - Indstilling af år EKC 202C-MS Instructions RI8PN253 © Danfoss 03/2012...
- Page 4 Adgangskode 1 (samtlige indstillinger) Anvendt følertype n01: NTC 5000 Ω @ 25°C, M20202 (Danfoss type=EKS 211) n02: NTC 10000 Ω @ 25°C, Beta 3435 (Danfoss type= EKS 221) n03: NTC 3000 Ω @ 25°C n04: NTC 2500 Ω @ 0°C n05: NTC 10000 Ω...
- Page 5 Clock - Setting of hours 0 hours 23 hours 0 hours Clock - Setting of minute 0 min 59 min 0 min Clock - Setting of date Clock - Setting of month Clock - Setting of year EKC 202C-MS Instructions RI8PN253 © Danfoss 03/2012...
- Page 6 Access code 1 (all settings) Used sensor type: n01: NTC 5000 Ω @ 25°C, M20202 (Danfoss type=EKS 211) n02: NTC 10000 Ω @ 25°C, Beta 3435 (Danfoss type= EKS 221) n03: NTC 3000 Ω @ 25°C n04: NTC 2500 Ω @ 0°C n05: NTC 10000 Ω...
- Page 7 Uhr - Einstellung Stunden 0 hours 23 hours 0 hours Uhr - Einstellung Minuten 0 min 59 min 0 min Uhr - Einstellung des Datums Uhr - Einstellung des Monats Uhr - Einstellung des Jahrs EKC 202C-MS Instructions RI8PN253 © Danfoss 03/2012...
- Page 8 Zugangskode 1 (sämtliche Einstellungen) Angewandter Fühlertyp: n01: NTC 5000 Ω @ 25°C, M20202 (Danfoss Typ=EKS 211) n02: NTC 10000 Ω @ 25°C, Beta 3435 (Danfoss Typ= EKS 221) n03: NTC 3000 Ω @ 25°C n04: NTC 2500 Ω @ 0°C n05: NTC 10000 Ω...
- Page 9 0 hours 23 hours 0 hours Horloge - Réglage minutes 0 min 59 min 0 min Horloge - Horloge – Réglage date Horloge - Horloge – Réglage mois Horloge - Horloge – Réglage année EKC 202C-MS Instructions RI8PN253 © Danfoss 03/2012...
- Page 10 Code d’accès 1 (tous les réglages) Type de sonde utilisé: n01: NTC 5000 Ω @ 25°C, M20202 (Danfoss type=EKS 211) n02: NTC 10000 Ω @ 25°C, Beta 3435 (Danfoss type= EKS 221) n03: NTC 3000 Ω @ 25°C n04: NTC 2500 Ω @ 0°C n05: NTC 10000 Ω...
- Page 11 Ajuste del reloj - hora 0 horas 23 horas 0 horas Ajuste del reloj - minutos 0 min 59 min 0 min Ajuste del reloj - día Ajuste del reloj - mes Ajuste del reloj - año EKC 202C-MS Instructions RI8PN253 © Danfoss 03/2012...
- Page 12 Código 1 de acceso a todos los parámetros (0= código desactivado) Tipo de las sondas utilizadas: n01: NTC 5000 Ω @ 25°C, M20202 (Danfoss tipo=EKS 211) n02: NTC 10000 Ω @ 25°C, Beta 3435 (Danfoss tipo= EKS 221) n03: NTC 3000 Ω @ 25°C n04: NTC 2500 Ω @ 0°C n05: NTC 10000 Ω...
