Installation guide
Electronic superheat controller
Type EKE 1C
Introduction
Superheat controller EKE 1C is for use where superheat must be accurately controlled,
typically in commercial air conditioning, heat pumps, commercial refrigeration, food retailing
and industrial applications.
Compatible valves: Danfoss ETS 6, ETS 8M (Bipolar) / ETS / ETS Colibri® / ETS L, KVS / KVS
Colibri® and CCM / CCMT / CCMT L / CTR valves.
Reference: For details please see EKE data sheet.

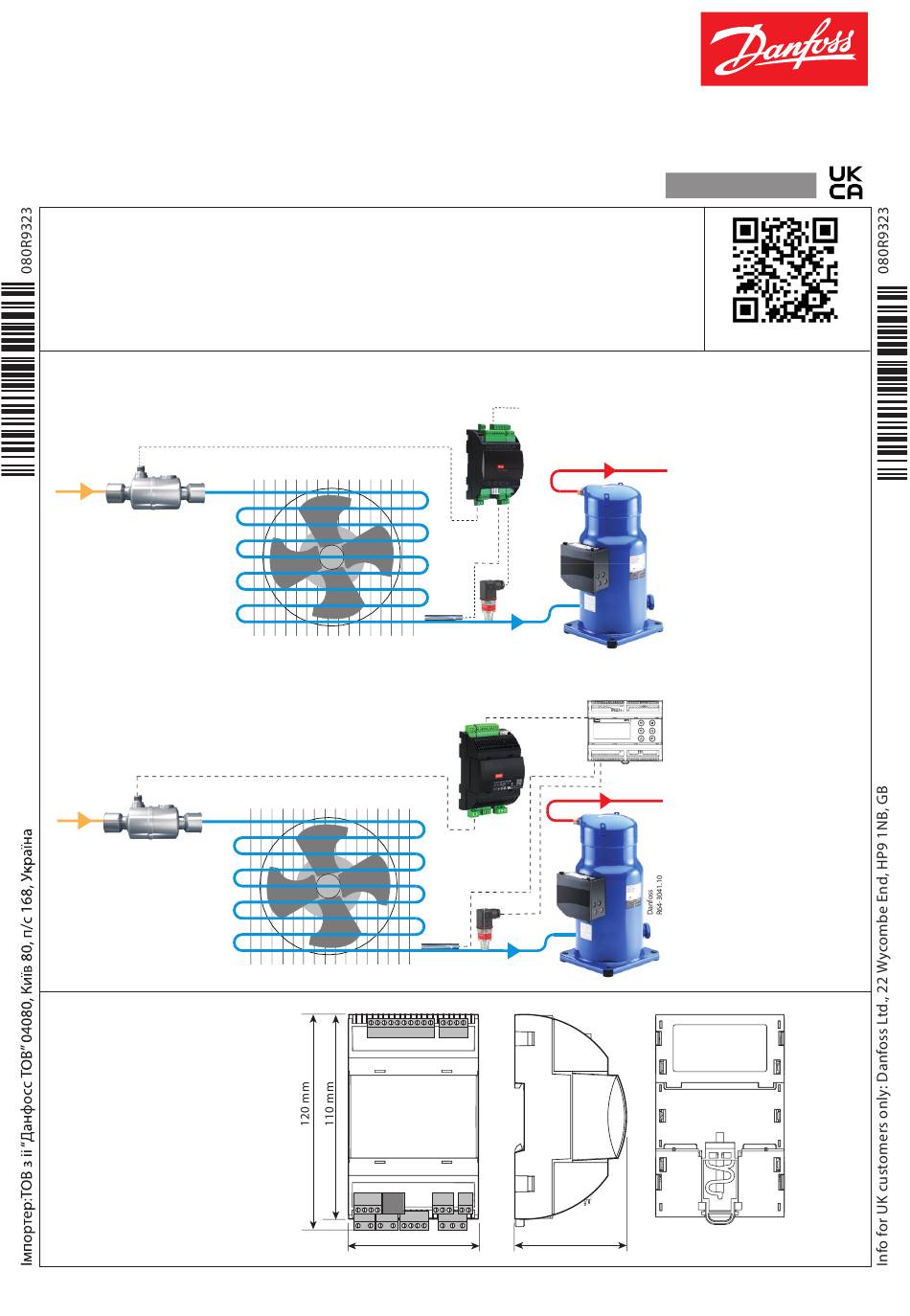

Applications
1. Superheat controller: standalone / network
ETS Colib ri®
2. Valve driver
ETS Colib ri®
Dimensions EKE 1C
Weight: 190 gram
© Danfoss | Climate Solutions | 2023.10
Communication
S2
Pe
Reference signal
Reference signal
S2
Pe
70 mm
60 mm
ENGINEERING
T O M O R R O W
English
More info
Danfoss
Danfoss
R64-3033.10
R64-3033.10
Danfoss
80G8215.01
AN269954243889en-000905 | 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EKE 1C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Danfoss EKE 1C

  • Page 1 Compatible valves: Danfoss ETS 6, ETS 8M (Bipolar) / ETS / ETS Colibri® / ETS L, KVS / KVS Colibri® and CCM / CCMT / CCMT L / CTR valves.
  • Page 2: Technical Specifications

    Stepper valves: A1, A2, A3, A4 Bipolar stepper motor output: - Danfoss ETS 6 / ETS 8M (Bipolar) / ETS C / ETS L / KVS / KVS C / CCMT 2 – CCMT 42 / CCMT L / CTR Valves...
  • Page 3 Battery backup - the voltage will close the stepper motor valves if the controller loses its supply voltage. • Do not connect an external power supply to the digital input DI terminals to avoid damaging the controller. AN269954243889en-000905 | 3 © Danfoss | Climate Solutions | 2023.10...
  • Page 4 Superheat controller EKE 1C - 080G5400 EKE 1C - 080G5400 CAN RJ CAN RJ STEPPER VALVE DIGITAL OUTPUT PWR 24V Vbat STEPPER VALVE DIGITAL OUTPUT CAN RJ RS485 Not used AN269954243889en-000905 | 4 © Danfoss | Climate Solutions | 2023.10...
  • Page 5 MMIGRS display KoolProg MMIMYK Pressure Transmitter 080G0294 (optional) PC tool Gateway EKE 1C analog input at terminal 1 - 5 For other transmitter types, check e.g. AKS 33 EKE data sheet. AN269954243889en-000905 | 5 © Danfoss | Climate Solutions | 2023.10...
  • Page 6 Power Normally open or ± 20% ± 20% T fuse backup normally closed (optional) (optional) (optional) ETS 6 valves Alarm ON/OFF solenoid ETS / KVS valve Colibri® and CCMT valves AN269954243889en-000905 | 6 © Danfoss | Climate Solutions | 2023.10...
  • Page 7 It is a good practice to select a pressure transmitter with an average load of 40 – 60% of full scale. • Pressure transmitter values can be shared with multiple EKE 1C via CANbus. Power supply •...
  • Page 8 Relay Outputs EKE 1C has 1 relay output: • Type SPDT relay. Digital Output can be used to connect either a solenoid valve or an alarm. • The relays cannot be used for the direct connection of capacitive loads such as LEDs and ON/OFF control of EC motors.
  • Page 9 • The stepper motor is connected to the “Stepper Valve” terminals (see terminal assignment) with a standard M12 connection cable. • To con gure stepper motor valves other than Danfoss stepper motor valves, the correct valve parameters must be set as described in the Valve con guration section (see manual for details).
  • Page 10: Led Indication

    • Steady green = valve fully open • Both green and red ashing = valve-related alarm USER INTERFACE EKE 1C can be setup using one of the following user interfaces: 1. Danfoss KoolProg software 2. Danfoss MMIGRS external display. 3. Communication bus: Modbus RS485 RTU KoolProg KoolProg is a software tool for quickly and easily con guring EKE controllers.
  • Page 11 Danfoss MMIGRS2 display Connecting external MMIGRS2 display MMIGRS2 display can be used to set up EKE 1C. The display can be used not only for setting up the necessary parameters, but also as an external display during operation to show important parameters, e.g. degree of opening of valve, superheat, etc.
  • Page 12: Status Menu

    Setup wizard via MMIGRS2 display When all connections to the controller have been made, after the power is switched on, the Danfoss logo will appear for 5 seconds, then the Home screen will be displayed. To access the Wizard: press and hold enter to access the Login screen, the commissioning password is 300, scroll down the Setup and service menu and select “Setup wizard”.
  • Page 13 The setting will depend on the system requirement. Parameter: R012 Main Switch Select prede ned Danfoss valve type ETS, ETS C, KVS, Select valve type KVS C, CCM, CCMT, CTR, or user de ned. Parameter: I067 Valve con guration...
  • Page 14 EKE 1C – Commonly used parameter identi cation PNU - equivalent to the Modbus register no. (Modbus address +1). Actual value are read/written as 16-bit integer values without decimals. This is the default value as read via Modbus. Parameter Default Description...
  • Page 15 Range 2 K – 9 K N116 SH ref. delta temp. factor ( %) 3035 Range 20 – 100 For a detailed parameter list and explanation, please check the EKE data sheet. AN269954243889en-000905 | 15 © Danfoss | Climate Solutions | 2023.10...
  • Page 16: Related Products

    M12 cable ACCCBI cables for MMI display and gateway. EKE is compatible with Danfoss stepper M12 Angle cable to connect motor valves i.e Danfoss ETS 6, ETS, KVS, Danfoss stepper motor valve and ETS Colibri®, KVS colibri®, CTR, CCMT EKE controller AN269954243889en-000905 | 16 ©...
