Superheat controller and stepper valve driver, Type EKE 1A, 1B, 1C, 1D

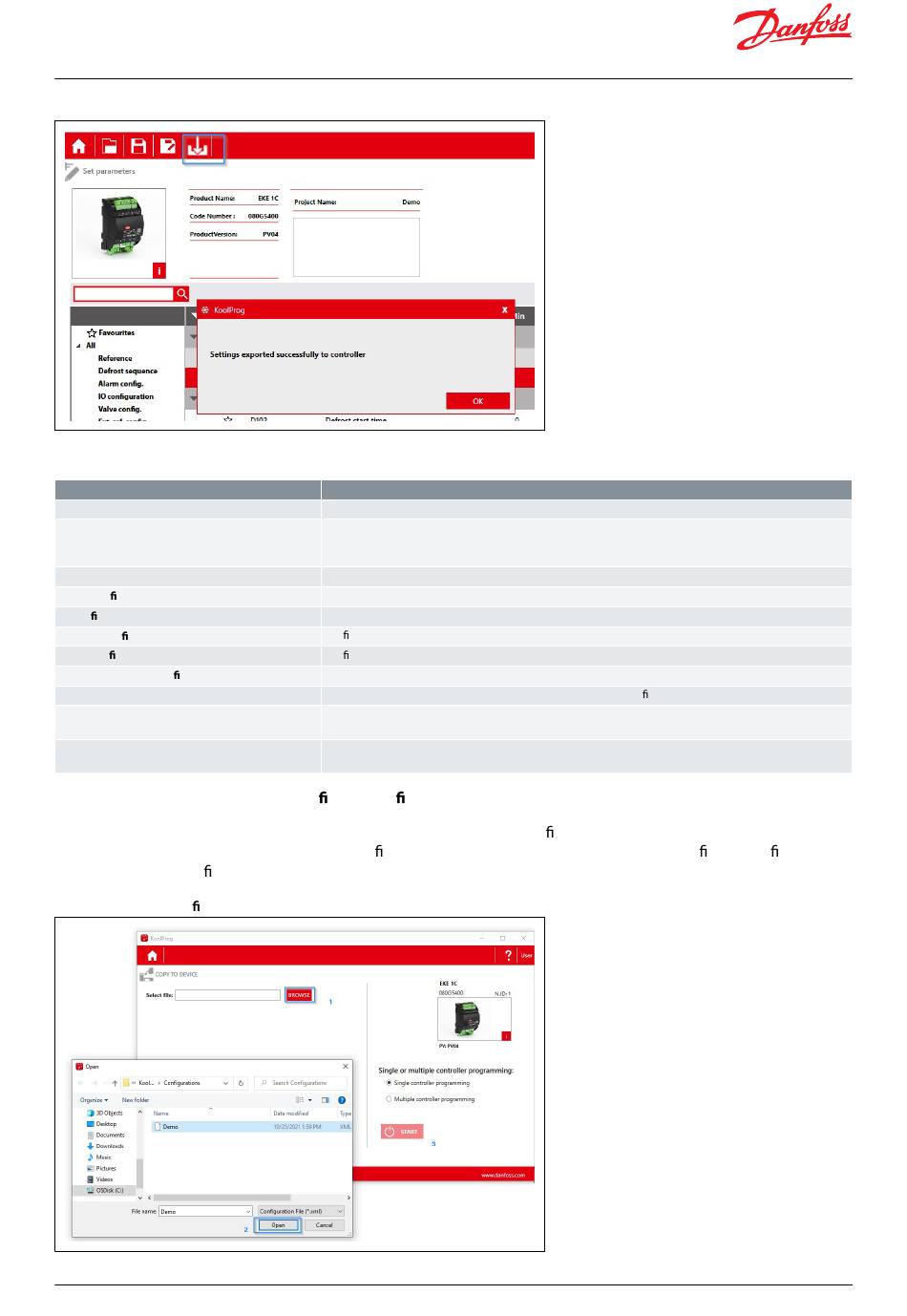

Figure 47: Uploading the settings to EKE
Table 17: KoolProg main Menu Summary
Parameter Group
Reference
Control
Defrost Sequence
Alarm con guration
IO con g
Sensor's con guration
Valve Con guration
External reference con guration
Display
Communication
Service
4.2.4 Copy to device- Uploading con guration le to KoolProg:
From the parameter selection menu, any change made can be saved as le using the saving options, save or save as,
also you can know the folder containing these les by clicking the folder icon. To upload a con guration le. Click
on browse, select the le you saved from the parameter selection menu, then click open, then Start.
Figure 48: Uploading les through copy-to-device menu
© Danfoss | Climate Solutions | 2024.08
Setup description
Main switch, Mode selection
General control parameter for example selecting control mode, protection function ext.., it is divided into 3
sections:
Control Basic, Control Advanced, Control heatpump
Parameters about the defrost mode
Alarm parameters
Confuguring For analog and digital inputs
Con guring pressure and temperature sensor
Con gure settings for the valve
For more settings for External reference and the AI4
Display Settings of the MMI screen, and passwords and logout con guration
-Communication settings (controller address, communication baud rate for CANbus and Modbus)
-Signal Sharing settings
Service Mode allows Entering
-Manual mode, Service Mode and Applying factory default.
