Chapter 2: Jumpers and Connectors
Connector Pin Definitions
External Connectors

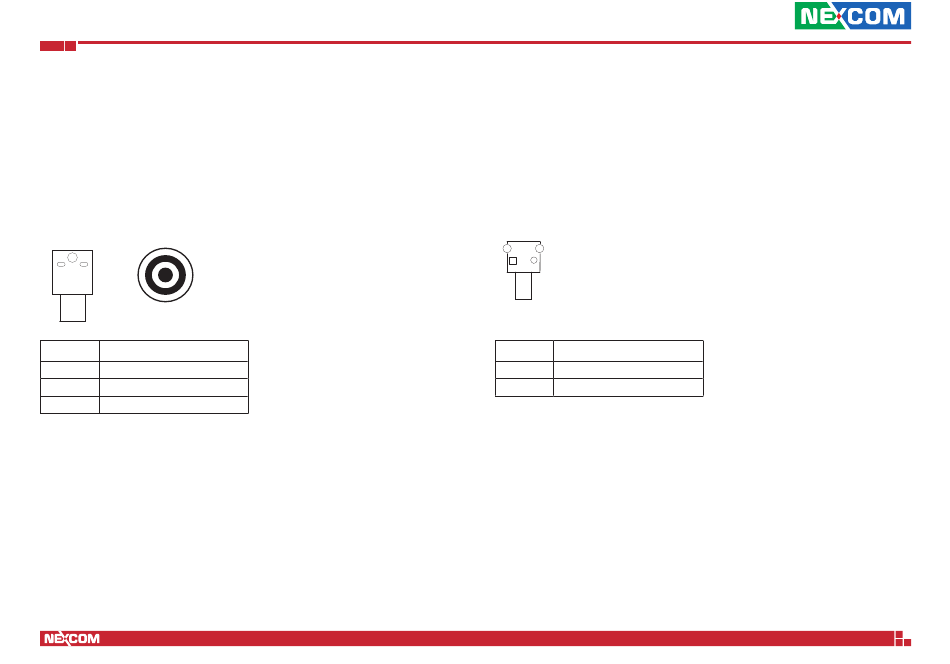

P12V Power Connector
Connector location: CN4
1
2
3
Pin
Definition
1
DC_IN
2
AGND
3
AGND
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Power Button
Connector location: SW1
1
2
Pin
Definition
1
GND
2
PWRBTN#_IN
8
DNA 141 User Manual
