Chapter 3: System Setup
Installing an M.2 Key B+M Module
1.

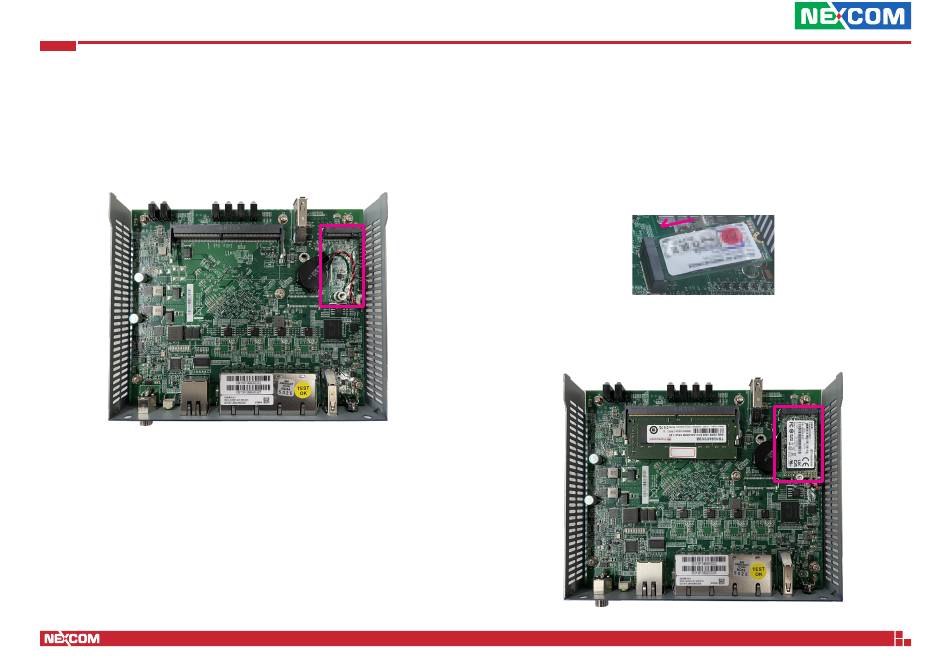

Locate the M.2 Key B+M slot on the motherboard.
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
2.
Insert the M.2 module into the M.2 slot at a 45 degrees angle until
the gold-plated connector on the edge of the module completely
disappears inside the slot.
3.
Push the M.2 module down and fasten an M.2 mounting screw into the
mounting hole to secure the module.
19
DNA 141 User Manual
