Chapter 1: Product Introduction
Knowing Your DNA 141

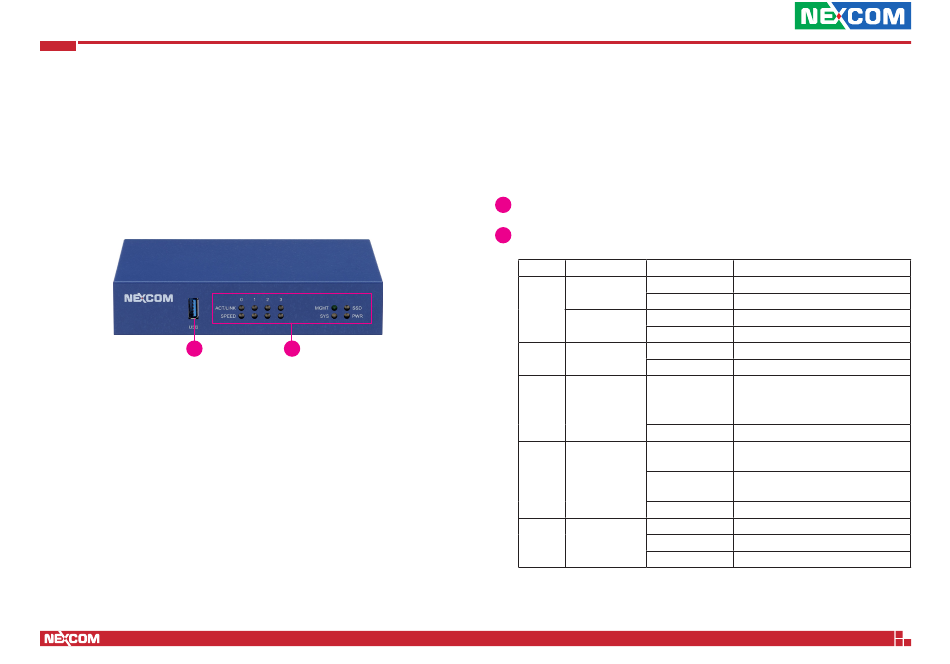

Front Panel
1
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
2
USB 3.2 Gen1 Port
1
LED Indicators
2
LED Indicator Behavior
Blinking green
Act/Link
LAN Steady green
0~3 Steady green
Speed
Steady yellow
Steady green
MGMT Speed
Off
Blinking green
SSD Storage
Off
Steady green
PWR Power Steady red
Off
Green blinking
S/W
SYS Orange blinking For the status during POST
Programmable
On/Off
3
Description
LAN is active with traffic
LAN is connected
2.5/1GbE link
100MbE link
Defined by user
Default is off
Blinking during access
*This indicator lights up only when the SSD
is connected; it will not function with the
default storage (eMMC).
No access
The power is connected, and the
power button is pressed.
The power is connected, but the
power button is not pressed.
The power is not connected.
For the status after POST
Enable/Diable S/W programming
