Summary of Contents for ColorKey MobilePar HEX 5

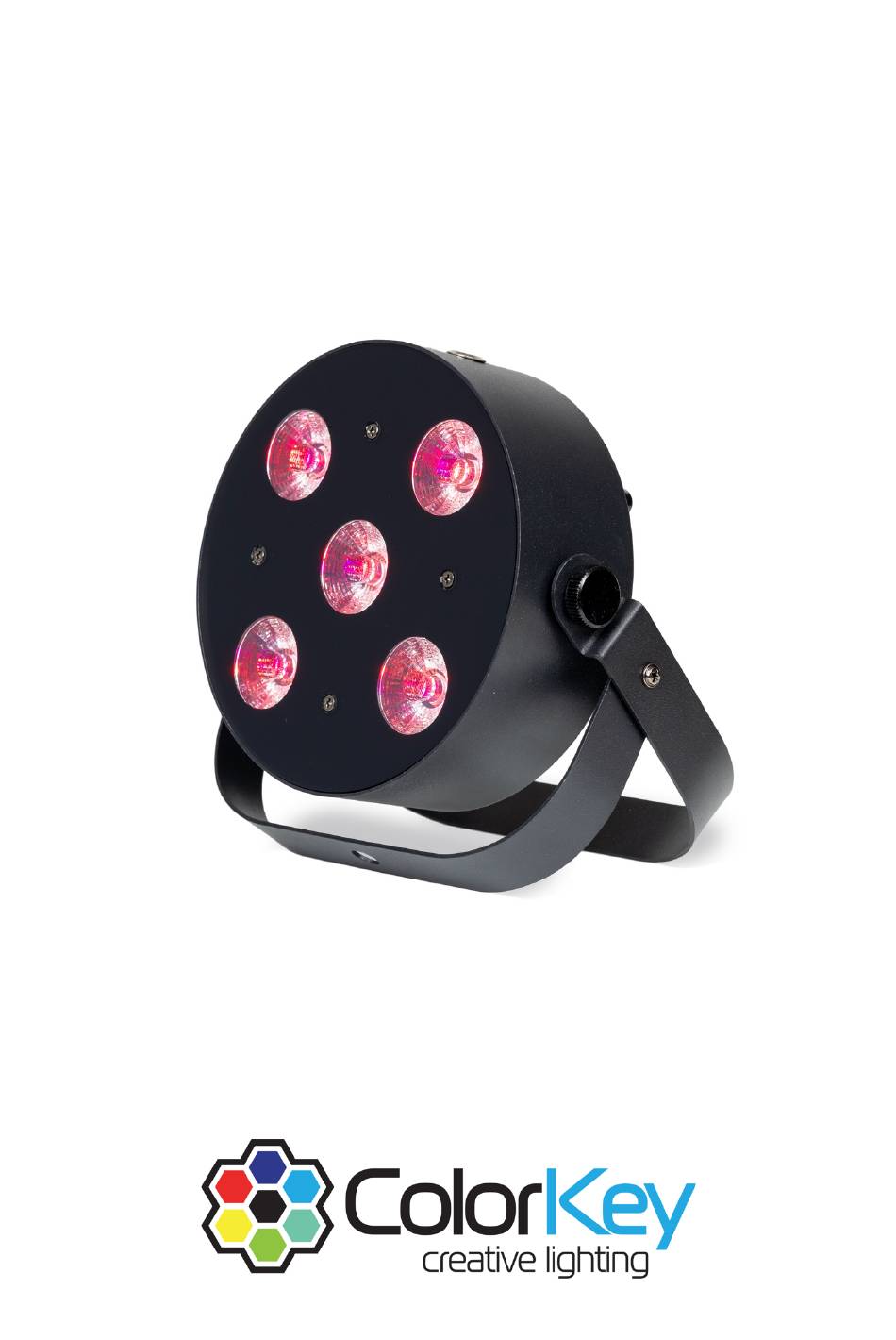

- Page 1 MobilePar HEX 5 CKU- 6030 USER MANUAL...
- Page 2 MAINTENANCE ............................15 TECHNICAL INFORMATION .......................... 16 Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse. MobilePar HEX 5 User Manual – V1...
- Page 3 Warning! To avoid electrical shock, be sure to disconnect power before any service or when moving or setting up the fixture. Service & Support Your ColorKey product includes a 2-year warranty. For technical support or to register your product, please visit https://www.colorkeyled.com/support/ You can also reach us by phone Monday thru Friday, 8:30am –5pm PST at (818) 578-4030.
- Page 4 Mounting Orientation MobilePar HEX 5 may be mounted in any position; however, make sure there is adequate ventilation around the product. Rigging • Before deciding on a location, make sure there is easy access to the product for maintenance and programming.
- Page 5 Front Back 1. LED Light Face 5. Power Input 2. Bracket Tightening Knob 6. Menu Display 3. Split Yoke Mounting Bracket 7. Menu Controls 4. Power On / Off Switch 8. Floor Mount MobilePar HEX 5 User Manual – V1...
- Page 6 Display Operation Menu: Access the menu/Scroll through menu options < : Scroll through menu selection or increase parameters > : Scroll through menu selection or decrease parameters Enter: Open/Select the current menu option MobilePar HEX 5 User Manual – V1...
- Page 7 3: Normal color strobe; 4: Light color strobe �� SPEED 01-09 Use ( < or >) to adjust the microphone sensitivity APP mode. While using your mobile phone. Press ”ENTER” to see Wi-Fi ID “LED-XXX” MobilePar HEX 5 User Manual – V1...
- Page 8 Auto Program: Jump 80-119 Auto Program: Fade CH 9 120-159 Auto Program: Pulse 160-189 Sound Active: Jump 190-219 Sound Active: Pulse 220-255 Sound Active: Color Strobe CH 10 0-255 Auto Program speed (Slow – Fast) MobilePar HEX 5 User Manual – V1...
- Page 9 Wireless Connections Your MobilePar HEX 5 unit can connect wirelessly to other units using specific 2.4G wireless DMX frequencies referred to as Group IDs 01-07. Your fixture can act as a Master controller, or it can be controlled as a Slave fixture, additionally it an be controlled by an external Wireless DMX controller.
- Page 10 Stand Alone Control Settings To use your MobilePar HEX 5 without a DMX Controller, use one of the various standalone modes below on your Master fixture. Static Color Programs To run the MobilePar HEX 5 in a Static color, do the following: 1.
- Page 11 Sound Sensitivity To set the Sound Active sensitivity on the MobilePar HEX 5, follow the instructions below: 1. Press (Menu) repeatedly to cycle to �� SUB 2. Use (<) or (>) to select desired program 3. Press (Enter) to cycle to �� SPEED 4.
- Page 12 Wireless App Connections Your MobilePar HEX 5 unit can connect wirelessly to the DJ Link Light iOS App. Please follow the instructions below for making the connection: Connecting to the Wireless App To connect iOS device with MobilePar HEX 5, follow the instructions below: 1.
- Page 13 RF Remote Overview Using RF Remote To use RF Remote on the MobilePar HEX 5, follow the instructions below: 1. Turn on MobilePar HEX 5 2. Press (Menu) repeatedly to cycle to (rF) a. Press Enter to cycle to Slave COLOR WHEEL 1.
- Page 14 Battery Life and Specifications MobilePar HEX 5 features a rechargeable lithium-ion battery for wire free use. The battery can power the light for up to 9 hours from a full charge. The battery charges whenever the included power cable is connected and plugged into a power source.
- Page 15 4. Apply the solution directly to a soft, lint free cotton cloth or a lens cleaning tissue. 5. Softly drag any dirt or grime to the outside of the lenses surface. 6. Gently polish the lenses surfaces until they are free of haze and lint. MobilePar HEX 5 User Manual – V1...
- Page 16 Please note: As we continue to work towards improving our products and your experience as a user, we recommend that you check our website periodically for updates to user manuals and specifications at www.ColorKeyLED.com or you may contact us directly at info@colorkeyled.com. MobilePar HEX 5 User Manual – V1...
