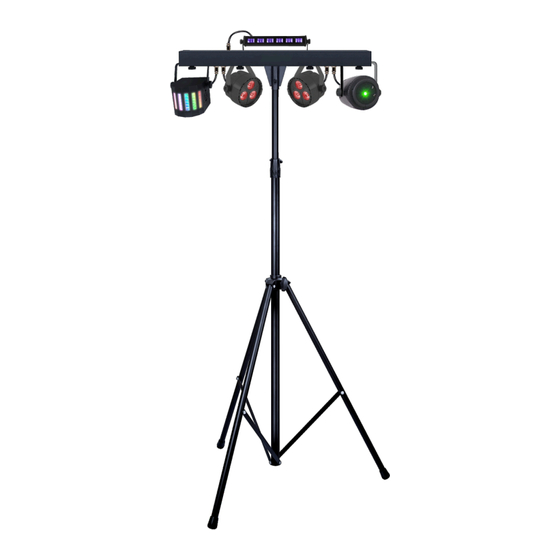

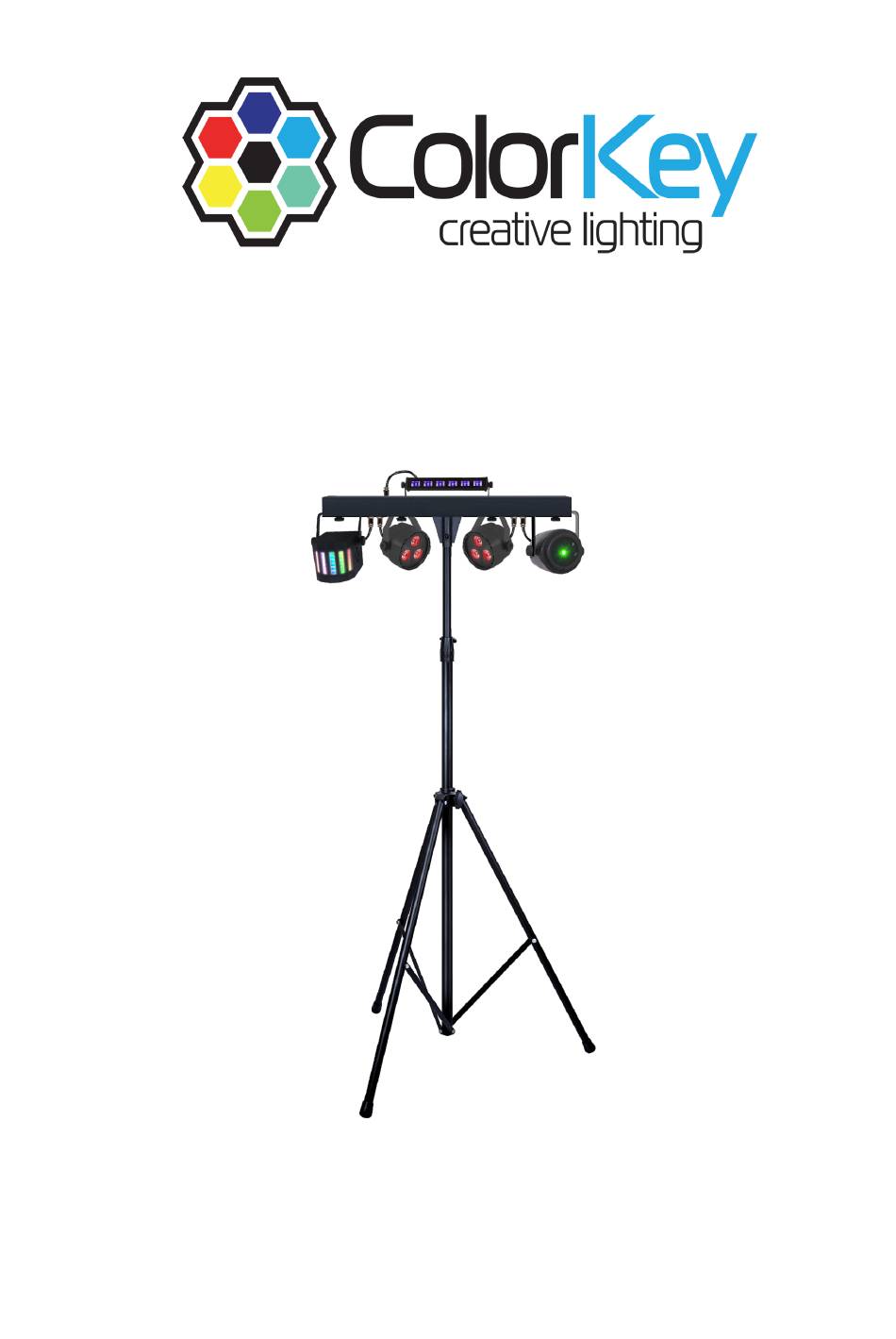

- Page 1 PartyBar FX CKU-3030 USER MANUAL...
- Page 2 Introduction Thank you for purchasing the ColorKey PartyBar FX. Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse. Ø Packing list n 1x PartyBar FX n 1x IR Remote n 1x 6’...
- Page 4 PARTYBAR SETUP INSTRUCTIONS PLEASE READ CAREFULLY BEFORE USING THE STAND TO AVOID DAMAGE AND INJURY The PartyBar tripod stand includes a removable extension pole, which has the advantage of shrinking the footprint of the stand when disassembled, for ease of transportation. With the extension pole installed, the stand can lift your xtures over 7ft in the air.
-
Page 5: Display Operation
Display Operation Ø MENU: Access the menu/Scroll through menu options Ø UP: Scroll through menu selections or increase parameters Ø DOWN: Scroll through menu selections or decrease parameters Ø ENTER: Open/Select the current menu option... - Page 6 DMX Settings & Connections...
-
Page 8: Menu Guide
Menu Guide... -
Page 9: Dmx Values
DMX Values DMX mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. - Page 10 12 channels mode Channel Value Function 000-255 Red (0-100%) 000-255 Green (0-100%) 000-255 Blue (0-100%) Derby 000-255 White (0-100%) 000-255 Motor 000-255 Red (0-100%) 000-255 Green (0-100%) Pars 1 & 2 000-255 Blue (0-100%) 000-255 White (0-100%) 000-063 064-127 CH10 Laser 128-197 Green...
- Page 11 Operating Instructions Auto mode: To access the auto modes, press the “MENU” button and use the “UP” and “DOWN” buttons to show At01 on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between At01 ~ At09. Now press the “ENTER” button and use the “UP”...
-
Page 12: Master/Slave Mode Operation
Master/Slave Mode Operation Master/slave mode: To set the master unit select your desired program (auto or sound). To set the other units in slave mode, press the “MENU” button to show SLAu on the LED display. Press the “ENTER” button to confirm the setting. The unit will now run in sequence with the master unit. -
Page 13: Ir Remote Functions
IR Remote Functions Button functions: - Sets the unit into blackout on or off - Runs the Auto modes - Use the Auto ‘+’ and ON/OFF ‘-’ buttons to change the desired program - Runs the Sound 1 mode AUTO - Runs the Sound 2 mode - Runs the Sound 3 mode SOUND... -
Page 14: Troubleshooting
Troubleshooting Problem Solutions u Make sure that the DMX cable is properly connected u Make sure that the DMX controller is operational No DMX control u Check the DMX cable for tears or breaks u Make sure that the fixture is in DMX mode Fixture does not u Make sure that the fixture is in Sound Active mode. -
Page 15: Technical Information
Dimming: 0-100% Product size: 200 x 750 x 165 mm Net Weight: 5.7 kgs Notice to consumer: ColorKey offers a 2-year limited warranty. Please visit our website at www.ColorKeyLED.com to register your product. Please note: As we continue to work towards improving our products and your experience...
