SPECIFICATIONS
Input Voltage
AC 100V - 260V,50-60Hz
Power Consumption
110W
LEDs
4 X 25 - watt R/G/B 3in1 COB LEDs
LED Life Span
50000 ~100000 hours
DMX Channels
3,9, 12 or 18CH
Control Mode
Standalone,Mater/slave, Auto,Sound Active
Signal Input & Output
3 - pin XLR Male, 3 - pin XLR Female
Function Effect
Dimmer, Strobe, Eotic, Gradual Change
Refresh Rate
1.5KHz ,flicker free for TV and camera shooting
Beam Angle
30°
Cooling Mode
Fan cooling
Protection Grade
IP20
Anti-electricity Intension
>1.5KV
Insulation Resistance
>2MΩ
Dimensions
239 X 193 X 142 mm ( 9.4" X 7.6" X 5.6" )
Weight
2.8 kg ( 6.2 lbs)
Page 12

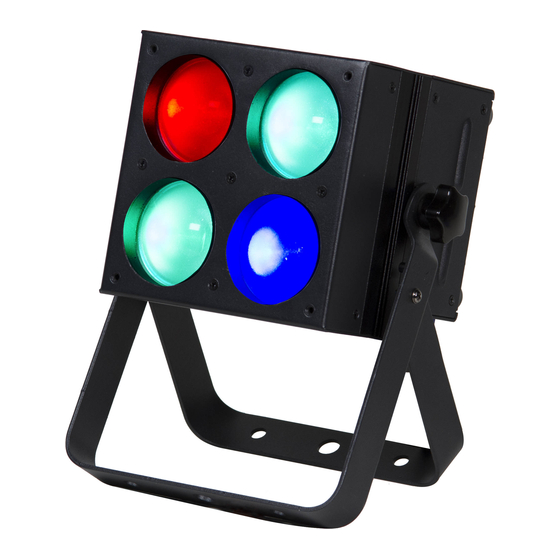

StagePar COB TRI 4
CKU02-2300
USER MANUAL
Advertisement
Table of Contents
Related Manuals for ColorKey StagePar COB TRI 4
Summary of Contents for ColorKey StagePar COB TRI 4
-
Page 1: Specifications
50000 ~100000 hours DMX Channels 3,9, 12 or 18CH Control Mode Standalone,Mater/slave, Auto,Sound Active StagePar COB TRI 4 Signal Input & Output 3 - pin XLR Male, 3 - pin XLR Female CKU02-2300 Function Effect Dimmer, Strobe, Eotic, Gradual Change Refresh Rate 1.5KHz ,flicker free for TV and camera shooting... -
Page 2: Table Of Contents
TABLE OF CONTENTS TROUBLESHOOTING ......PACKAGE CONTENTS Following are some sample problems and potential solutions to those problems......SAFETY INSTRUCTIONS Q1: The light does not turn on and the menu will not display. A1: Check the power cable to ensure it is properly plugged in. Check the source power FEATURES ........... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Please read these instructions carefully. They include 103-111 Program 05 important information about the installation,usage and 112-120 Program 06 maintenance of this product. 121-129 Program 07 130-138 Program 08 Please keep this User Guide for future use. If you sell the unit to someone else, be sure that they also receive this User Guide. -
Page 4: Features
FEATURES 18CH Mode Four 25 - watt R/G/B 3 in 1 COB LEDs. CHANNEL VALUE FUNCTION PRIORITY REMARKS 3,9, 12 or 18-channel DMX modes. 000-255 General dimming 0-100% 28 built-in presets/programs. 32-bit smooth dimming technology. 000-255 Red dimming 0-100% Flicker free for TV and camera shooting. 000-255 Variable electronic strobe, dimming and color changing effect. -
Page 5: Menu System
MENU SYSTEM 220-228 Program 18 Use the four buttons under the LED display on the back to set the 229-237 Program 19 mode in which the light will operate. The buttons perform the 238-246 Program 20 following functions: 247-251 Program 21 MENU DOWN ENTER... -
Page 6: Master/Slave Mode
9CH Mode “nodE” CHANNEL VALUE FUNCTION PRIORITY REMARKS The “nodE” function serves as a speed limiter for manual dims and fades. When set to “nod0”, any 000-255 General dimming 0-100% manual dims or fades will be in real time, meaning that light will dim or fade as fast as you move the slider on the controller.
