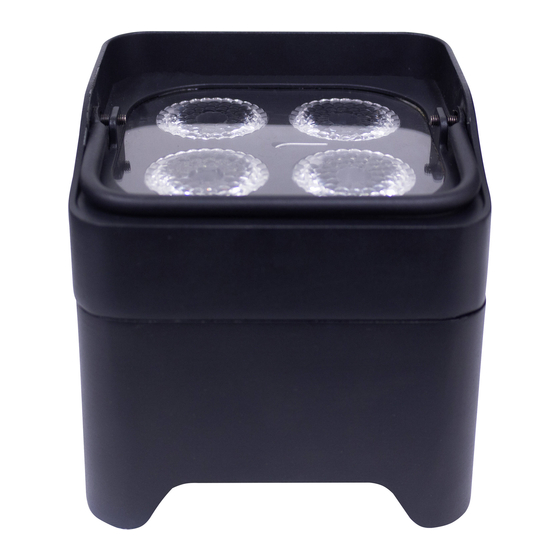

Summary of Contents for ColorKey MobilePar Mini Hex 4
- Page 1 MobilePar Mini Hex 4 CKW-6020 USER MANUAL...
- Page 2 Introduction Thank you for purchasing the ColorKey MobilePar Mini Hex 4. Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse. Ø Packing list...
-
Page 3: Display Operation
Display Operation Ø MENU: Access the menu/Scroll through menu options Ø ENTER: Open/Select the current menu option Ø UP: Scroll through menu selection or parameter increase Ø DOWN: Scroll through menu selection or parameters decrease Ø MASTER: Master indicator Ø SOUND: Sound control indicator Ø... - Page 4 DMX Settings & Connections ① Wired DMX Cable Connections Use the provided DMX to Data cables to connect to the in/out network sockets on the light for use with a cabled connection. Note: 1. Turn off the wireless DMX when using a DMX cable connection. 2.
- Page 5 Setting a Wireless Connection 1. In menu (SnAL) select (ULee) (Wireless) to enable wireless mode. 2. Press the (DMX Select) button to set the Group ID of the receiving light to be the same as the transmitter 3. After receiving DMX data, the transmitter will automatically choose the best band for non- interference frequency to send the data, communicated by red LED flashing, and the receiver will change its communication frequency until it receives the same ID Group ID code and band data.
-
Page 6: Menu Guide
Menu Guide Display Numerical Function and description Show value Addr 1-512 DMX512 address setting ChNd 6/10Ch 6/10 channel selection SLNd nASt/SL 1/SL Master/Slave mode SoUn on/off CoLo Co1-Co24 ShNd dFin FAde SP1-SP9 SnAL ULee/Uire Wireless DMX control BLnd no/yes On/oFF IR remote control On/oFF ON/OFF... -
Page 7: Dmx Values
DMX Values 6 channels mode Channel Value Function 0-255 0-255 Green 0-255 Blue 0-255 Amber 0-255 White 0-255 10 channels mode Value Function 0-255 0-255 Green 0-255 Blue 0-255 Amber 0-255 White 0-255 0-255 Master Dimmer 3-255 Strobe 000-002 No function 003-127 Color1-Color32 128-191... -
Page 8: Master/Slave Mode Operation
Master/Slave Mode Operation Master/Slave Master/Slave mode allows you to connect multiple units together using one (1) unit to control others in a chain. When a fixture is set to ‘Master Mode,’ this unit will always act as a controlling unit until it is switched out of ‘Master Mode’. The Master unit will send out signal via DMX to Slave units which will react in synchronization. -
Page 9: Technical Information
Battery working time: (+/-) 4 hours Full color, (+/-) 15 hours single color or auto run Product size: 130 x 130 x 122 mm Net Weight: 1.9 kgs Notice to consumer: ColorKey offers a 2-year limited warranty. Please visit our website at www.ColorKeyLED.com to register your product.
