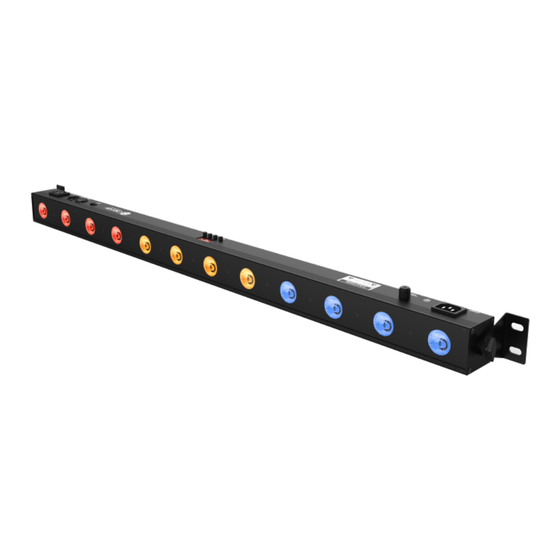

- Page 1 StageBar TRI 12 CKU-3040 USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ............................... 3 SAFETY ..................................3 SERVICE & SUPPORT ............................3 DISPLAY OPERATION ............................4 MENU GUIDE ................................5 DMX VALUES ................................6 INFRARED REMOTE (IR) CONTROL ........................9 SETUP & CONNECTIONS ............................ 11 TROUBLESHOOTING ............................11 TECHNICAL INFORMATION .......................... -
Page 3: Introduction
• Do not operate this fixture if the power cord has been damaged. Turn off fixture and replace with a power cord of similar rating. Service & Support Your ColorKey product includes a 2-year warranty. For technical support or to register your product, please visit https://www.colorkeyled.com/support/... -
Page 4: Display Operation
Display Operation MENU: Access the menu/Scroll through menu options Scroll through menu selection or increase parameter DOWN: Scroll through menu selection or parameters decrease ENTER: Open/Select the current menu option... -
Page 5: Menu Guide
Menu Guide Menu Item Values Function Show A001 1-512 DMX Mode CH03 3/5/7/36 DMX Channel Select CC70 0-99 Auto Run (All-Colors) CP70 0-99 Pulse Change DE70 0-99 Fade Change Au01 1-14 Auto Pixel Change SP70 0-99 Auto Pixel Speed bE 0 0-3 RGB Sound Pixel Mode R255... -
Page 6: Dmx Values
DMX Values 3 channels mode Channel Value Function 0-255 Red dimming (from dark to bright) 0-255 Green dimming (from dark to bright) 0-255 Blue dimming (from dark to bright) 5 channels mode Channel Value Function 0-255 Dimmer (from dark to bright) 0-255 Strobe Speed (from slow to fast) 0-255... - Page 7 7 channels mode Channel Value Function 0-255 Dimmer 0-255 Strobe speed 0-13 Dimmer 14-26 Auto Run 27-39 Pixel Change 40-52 Fade Change 53-65 Pulse Change 66-78 Effect mode 1 79-91 Effect mode 2 92-104 Effect mode 3 105-117 Effect mode 4 118-130 Effect mode 5 131-143...
- Page 8 36 channels mode Channel Value Function 0-255 R1 dimmer 0-255 G1 dimmer 0-255 B1 dimmer 0-255 R2 dimmer 0-255 G2 dimmer 0-255 B2 dimmer … 0-255 R12 dimmer 0-255 G12 dimmer 0-255 B12 dimmer...
-
Page 9: Infrared Remote (Ir) Control
To use the IR remote, simply point the remote at the IR receiver on the lighting fixture. The IR receiver on the StageBar TRI 12 is located front panel with the LED lenses. *DMX512 data transmissions will override programs set by IR Control 1. - Page 10 4. Auto Mode In Auto mode, the light loops through various preprogrammed colors. To turn on Auto mode, press the Flash button, then press (+) or (-) to increase or decrease the speed of the program 5. Strobe In Strobe mode, the light will begin to strobe when the button is pressed. Use(+) or (-) to increase or decrease the speed of the program 6.
-
Page 11: Setup & Connections
Setup & Connections ① Wired DMX Cable Connections Use a DMX to cable to connect to the in/out sockets on the bottom of the light for use with a cabled connection for DMX 512 control. WIRELESS WIRELESS WIRELESS MASTER MASTER MASTER SOUND SLAVE... -
Page 12: Technical Information
Technical Information • 12x3W RGB 3-in1 LEDS • DMX Channel Modes: 3 / 5 / 7 / 36 • Control modes: DMX 512, Master /Slave, IR Remote, Sound to Dimmer, Stand Alone Programs • 0-100% Dimmer • Lamp rated life: >50000 Hours •...
