- Page 1 CKU-5060 USER MANUAL...
-
Page 2: Table Of Contents
TROUBLESHOOTING ................... ERROR! BOOKMARK NOT DEFINED. TECHNICAL INFORMATION .......................... 16 Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse. Mover Beam 100 User Manual – V1... -
Page 3: Introduction
Warning! To avoid electrical shock, be sure to disconnect power before any service or when moving or setting up the fixture. Service & Support Your ColorKey product includes a 2-year warranty. For technical support or to register your product, please visit https://www.colorkeyled.com/support/ You can also reach us by phone Monday thru Friday, 8:30am –5pm PST at (818) 578-4030. -
Page 4: Product Overview

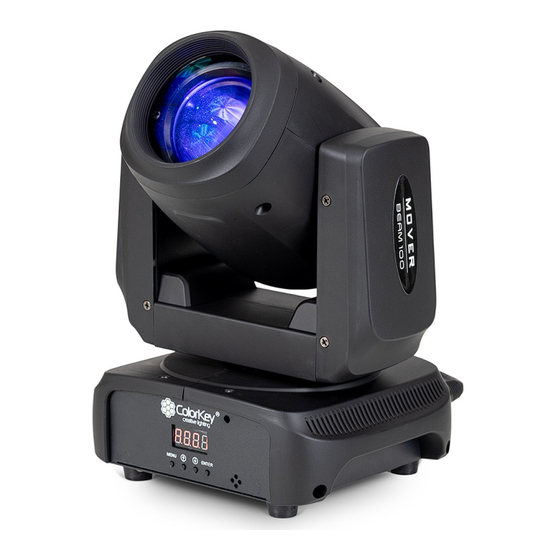

Product Overview Front 1. Moving Head 4. LED Display 2. Yoke 5. Menu Guide Buttons 3. Base 6. Microphone Mover Beam 100 User Manual – V1... - Page 5 Back 1. DMX In 3. Power In 2. DMX Out 4. Fan Mover Beam 100 User Manual – V1...
-
Page 6: Mounting
Mounting Orientation Mover Beam 100 may be mounted in any position; however, make sure there is adequate ventilation around the product. Rigging • Before deciding on a location, make sure there is easy access to the product for maintenance and programming. -
Page 7: Display Operation
Display Operation MENU: Access the menu Scroll through menu selection or parameter increase DOWN: Scroll through menu selection or parameter decrease ENTER: Make Selection Mover Beam 100 User Manual – V1... -
Page 8: Menu Guide
Screen will turn off after 5 seconds Screen will remain on at all times Display reverse dISP Display regular X motor regular rPAN X motor reverse Y motor regular rTiL Y motor reverse REST System Reset Temperature display Mover Beam 100 User Manual – V1... -
Page 9: Gobo And Color Channel Assignments
Gobo and Color Channel Assignments Gobos Color Selections Mover Beam 100 User Manual – V1... -
Page 10: Dmx Values
Gobo 12 - Circle Outline 120-187 Counter Clockwise Rotation (Slow to Fast) 188-255 Clockwise Rotation (slow to fast) 0-99 Prism Motor Off 100-127 Prism Motor On 128-255 Prism Rotation (slow to fast) 0-126 No Function Mover Beam 100 User Manual – V1... - Page 11 Gobo 6 - Flower 060-069 Gobo 7 - Cube Outline 070-079 Gobo 8 - Pinpoint Circle 080-089 Gobo 9 - Triangle Outline 090-099 Gobo 10 - Four Point Star 100-109 Gobo 11 - Four Dot Stack Mover Beam 100 User Manual – V1...
- Page 12 Prism Motor On 128-255 Prism Rotation (slow to fast) 0-126 No Function 127-255 Turn on Rainbow Prism 0-59 No Effect 60-159 Auto Mode 160-255 Sound Active Mode 0-249 No Function 250-255 Reset (5 Seconds) Mover Beam 100 User Manual – V1...
-
Page 13: Stand Alone Settings
Stand Alone Settings To use your Mover Beam 100 without a DMX Controller, use one of the various standalone modes below. *Please note, we do not recommend using products in standalone mode that are connected to a DMX string and controller. Standalone mode may transmit DMX signals that could interfere with DMX signals from the controller. - Page 14 3. Use (Up or Down) to turn the Tilt orientation ON or OFF 4. Press (Enter) to return to menu Screen Reverse To set the display orientation on the Mover Beam 100, follow the instructions below: 1. Press (Menu) 2. Use (Up or Down) to select LED 3.
-
Page 15: Maintenance
5. Apply the solution directly to a soft, lint free cotton cloth or a lens cleaning tissue. 6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Mover Beam 100 User Manual – V1... -
Page 16: Technical Information
Please note: As we continue to work towards improving our products and your experience as a user, we recommend that you check our website periodically for updates to user manuals and specifications at www.ColorKeyLED.com or you may contact us directly at info@colorkeyled.com. Mover Beam 100 User Manual – V1...
