Q2: The light will not turn on, but the menu does display.
A2: Using the menu, ensure that the color dimmers are not all set to 000.
Q3: The light does not respond to DMX commands.
A3: Ensure that the light is set to DMX mode with a valid DMX address. Check for
address conflicts with other devices. Check the cabling to ensure that there is continuity
between the light and the DMX controller. Verify that there is a terminator at the end of
the chain. Verify that the DMX controller is operating properly with another DMX device.
SPECIFICATIONS
Input Voltage
AC 100V - 260V,50-60Hz
Power Consumption
55W
Battery Spec
5200 mAH,14.8 V
Charger Output voltage
16.8 V,3A
LEDs
4 X 12 - watt R/G/B/A/W/UV 6in1 LEDs
LED Life Span
50000 ~100000 hours
DMX Channels
3,6,8,10 or 11CH
Control Protocol
USITT DMX512
Control Mode
Standalone,Mater/slave, Auto,Sound Active
Signal Input&Output
3 - pin XLR Male, 3 - pin XLR Female
Wireless
2.4G,126 channels jumping frequency automatically
IR Control
Infrared remote control up to 30 ft./ 10M .
Function Effect
Dimmer, Strobe, Eotic, Gradual Change
Refresh Rate
1.5KHz
Beam Angle
30°
Cooling Mode
Natural convection(no fan, no noise)
Protection Grade
IP20
Anti-electricity Intension
>1.5KV
Insulation Resistance
>2MΩ
Dimensions
167 X 138 X 188 mm ( 6.6" X 5.4" X7.4" )
Weight
3.1kg ( 6.84lbs)
Page 12

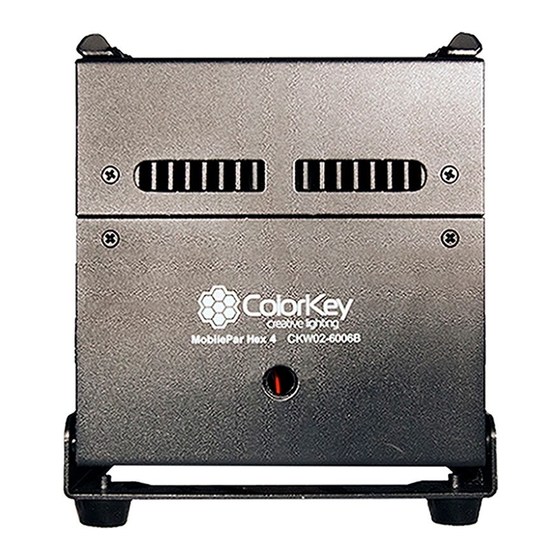

MobilePar Hex 4
CKW02-6006
USER MANUAL
Advertisement
Table of Contents
Related Manuals for ColorKey MobilePar Hex 4
Summary of Contents for ColorKey MobilePar Hex 4
-
Page 1: Specifications
DMX controller. Verify that there is a terminator at the end of the chain. Verify that the DMX controller is operating properly with another DMX device. SPECIFICATIONS MobilePar Hex 4 Input Voltage AC 100V - 260V,50-60Hz... - Page 2 IRC REMOTE TABLE OF CONTENTS When using IR remote controller, please turn off wireless DMX and cut off DMX connections....... PACKAGE CONTENTS ......SAFETY INSTRUCTIONS FEATURES ..................DIMENSIONS ......SAMPLE WIRING DIAGRAM The function of each button on the remote controller is shown in below chart.
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS PRESETS The following table describes in basic terms each of the 68 program presets built Please read these instructions carefully. They include into the fixture. The SP-- value determines the speed of any color cycling, flashing, important information about the installation,usage and or fading. -
Page 4: Features
FEATURES Four 12-watt R/G/B/A/W/UV 6 in 1 LEDs. 11CH Mode 3,6,8, 10 or 11-channel DMX modes. Built-in 5200 mAH lithium battery,The battery is very easy to replace. CHANNEL VALUE FUNCTION PRIORITY REMARKS Built-in DMX512 wireless receiver/transmitter,adopt 2.4G ISM frequency section( global opening 000-255 General dimming 0-100% section) without permission limited. -
Page 5: Control Panel
CONTROL PANEL 8CH Mode CHANNEL VALUE FUNCTION PRIORITY REMARKS 1.WIRELESS DMX The fixture Built-in DMX512 wireless receiver/transmitter,adopt 2.4G ISM frequency section( global 000-255 General dimming 0-100% opening section) without permission limited. High effective GFSK modulate,communication design ; 000-255 Red dimming 0-100% 126 channels jumping frequency automatically，high anti-jamming ability. -
Page 6: Menu System
MENU SYSTEM Notes: USon = White balance is on Use the four buttons under the LED display on the back to set the USoF = White balance if off mode in which the light will operate. The buttons perform the SEon = The white balance values will be sent to other lights in this universe.
