Page 1: User Manual

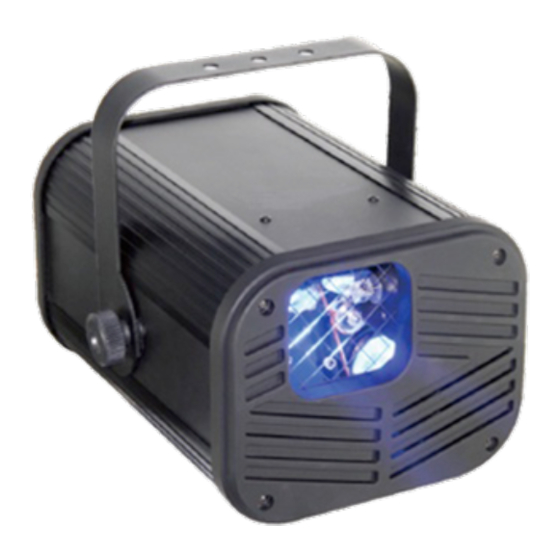

Blaster 2R Beam, Scanner, & Laser Simulator Effects CKU01-1040 (US) / CKE01-1040 (EU) USER MANUAL... -
Page 2: Packing List
Introduction Thank you for purchasing the ColorKey Blaster 2R. Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse. Packing list n 1x Blaster 2R fixture n... -
Page 3: Display Operation
Display Operation • MENU: Access the menu/Scroll through menu options • ENTER: Open/Select the current menu option • UP: Scroll through menu selection or parameter increase • DOWN: Scroll through menu selection or parameters decrease DMX Values DMX 17 Channel Mode Channel Function Tilt... - Page 4 DMX 21 Channel Mode Channel Function Pan Fine (16 bit) Tilt Tilt Fine (16 bit) Pan shaking Tilt shaking Color Gobo Pattern Macros Pattern Rotation (double directions) Pattern Rotation (horizontal/vertical) Pattern Zoom Horizontal Pattern Movement Vertical Pattern Movement Eccentri Eccentri Shaking Prism Prism Auto Rotation Dimmer...
-
Page 5: Menu Guide & Operation
Menu Guide & Operation A001 DMX Address DMX Address code set A512 17Ch Channel Mode Channel selection 21Ch Sound Show Mode Voice control, auto control Auto Master Slave Mode Master or Slave mode selection Slave Black Out Standby selection Sound State Voice control switch Sound Sense 0--100... - Page 6 Back Light LCD display backlight on/off Lamp On/Off Lamp switches Auto Test Test unit ---°C Not connected to the temperature sensor Temp. -20--200°C Display internal temperature of the unit Fixture Time 0--999 Total running time Firmware Version V1.01 Version numbering Factory Defaults Restore the factory default Settings System Reset...
-
Page 7: Dmx Connections
DMX Connections Ø DMX Cable： The Blaster 2R can be controlled via DMX using a 3-pin XLR connection. The standard DMX connection is XLR is: one end connects to the male plug, and the other connects to the female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal Noted：In order to avoid failures and interference signal transmission，we connect a... -
Page 8: Master/Slave Mode Operation
Master/Slave Mode Operation Master/Slave Master/Slave mode allows you to connect multiple units together using one (1) unit to control others in a chain. When a fixture is set to ‘Master Mode,’ this unit will always act as a controlling unit until it is switched out of ‘Master Mode’. The Master unit will send out signal via DMX to Slave units which will react in synchronization. -
Page 9: Technical Information
Weight: 16.5lbs (7.5kg) Dimensions: 14” x 10.5” x 9.5” (358 x 268 x 242mm) Notice to consumer: ColorKey offers a 1-year limited warranty. Please visit our website at www.ColorKeyLED.com to register your product. Please note: As we continue to work towards improving our products and your experience as a user, we recommend that you check our website periodically for updates to user manuals and specifications at www.ColorKeyLED.com or you may contact us directly at...
