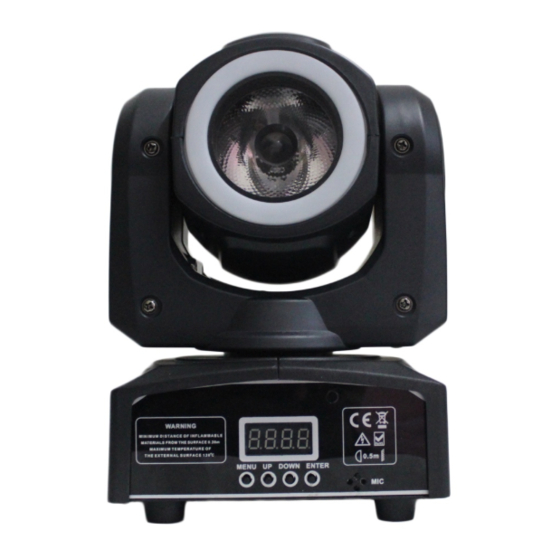

- Page 1 Mover Halo Beam QUAD CKU01-5035 USER MANUAL...
- Page 2 Introduction Thank you for purchasing the ColorKey Mover Mini Superbeam QUAD 4. Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse. Packing list...
-
Page 3: Display Operation
Display Operation Ø MENU: Access the menu/Scroll through menu options Ø ENTER: Open/Select the current menu option Ø UP: Scroll through menu selection or parameter increase Ø DOWN: Scroll through menu selection or parameters decrease... -
Page 4: Menu Guide
Menu Guide Addr A001-A512 DMX512 address Chnd 16CH 16channel setting 30CH 30channel setting SLnd nAST SL 1 Master mode/Slave mode SL 2 d512 SHnd SH 1 SH 2 Sound Active Modes SH 3 SH 4 Auto Aut 1-Aut 4 Auto effect selection SP1-SP9 Speed selection (auto mode) SEnS... -
Page 5: Dmx Values
DMX Values 16 Channel Mode Channel Value Function 0-255 Pan (Coarse) 0-255 Pan (Fine) 0-255 Tilt (Coarse) 0-255 Tilt (Fine) 0-255 Rotation Speed 0-255 Dimmer ---- 9-250 Strobe (Beam) 251-255 Open 0-255 Red dimming 0-255 Green dimming 0-255 Blue dimming 0-255 White dimming ----... - Page 6 248-255 Ring Chase 12 Chase Off (ch14 0-127) Chase On (ch14 128-255) Chase Speed (slow 0-10 Ring Off to fast) 11-44 Ring Red 45-80 Ring Green 81-114 Ring Blue 115-149 Ring Yellow 150-184 Ring Pink 185-220 Ring Cyan 221-255 Ring White 0-199 No function 200-209...
- Page 7 30 Channel Mode Channel Function volume 0-255 Pan (Coarse) 0-255 Pan (Fine) 0-255 Tilt (Coarse) 0-255 Tilt (Fine) 0-255 Rotation Speed 0-255 Dimmer ---- 9-255 Strobe (Beam) 0-255 Red dimming 0-255 Green dimming 0-255 Blue dimming 0-255 White dimming 0-255 Ring R1 dimming 0-255 Ring G1 dimming...
-
Page 8: Dmx Connections
DMX Connections Ø DMX Cable ： This fixture can be controlled via DMX using a 3-pin XLR connection. The standard DMX connection is XLR is: one end connects to the male plug, and the other connects to the female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal Noted：In order to avoid failures and interference signal transmission，we connect a resistance120Ω（1/4W）at connecting... -
Page 9: Master/Slave Mode Operation
Master/Slave Mode Operation Master/Slave Master/Slave mode allows you to connect multiple units together using one (1) unit to control others in a chain. When a fixture is set to ‘Master Mode,’ this unit will always act as a controlling unit until it is switched out of ‘Master Mode’. The Master unit will send out signal via DMX to Slave units which will react in synchronization. -
Page 10: Technical Information
IEC power connection Size: 11.4”x8.25”x8.25” (29x21x21 cm) Weight: 6.6 Lbs. (3kg) Notice to consumer: ColorKey offers a 1-year limited warranty. Please visit our website at www.ColorKeyLED.com to register your product. Please note: As we continue to work towards improving our products and your experience...
