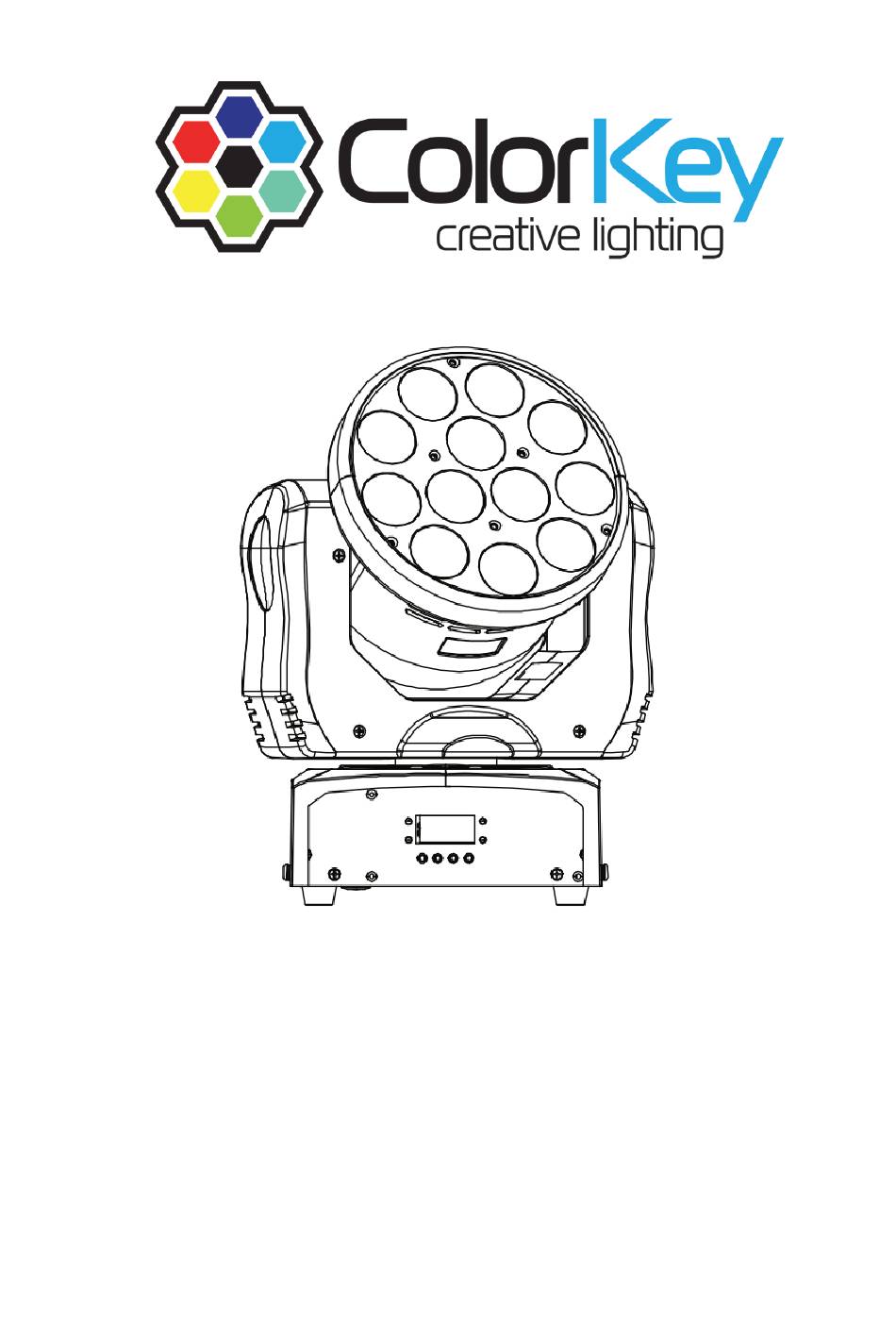

  • Page 1 Mover Wash HEX 12 RGBAW+UV Moving Head Wash Light CKU-5039 USER MANUAL...
  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION ............................3 SERVICE & SUPPORT ..........................3 DISPLAY OPERATION ..........................4 MENU GUIDE .............................. 5 DMX VALUES ............................. 6 9 CHANNELS MODE ..........................6 15 CHANNELS MODE ..........................7 OPERATION ............................... 8 TROUBLESHOOTING ..........................9 ..................................10 TECHNICAL INFORMATION ........................
  • Page 3: Introduction

    • Do not operate this fixture if the power cord has been damaged. Turn off fixture and replace with a power cord of similar rating. Service & Support Your ColorKey product includes a 2-year warranty. For technical support or to register your product, please visit https://www.colorkeyled.com/support/ You can also reach us by phone Monday thru Friday, 8:30am –...
  • Page 4: Display Operation

    Display Operation Menu: Access the menu/Scroll through menu options (*Hold Menu for two seconds to exit the menu and return to your chosen program) Scroll through menu selections or increase parameters Down: Scroll through menu selections or parameter decrease Enter: Open/Select the current menu option...
  • Page 5: Menu Guide

    Menu Guide Menu Item Values Function Addr A001-A512 DMX Address setting ChNd 9ch / 15ch Channel selection mode ShNd Show0-Show4 Performance modes SLNd NASt / SLV1 / SLV2 Master / Slave settings Soun No/Yes Sound active mode SEnS 0-100 Sound active sensitivity Blnd No/Yes Boot pause mode...
  • Page 6: Dmx Values

    DMX Values 5 Channels Mode Channel Value Function 000-007 008-255 Dimmer (0 to 100) 000-007 Open 008-037 Random Strobe 038-067 Sound Active Strobe 068-255 Strobe (Rate from slow to fast) 000-007 No Function 008-0037 038-067 Green 068-097 Blue 098-127 White 128-157 Orange 158-187...
  • Page 7: Channels Mode

    9 Channels Mode Channel Value Function 0-255 Pan motor adjustment 0-255 Tilt motor adjustment 0-199 Dimmer from dark to bright 200-250 Strobe from slow to fast 251-255 All bright 0-255 0-255 Green 0-255 Blue 0-255 White 0-255 Amber 0-255 15 Channels Mode Value Function 0-255...
  • Page 8: Operation

    • Your Mover Wash will now start at desired position going forward. Controlling your Mover Wash HEX 12 using a DMX controller: • Use a DMX cable to connect your Mover Wash HEX 12 to the DMX in/out sockets on the bottom of the light.
  • Page 9: Troubleshooting

    Using Slave modes (SL1, SL2) to create a light show Using 4 or more lights for best effect, Mover Wash HEX can help create auto-light shows by engaging Auto Programs on the Master fixture and having slaves connected in varying sequences to display varied yet synchronized light shows. 1.
  • Page 10: Technical Information

    Technical Information • 12x12W RGBAW+UV LED Wash Light • DMX Channel Modes: 9 / 15 channels • Control modes: DMX 512, Master /Slave, Sound active, Auto programs • Pan: 540o • Tilt: 270o • Power consumption: 160W • Power supply: AC90-230V; 50-60Hz •...
