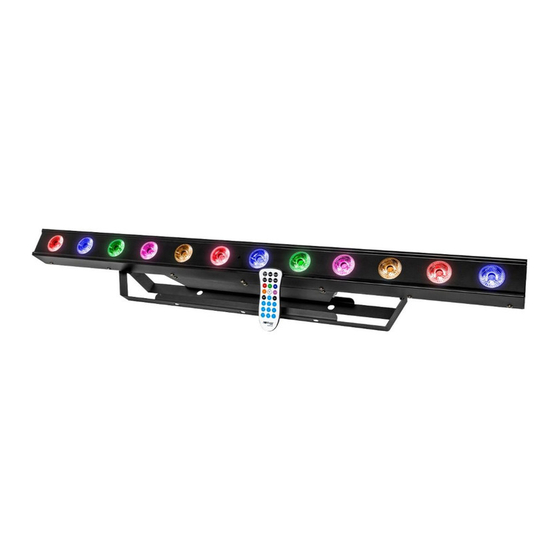

Summary of Contents for ColorKey StageBar HEX 12
- Page 1 StageBar HEX 12 CKU-3050 USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ............................... 3 SAFETY ..................................3 SERVICE & SUPPORT ............................3 DISPLAY OPERATION ............................4 MENU GUIDE ................................5 DMX VALUES ................................6 INFRARED REMOTE (IR) CONTROL ........................9 SETUP & CONNECTIONS ............................ 11 TROUBLESHOOTING ............................11 TECHNICAL INFORMATION .......................... -
Page 3: Introduction
• Do not operate this fixture if the power cord has been damaged. Turn off fixture and replace with a power cord of similar rating. Service & Support Your ColorKey product includes a 2-year warranty. For technical support or to register your product, please visit https://www.colorkeyled.com/support/... -
Page 4: Display Operation
Display Operation MENU: Access the menu/Scroll through menu options Scroll through menu selection or increase parameter DOWN: Scroll through menu selection or parameters decrease ENTER: Open/Select the current menu option... -
Page 5: Menu Guide
Menu Guide Menu Item Values Function Show A001 001-512 DMX Address Seting 06CH 6 / 8 / 11 / 72 Channel Select CC50 00-99 Color Jump Mode 11CH/72CH Ed50 00-99 Color Pulse Mode Er50 00-99 Colors Run Mode 1 Po50 00-99 Colors Run Mode 2 Tr50... -
Page 6: Dmx Values
DMX Values 6 channels mode Channel Value Function 0-255 Red dimming (from dark to bright) 0-255 Green dimming (from dark to bright) 0-255 Blue dimming (from dark to bright) 0-255 White dimming (from dark to bright) 0-255 Amber dimming (from dark to bright) 0-255 UV dimming (from dark to bright) 8 channels mode... - Page 7 11 channels mode Channel Value Function 0-255 Dimming 0-255 Strobe 0-25 Dimming 26-35 No function 36-45 Color jump 46-55 Gradient color change 56-65 Color select (controlled by ch. 1) 66-75 Color jump (controlled by ch. 1) 76-85 Pulse/gradient color change (controlled by ch. 1) 86-95 Show 1 w gradient color change 96-105...
- Page 8 72 channels mode Channel Value Function 0-255 Red1 dimming (from dark to bright) 0-255 Green1 dimming (from dark to bright) 0-255 Blue1 dimming (from dark to bright) 0-255 White1 dimming (from dark to bright) 0-255 Amber1 dimming (from dark to bright) 0-255 UV1 dimming (from dark to bright) 0-255...
-
Page 9: Infrared Remote (Ir) Control
Infrared Remote (IR) Control To use the IR remote, simply point the remote at the IR receiver on the lighting fixture. The IR receiver on the StageBar HEX 12 is located front panel with the LED lenses. Black Out Black Out mode instantly turns all LED’s off. - Page 10 Auto In Auto mode, the light loops through various preprogrammed colors. To turn on Auto mode, press the Auto button, then press (+) or (-) to increase or decrease the speed of the program. Strobe In Strobe mode, the light will flash at the desired rate. To turn on Strobe mode, press the Strobe button, then press (+) or (-) to increase or decrease the strobing rate.
-
Page 11: Setup & Connections
Setup & Connections ① Wired DMX Cable Connections Use a DMX to cable to connect to the in/out sockets on the bottom of the light for use with a cabled connection for DMX 512 control. WIRELESS WIRELESS WIRELESS MASTER MASTER MASTER SOUND SLAVE... -
Page 12: Technical Information
Technical Information • 12x10W RGBWA+UV 6-in1 LEDS • DMX Channel Modes: 6 / 8 / 11 / 72 channels • Control modes: DMX 512, Master /Slave, IR Remote, Sound to Dimmer, Stand Alone • 0-100% Dimmer • Lamp rated life: >50000 Hours •...
