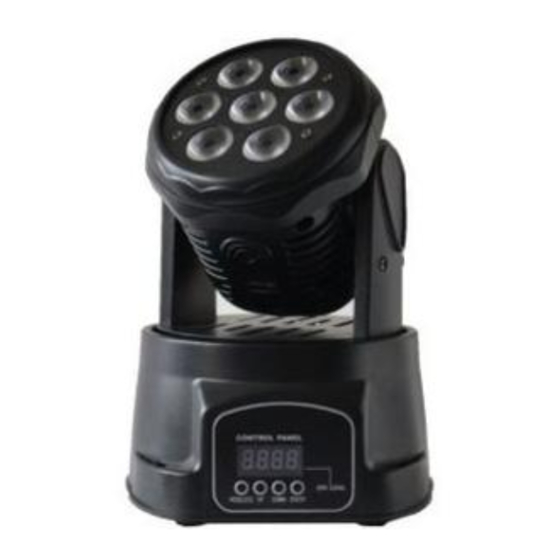

Mover MiniWash QUAD-W 7
CKU01-5020 (US) / CKE01-5020 (EU)
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MiniWash QUAD-W 7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ColorKey MiniWash QUAD-W 7

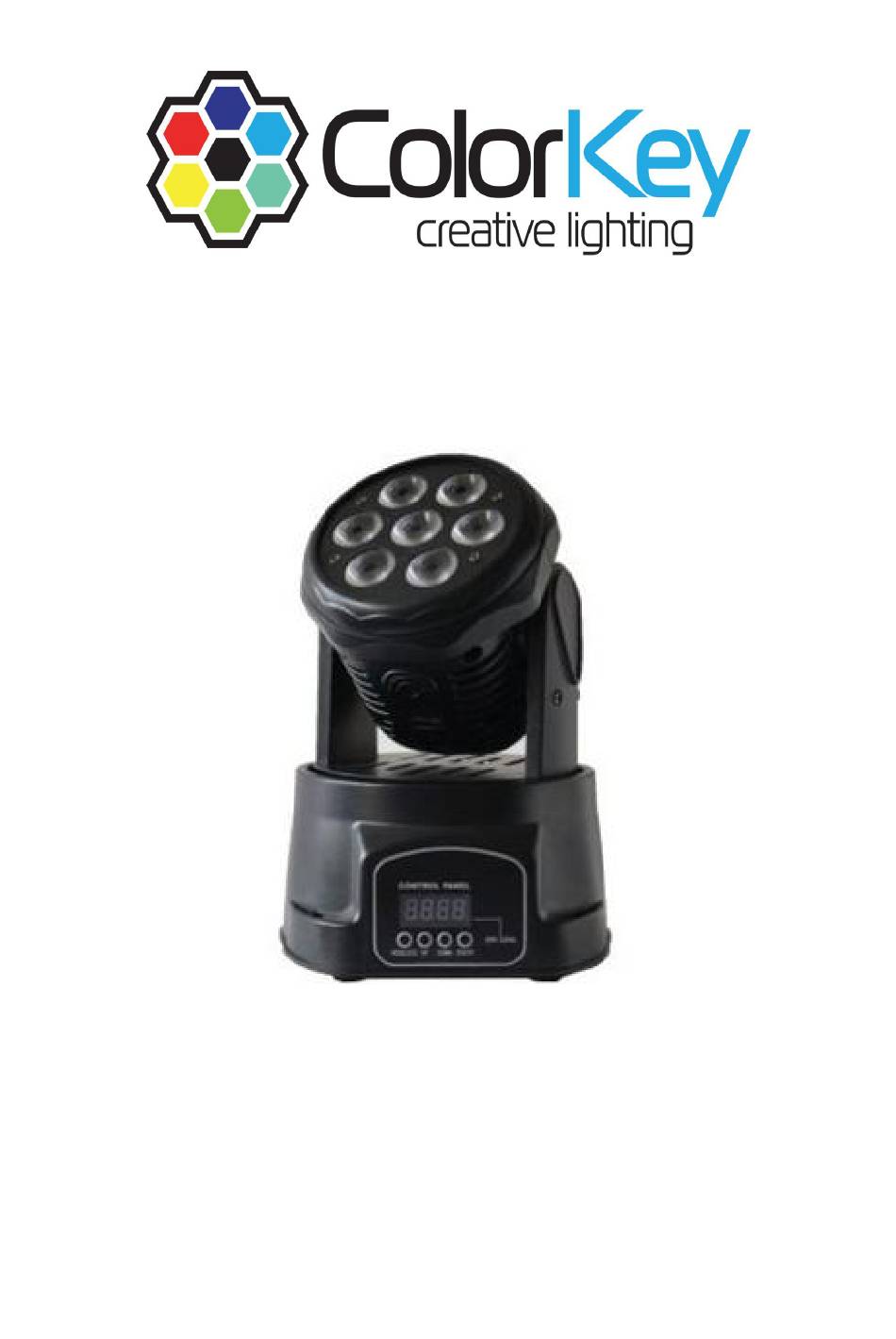

  • Page 1 Mover MiniWash QUAD-W 7 CKU01-5020 (US) / CKE01-5020 (EU) USER MANUAL...
  • Page 2 Introduction Thank you for purchasing the ColorKey Mover MicroBeam QUAD-W. Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse. Packing list  1x Mover MiniWash QUAD-W 7 moving head fixture ...
  • Page 3: Display Operation

    Display Operation  MENU: Access the menu/Scroll through menu options  ENTER: Open/Select the current menu option  UP: Scroll through menu selection or parameter increase  DOWN: Scroll through menu selection or parameters decrease...
  • Page 4: Dmx Values

    DMX Values 9 Channel mode Channel Value Function 0-255 0-255 Tilt Dimming and Strobe No effect 8-134 Master Dimming 135-239 Strobe from slow to fast 240-255 Open 0-255 Red color dimming 0-255 Green color dimming 0-255 Blue color dimming 0-255 White color dimming 0-255 Motor speed...
  • Page 5: Menu Guide

    Menu Guide d001 001-512 Console control MAFA FASt Master mode fast AUTO MStS Master mode voice active MStc Stand-alone mode SlAu Slave mode setting Master mode slow AUTO MASL-SLOU X-Motor Forward running rPAn X-motor Backward running Y motor Forward running rTiL Y motor Backward running Forward display...
  • Page 6: Dmx Connections

    DMX Connections  DMX Cable: The Mover MicroBeam QUAD-W can be controlled via DMX using a 3-pin XLR connection. The standard DMX connection is XLR is: one end connects to the male plug, and the other connects to the female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal Noted:In order to avoid failures and interference signal transmission,we connect a resistance120Ω...
  • Page 7: Master/Slave Mode Operation

    Master/Slave Mode Operation Master/Slave Master/Slave mode allows you to connect multiple units together using one (1) unit to control others in a chain. When a fixture is set to ‘Master Mode,’ this unit will always act as a controlling unit until it is switched out of ‘Master Mode’. The Master unit will send out signal via DMX to Slave units which will react in synchronization.
  • Page 8: Technical Information

    Pan: 540˚ Tilt: 270˚ IP rate: IP20 Notice to consumer: ColorKey offers a 1-year limited warranty. Please visit our website at www.ColorKeyLED.com to register your product. Please note: As we continue to work towards improving our products and your experience as a user, we recommend that you check our website periodically for updates to user manuals and specifications at www.ColorKeyLED.com or you may contact us directly at...

This manual is also suitable for:

Cku01-5020Cke01-5020
