ColorKey MicroPar HEX 7 User Manual

7x12w 6in1 leds (rgbaw-uv)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MicroPar HEX 7
7x12w 6in1 LEDs (RGBAW-UV)
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MicroPar HEX 7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ColorKey MicroPar HEX 7

Summary of Contents for ColorKey MicroPar HEX 7

  • Page 1 MicroPar HEX 7 7x12w 6in1 LEDs (RGBAW-UV) USER MANUAL...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ....................1 2. Safety ......................2 3. DMX Values & Function ................3 4. Display Operation ..................6 5. Menu Guide & Operation ................7 6. DMX Connections ..................11 7. Master/Slave Mode Operation ..............12 8.

  • Page 3: Introduction

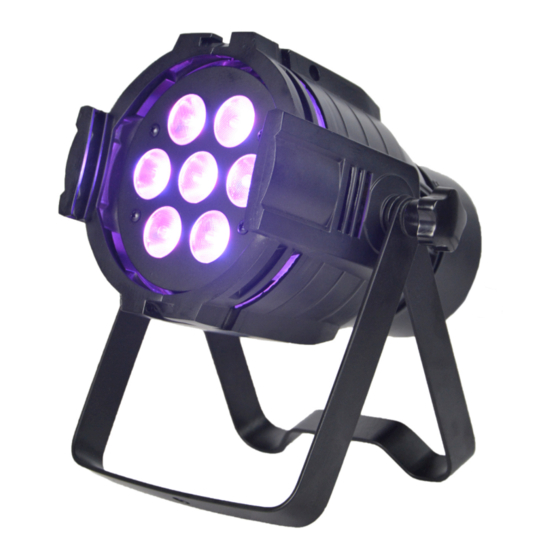

    Ø Product Introduction The ColorKey MicroPar Hex 7 uses a MicroPar cast aluminum housing and adopts 7 high-powered 6-in-1 LEDs. Each LED is made up of Red, Green, Blue, Amber, White and Ultraviolet LEDs.

  • Page 4: Safety

    Caution! Avoid direct eye exposure with the fixture when on. Ø Safety Instruction ● The MicroPar HEX 7 has an automatic voltage switch and will automatically detect voltage when connected to power. Please be sure to check voltage is within the range of this fixture’s specifications.

  • Page 5: Dmx Values & Function

    3. DMX Values & Function Ø DMX 3 Channel Mode Channel Value Function Notes 0-255 Static Color 0-255 0-100% 0-255 Master Dimmer Ø DMX 6 Channel Mode Channel Value Function Notes 0-255 0-100% Green 0-255 0-100% Blue 0-255 0-100% Amber 0-255 0-100% White...
  • Page 6 DMX 10 Channel Mode Ø Channel Value Function Notes Priority Master Dimmer 0-255 0-100% 0-255 0-100% Green 0-255 0-100% Blue 0-255 0-100% Amber 0-255 0-100% White 0-255 0-100% Ultraviolet (UV) 0-255 0-100% 0-14 Dimming 15-255 Strobe Speed 0-31 Not used Built-in Program Must use CH1, 2, 3, 32-63...
  • Page 7 Ø DMX 11 Channel Mode Channel Value Function Notes Priority 0-255 Master Dimmer 0-255 0-100% Green 0-255 0-100% Blue 0-255 0-100% Amber 0-255 0-100% White 0-255 0-100% Ultraviolet (UV) 0-255 0-100% 0-14 Dimming 15-255 Strobe Speed 0-31 Built-in Program Must use CH 1, 2, 3, 32-63 Dark to Bright 4, 5 and/or 6 to...

  • Page 8: Display Operation

    4. Display Operation Ø MENU: Access the menu/Scroll through menu options Ø ENTER: Open/Select the current menu option Ø UP: Scroll through menu selection or parameter increase Ø DOWN: Scroll through menu selection or parameters decrease...

  • Page 9: Menu Guide & Operation

    5. Menu Guide & Operation Addr d001-d512 DMX Mode DMX Channel CHnd 3CH/6CH/10CH/11CH Mode SLAU SL.AU Slave Mode Built-in Program SP-- SP00-SP15 Speed Pr-- Pr00-Pr67 Built-in Program MENU FAdE FA00-FA15 Color Fade White Strobe FLAS FL00-FL15 Mode rL-- r.000-r.255 Red Dimmer GL-- G.000-G.255 Green Dimmer...
  • Page 10 AL-- A.000-A.255 White Dimmer UL-- U.000-U.255 UV Dimmer SouA So.uA Sound Activated On/Off Display On/Off DMX Dimmer nodE nod0-nod4 Mode UErn UE2.0 Software Version r.000-r.255 G.000-G.255 b.000-b.255 White balance UtSt J.000-J.255 setting A.000-A.255 U.000-U.255 Uson/oFSEon/oFrEt...
  • Page 11 1．Operating instruction: To operate your unit in DMX mode, follow these steps: Ø Press MENU to activate display / return to ‘main menu’ screen. Ø Press UP/DOWN until “Addr” is displayed. Ø Press ENTER to proceed. Display will flash indicating you have entered edit mode. Ø...
  • Page 12 Ø Press UP / DOWN until “Pr- -“ is displayed. Ø Press ENTER to proceed. Display will flash indicating you have entered edit mode. Ø Press UP / DOWN until desired selection is displayed (see chart below “Pr- -“). Ø Press ENTER to save and store your selections. The screen will stop flashing indicating you have exited edit mode.

  • Page 13: Dmx Connections

    6. DMX Connections Ø DMX Cable： The MicroPar HEX 7 can be controlled via DMX using a 3-pin XLR connection. The standard DMX connection is XLR is: one end connects to the male plug, and the other connects to the female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal Noted：In order to avoid failures and interference signal transmission，we connect a...

  • Page 14: Master/Slave Mode Operation

    7. Master/Slave Mode Operation Master/Slave Master/Slave mode allows you to connect multiple units together using one (1) unit to control others in a chain. When a fixture is set to ‘Master Mode,’ this unit will always act as a controlling unit until it is switched out of ‘Master Mode’. The Master unit will send out signal via DMX to Slave units which will react in synchronization.

  • Page 15: Technical Information

    IP rated: IP20 Size: 140(D)*190(W)*240(H)mm Net Weight: 1.5KG Notice to consumer: ColorKey offers a 2-year limited warranty. Please visit our website at www.ColorKeyLED.com to register your product. Please note: As we continue to work towards improving our products and your experience as a user, we recommend that you check our website periodically for updates to user manuals and specifications at www.ColorKeyLED.com or you may contact us directly at...
