Tray Configurations

The RESOLVEX™ M10 96 provides the means to batch process solid phase extraction columns
in the 96-position format. The RESOLVEX™ M10 96 will accommodate both the integrated and
the modular SPE plates stacked onto a variety of collection plates. The modular SPE plate is a
® ®
CEREX Column Holder plus plug-in columns (Figure 1). Rimless CEREX 1cc columns have
®
been especially designed to fit into the 96-position footprint by insertion into the CEREX Column
Holder.
®
The re-usable CEREX Column Holder interfaces to several collection plates which are also in
the 96-position format. Depending upon the volume of the effluent, the appropriate collection tray
can be selected from the ancillary products available.
®
The CEREX Column Holder is keyed to the collection plates so that sample position is preserved
®
throughout the SPE sequence. Both the CEREX Column Holder and collection plates are keyed
to match so that when they are correctly aligned, the assembly sits level on the slide tray platform.
® ®

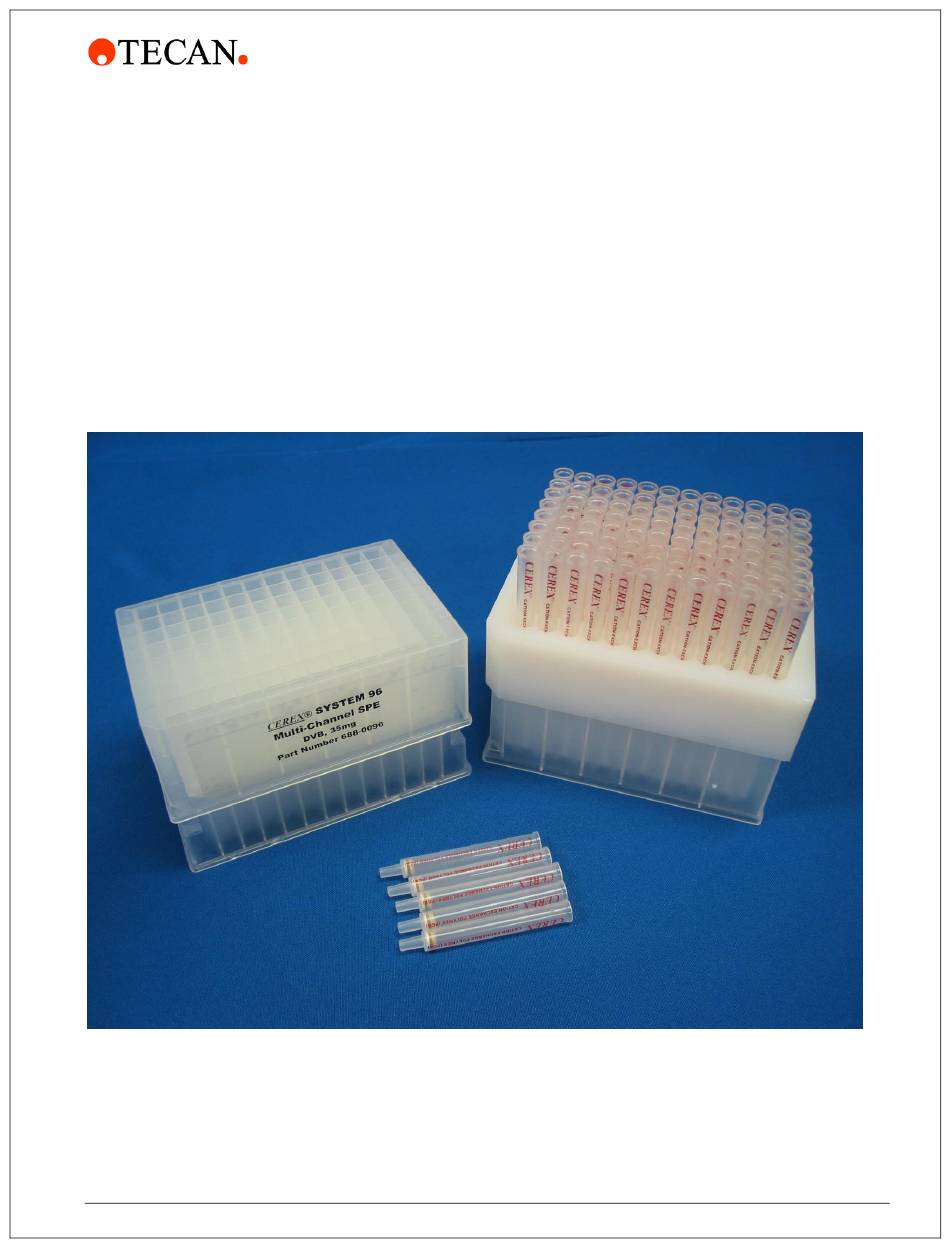

Figure 1. Integrated CEREX plate and collection plate assembly (left), Modular CEREX SPE plate and collection
®
plate assembly (right), Rimless CEREX 1cc columns (center)
