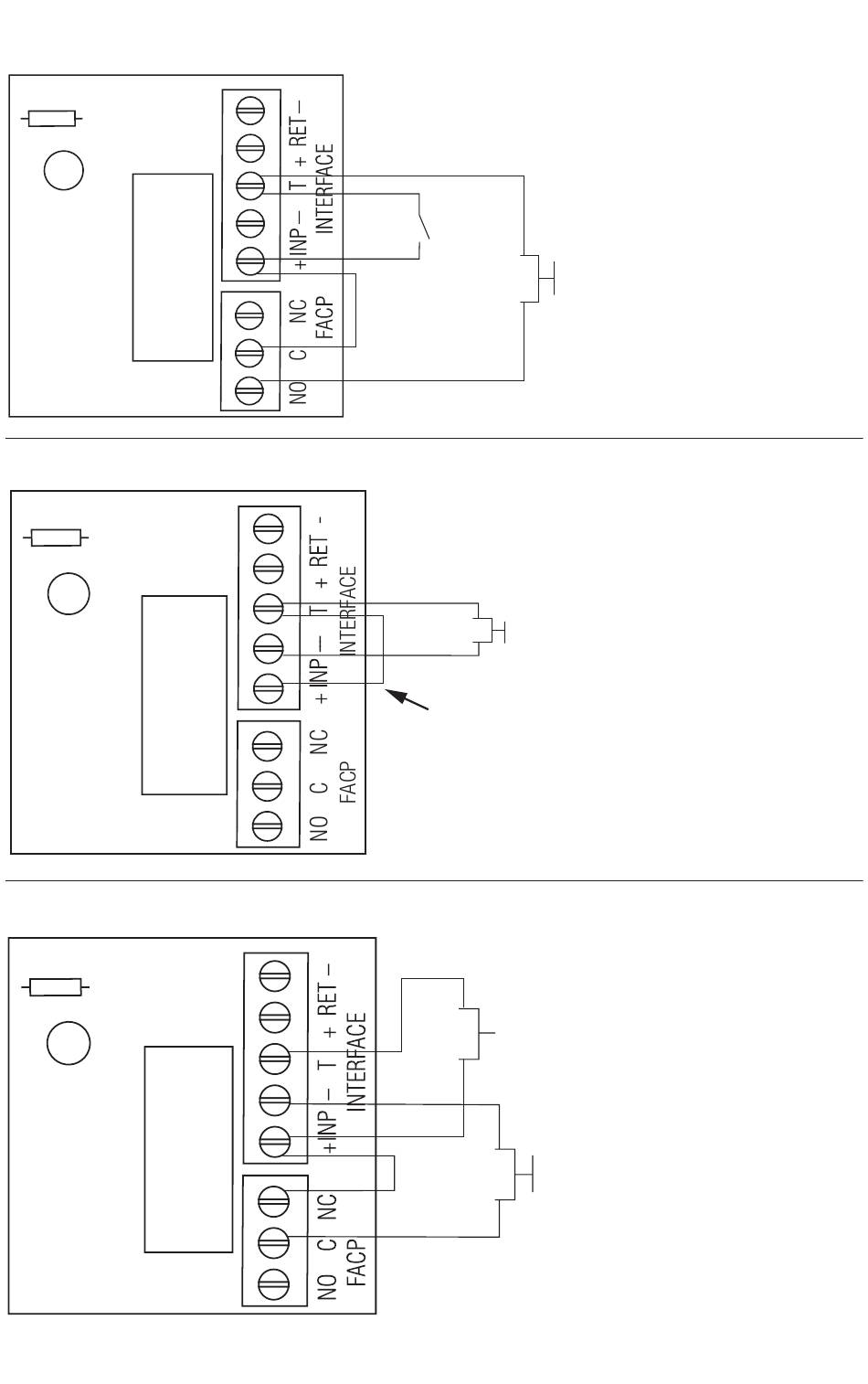

FACP/Optional Power Supply Hook-up Diagrams (cont'd):
Fig. 13
Normally Open FACP Latching trigger input with reset:
FACP
TRG
Fig. 14
Normally Closed - Non-Latching FACP trigger input:
FACP
TRG
Fig. 15
Normally Closed - Latching FACP trigger input with reset:
FACP
TRG
- 18 -
N.O.
TRIGGER
INPUT
JUMPER
N.C. DRY
TRIGGER
INPUT
JUMPER
N.C. RESET
SWITCH
JUMPER
N.C. RESET
SWITCH
N.C. TRIGGER
INPUT
Maximal11/33/55/75/77 (Fused) Series Installation Guide
