Maximal77 Battery Hookup And Tamper Switch Installation - Altronix Maximal Series Installation Manual

Dual power supply
Hide thumbs Also See for Maximal Series:

Advertisement

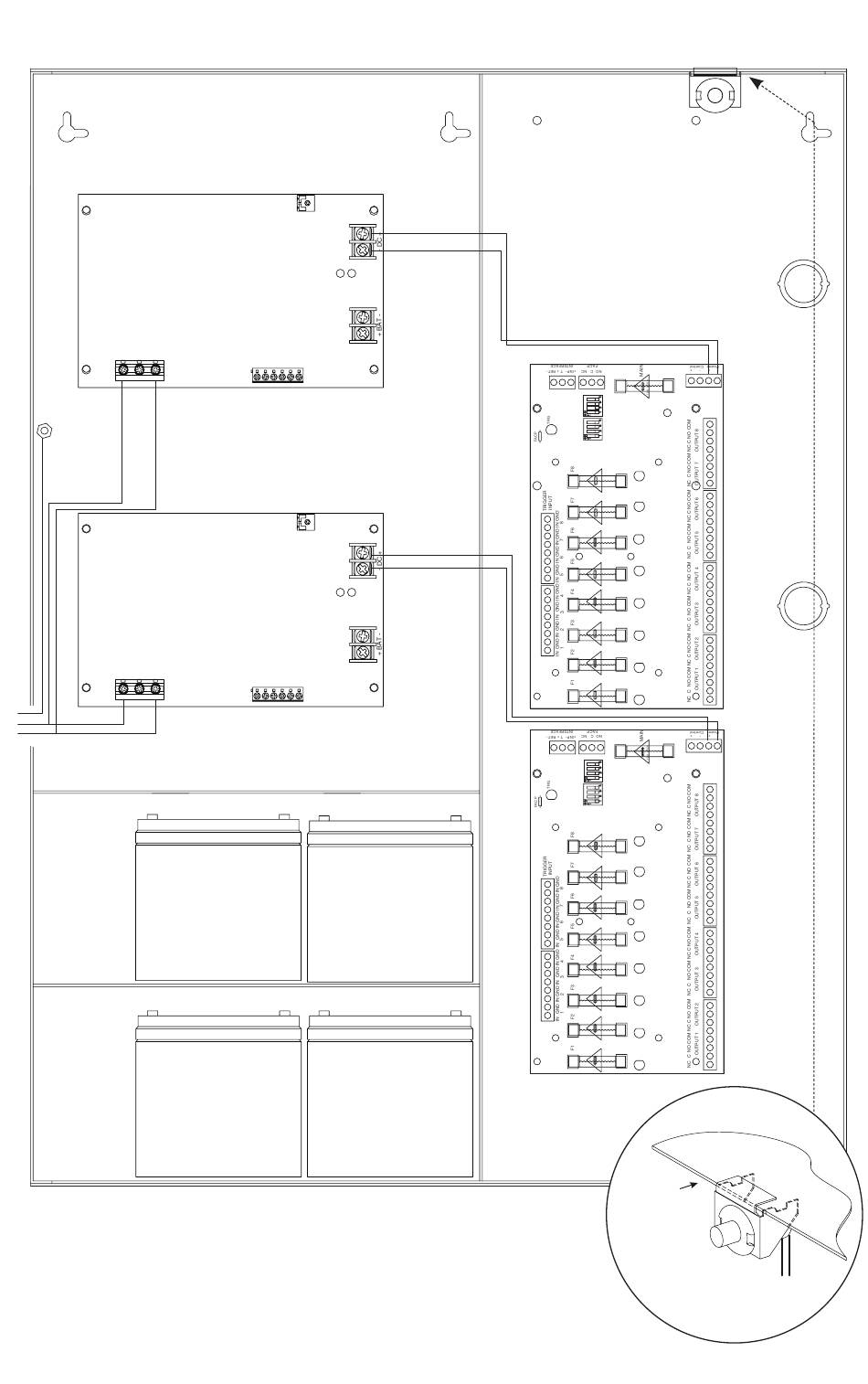

Fig. 5 - Maximal77
Power Supply
L
G
N
Line
Neutral
Earth
Ground
Power Supply
L
G
N
Line
Input 1150VAC 60Hz
Optional 12VDC
Rechargeable
Stand-by Battery*
*24VDC operation: Connect two (2) 12VDC batteries in series.
Optional 12VDC
Rechargeable
Stand-by Battery*
Keep power-limited wiring separate from
non power-limited. Use minimum 0.25" spacing.
Up to four (4) 12AH rechargeable batteries are
the largest batteries that can fit in this enclosure.
An external battery enclosure must be used
if using the 40AH or 65AH batteries.
- 12 -
Board
BAT FAIL NC C NO NC C NO AC FAIL
Board
BAT FAIL NC C NO NC C NO AC FAIL
Neutral
Optional 12VDC
Stand-by Battery*
Optional 12VDC
Stand-by Battery*
AC
DC
AC
DC
Rechargeable
Rechargeable
Tamper Switch
Fig. 5a
Edge of
Enclosure
Tamper Switch
(provided)
To Access Control Panel or
UL Listed Reporting Device
Maximal11/33/55/75/77 (Fused) Series Installation Guide
